Description

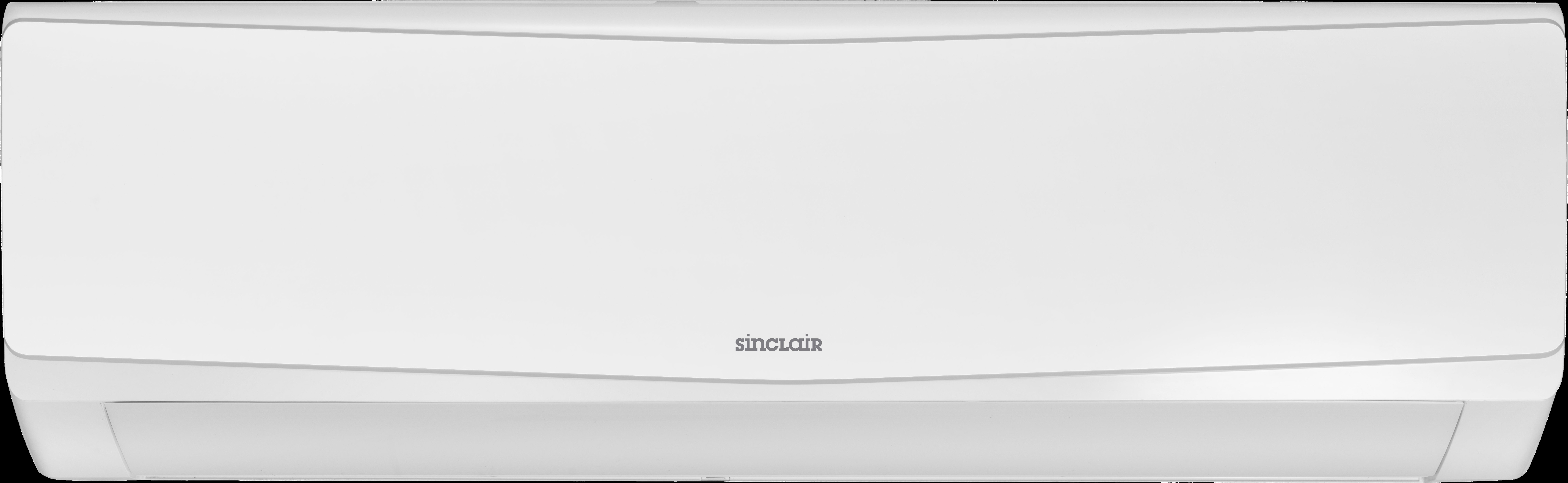

Hi-Wall Inverter 24000 BTU R32 Evaporator
Contact us for more information
Hi-Wall Inverter 24000 BTU R32 Evaporator
Product number:
SIH24BIK
| Product Group : | Sinclair Highwall - Indoor |
|---|
| Air Flow : | 1100 m³/h |
|---|---|
| Air Flow (Low/Medium/High) : | 1100/950/750/650 m³/h |
| Air Volume : | 1100 m³/h |
| Annual Power Consumption : | 319/1645 kWh |
| COP : | 4 |
| Colour : | White |
| Communication Cable : | 4 x 0.75 (5m included) |
| Condensate Drain Out Connection : | 16 mm |
| Condensate Water Pump Provided : | No |
| Cooling Capacity : | 6.2 kW |
| Cooling Capacity (Min/Max) : | 1.8/6.4 kW |
| Cooling Capacity (Min/Rated/Max) : | 1.8/6.2/6.4 kW |
| Current (Cooling) : | 7.9 A |
| Current (Heating) : | 7.3 A |
| Dehumidification : | 1.8 L/h |
| Depth : | 248 mm |
| Depth (IU) : | 248 mm |
| EER : | 6.8 |
| Energy Label (Cooling) : | A++ |
| Energy Label (Heating) : | A+++/A+ |
| GWP : | 675 |
| Gross Weight : | 19.5 kg |
| Heating Capacity : | 6.5 kW |
| Heating Capacity (Min/Rated/Max) : | 1.6/6.5/6.6 kW |
| Heating Capacity Min/Max : | 1.6/6.6 kW |
| Height : | 325 mm |
| Height (IU) : | 325 mm |
| Indoor/ Outdoor/ Other : | Indoor |
| Input (Cooling) : | 1771 W |
| Input (Heating) : | 1646 W |
| Max Current : | 9.7 A |
| Max Height Difference : | 10 m |
| Max Pipe Length Without Additional Refrigerant : | 5 m |
| Max Piping Length : | 25 m |
| Max Power Input : | 2200 W |
| Min Piping Length : | 3 m |
| Model Number : | 053011000004360 |
| Moisture Removal Volume : | 1.8 L/h |
| Net Weight : | 16.5 kg |
| P Design Heating Capacity (Average) : | 4.7 kW |
| Packaging Depth : | 334 mm |
| Packaging Height : | 407 mm |
| Packaging Width : | 1137 mm |
| Pipe Diameter Gas Side : | 12 mm |
| Pipe Diameter Liquid Side : | 6 mm |
| Power Input (Heating/Cooling) : | 1646/1771 kW |
| Pre-Equipped Wifi : | Yes |
| Pre Equiped Wifi : | Yes |
| Product Group : | Sinclair Highwall - Indoor |
| R32 Cooling Capacity Max : | 6.4 kW |
| R32 Cooling Capacity Min : | 1.8 kW |
| R32 Cooling Capacity Rated : | 6.2 kW |
| R32 Energy Label Cooling : | A++ |
| R32 Energy Label Heating : | A+ |
| R32 Heating Capacity Max : | 6.6 kW |
| R32 Heating Capacity Min : | 1.6 kW |
| R32 Heating Capacity Rated : | 6.5 kW |
| R32 Heating Capacity Rated -7°C : | 5.85 kW |
| R32 Pdesignc : | 6.2 kW |
| R32 Power Input Rated Cooling : | 1.77 kW |
| R32 Power Input Rated Heating : | 1.65 kW |
| R32 Qce - Annual Energy Consumption Cooling : | 1645 kWh/an |
| R32 Qce - Annual Energy Consumption Heating : | 1645 kWh/an |
| R32 SCOP : | 4 |
| R32 SEER : | 6.8 |
| Recommended Fuse : | 13(16) |
| Recommended Power Cable : | 3 x 1.5 |
| Refrigerant : | R32 |
| Refrigerant Pipe Size : | 1/4-1/2 in, 6-12 mm |
| Remote Control : | YAA1FB6 (WiFi) included |
| Remote Control Provided : | Yes |
| SCOP : | 5.1/4.0/- |
| SEER : | 6.8 |
| Single Split / Multi Split : | Single split |
| Sound Power Level : | 61 dB(A) |
| Sound Pressure Level : | 48 dB(A) |
| Sound Pressure Level (Low/Medium/High/Quiet) : | 40/44/48/35 dB(A) |
| Total Pipe Length Range : | 25 m |
| Type : | Hi-Wall Inverter Evaporator |
| Voltage : | 230 V |
| Width : | 1081 mm |
| Width (IU) : | 1081 mm |
| File name | Extension | Size |
|---|---|---|
| Installation Manual | 2.99 MB | |
| Brochures | 14.74 MB | |
| Energy Label | png | 217.44 KB |
| Conformity Declaration | 317.13 KB | |
| Owners Manual | 2.78 MB |
