Description

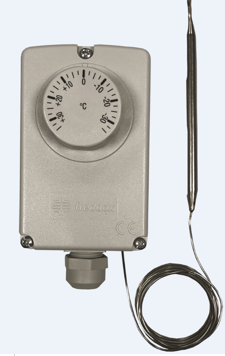

Freddox Capillary Thermostat -35 / +35 1500mm
Contact us for more information
Freddox Capillary Thermostat -35 / +35 1500mm
Product number:
FTS6202
| Product Group : | Freddox Thermostats |
|---|
| Ambient Temperature : | 80 °C |
|---|---|
| Capillary : | Stainless steel |
| Capillary Tube Length : | 1500 mm |
| Contact Function : | SPDT |
| Contact Rating AC1 : | 15 A, 250 V |
| Contact Rating AC15 : | 2.5 A, 250 V |
| Enclosure Rating : | I |
| Height : | 72 mm |
| IP Class : | IP40 |
| Length : | 111 mm |
| Model Number : | FDX035HC150 |
| Net Weight : | 0.16 kg |
| Product Group : | Freddox Thermostats |
| Rated Impulse Voltage : | 4 kV |
| Sensor Length : | 215 mm |
| Sensor Size : | 6 x 215 mm |
| Switching Capacity : | C-1 15(2,5)A@250Vac / C-2 2,5(0,4)A@250Vac |
| Temperature Range : | -35 / +35 °C |
| Type : | CAPILLARY THERMOSTAT |
| Used For : | external temperature adjustment |
| Weight : | 0.17 kg |
| Width : | 53.5 mm |
