Description

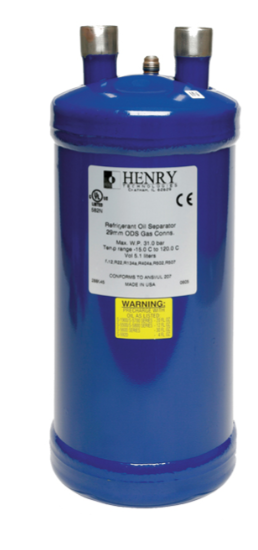

1 5/8" Henry Oil Seperator Conventional Non-Serviceable S-5692
Contact us for more information
1 5/8" Henry Oil Seperator Conventional Non-Serviceable S-5692
Product number:
RID1120A
| Product Group : | Oil Separators Alco A-WZ |
|---|
General Information
| Product Group : | Oil Separators Alco A-WZ |
|---|---|
| Model Number : | S-5692 |
Condensate Pumps
| Max Flow Rate : | 23.8 m³/h |
|---|
Connections
| Connection Size : | 1 5/8 in |
|---|---|
| Connection Type : | ODF |
Measurements
| Diameter : | 152 mm |
|---|---|
| Height : | 473 mm |
| Weight : | 10 kg |
Mounting
| Mounting Details : | M10 |
|---|
Oil
| Oil Charge : | 0.9 dm³ |
|---|---|
| Pre-Charged Oil Qty : | 0.9 L |
Pressure
| Max Operating Pressure : | 31 Bar |
|---|---|
| Min Operating Pressure : | 0 Bar |
R134A Performances
| R134a Capacity -10°C : | 63.6 kW |
|---|---|
| R134a Cooling Capacity Rated -40 °C : | 58.6 kW |
| R134a Cooling Capacity Rated 5°C : | 66.1 kW |
R404A Performances
| R404A Cooling Capacity Rated -40 °C : | 53.2 kW |
|---|---|
| R404A Cooling Capacity Rated 5 °C : | 68.8 kW |
R407F Performances
| R407F Capacity -10°C : | 69.4 kW |
|---|
R507 Performances
| R404A/R507 Capacity -10°C : | 63.6 kW |
|---|
Standards
| CE Cat : | Cat II |
|---|
Temperature
| Evaporating Temperature R134a -40°C : | 37.5 °C |
|---|---|
| Evaporating Temperature R134a 5°C : | 4.9 °C |
| Evaporating Temperature R404A/507 -40°C : | 53.2 °C |
| Evaporating Temperature R404A/507 5°C : | 68.8 °C |
| Evaporating Temperature R407C -40°C : | 54.4 °C |
| Evaporating Temperature R407C 5°C : | 65 °C |
| Operating Temperature Range : | -10-130 °C |
| Temperature Range : | -10-130 °C |
Valves
| Flow : | 23.8 m³/h |
|---|
