Description
ICM 25A Functionmodule
Contact us for more information

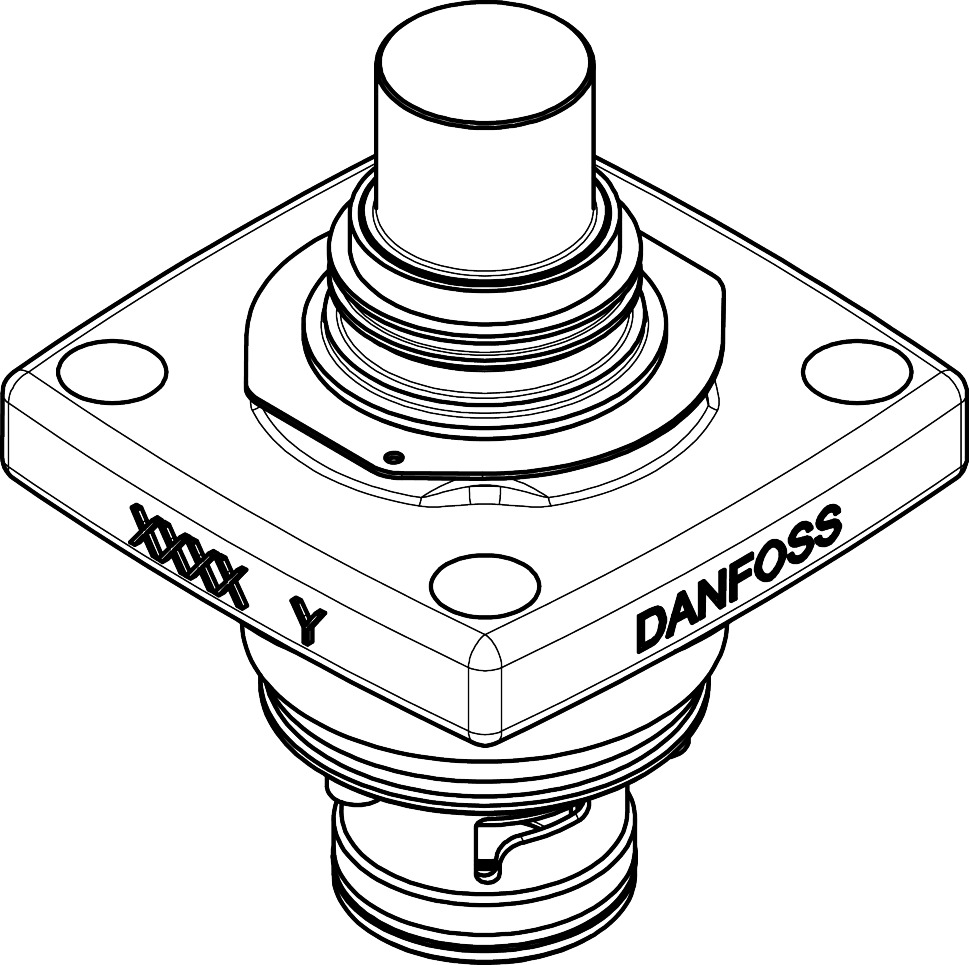

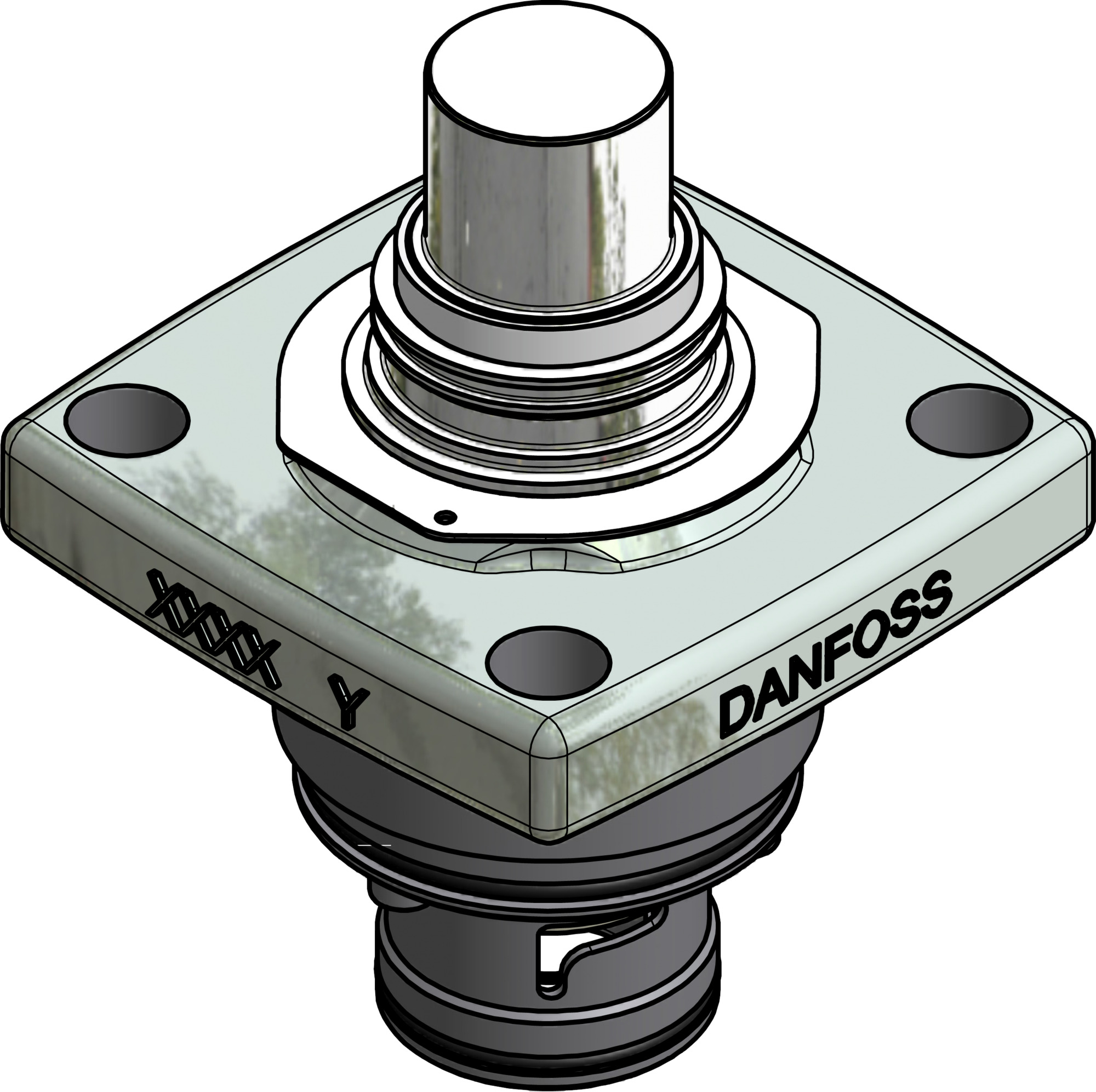

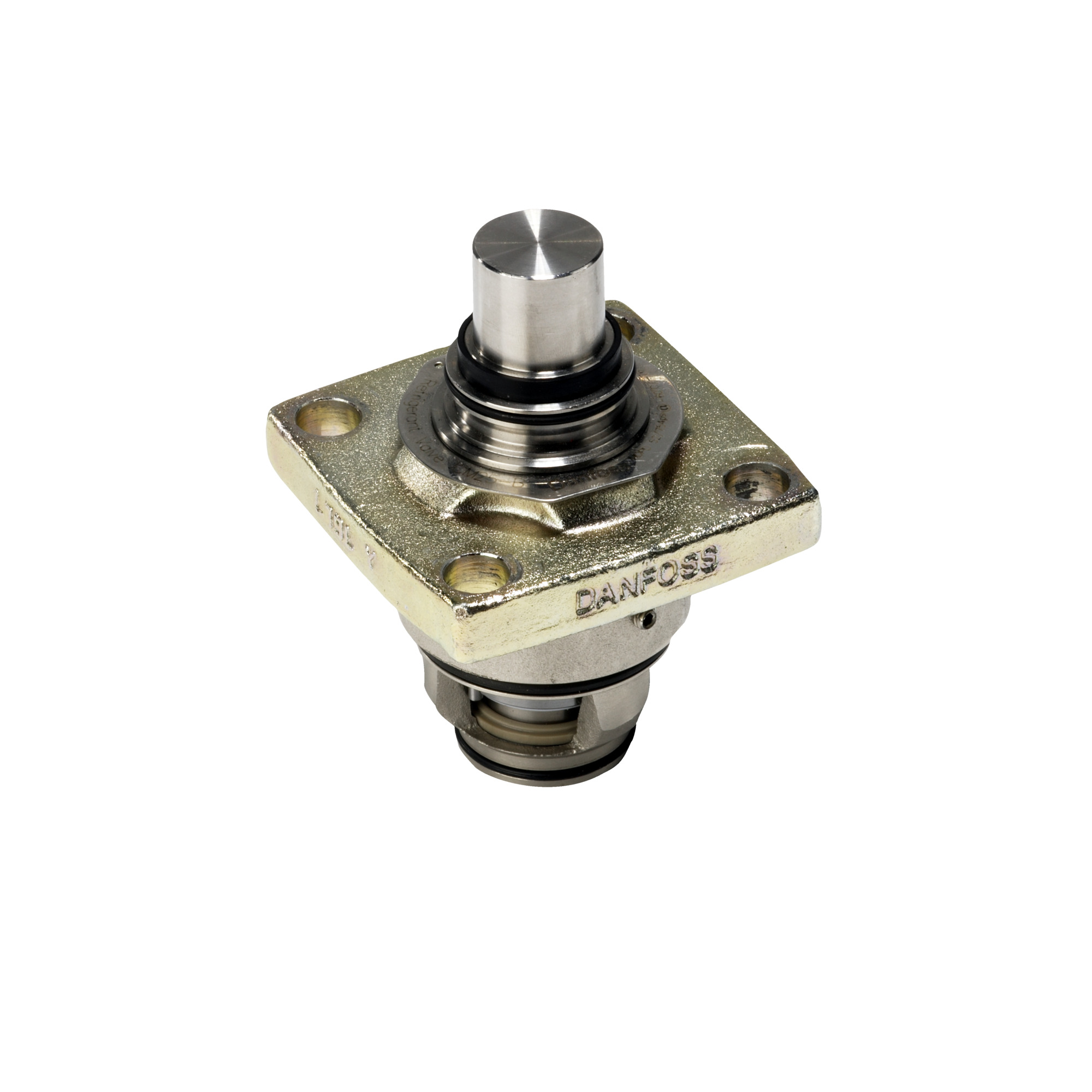

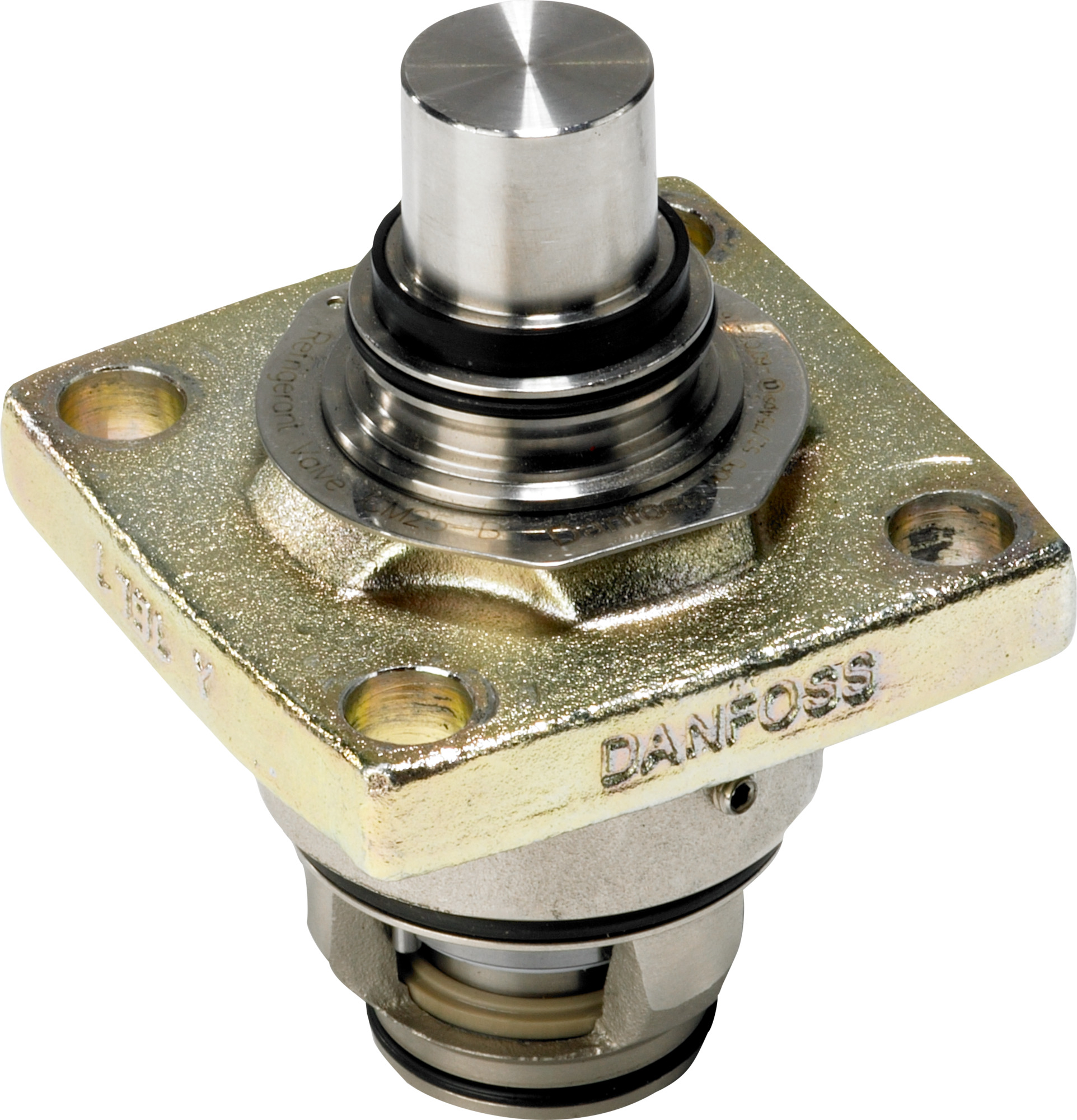

Function module, ICM 25-A, Steel
Product number:
RDB9214
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|---|

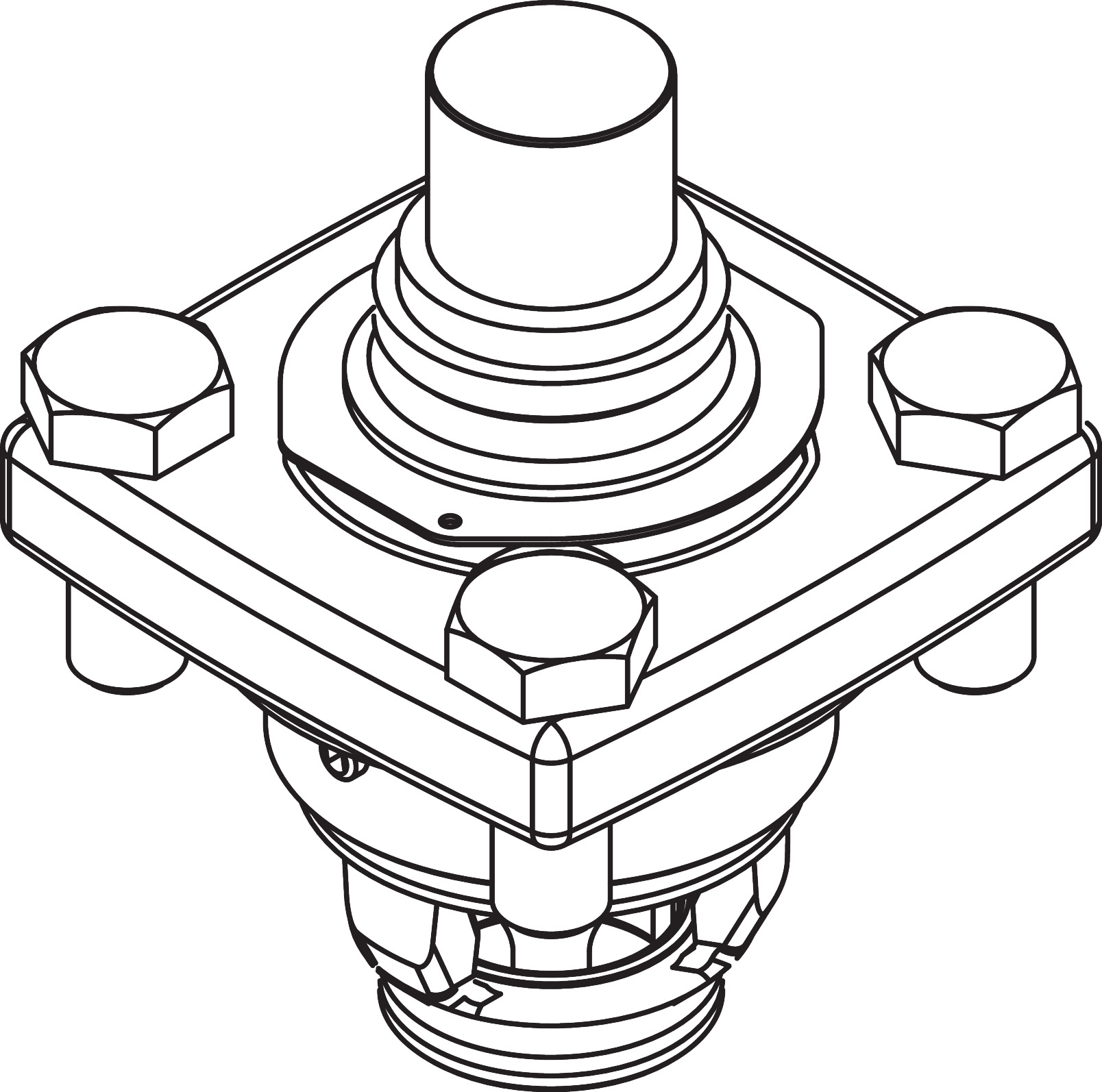

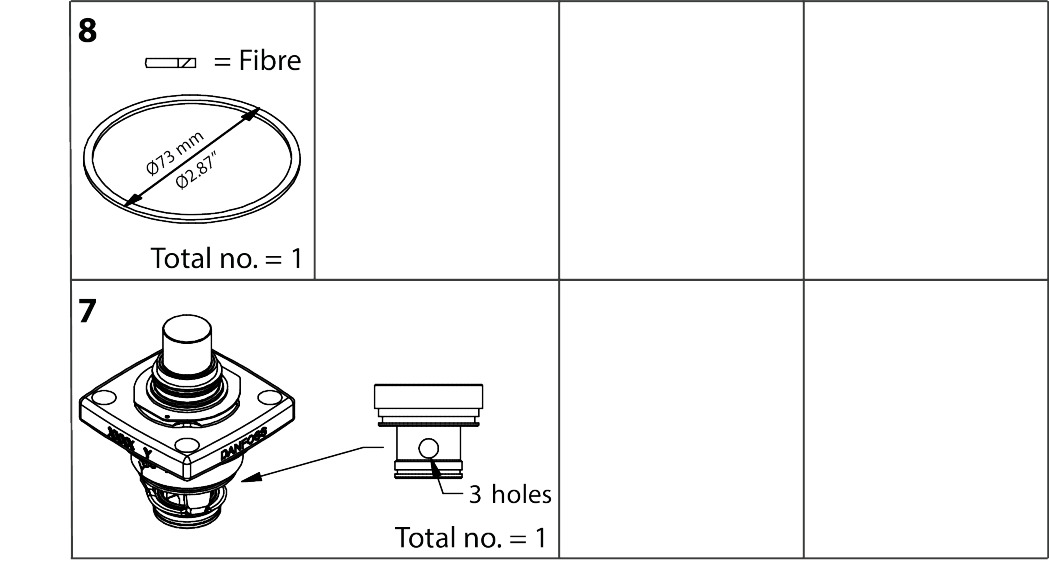

| Parts Included : | Bolts/O-ring, Seat/O-ring |
| Type : | ICM 25-A |
| Used For : | ICV 25 |
Additional Info
| Family : | ICM |
|---|
Kv Values
| Kv Value : | 6.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84819000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428237635 |
| Gross Weight : | 1.82 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Weight : | 1.79 kg |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Valves
| CV Value : | 7.000 gal/min |
|---|---|
| Valve Operation : | Motor operated |
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 3.5 MB | |
| Installation Manual | 256.26 KB | |
| Technical Literature | 7.99 MB | |
| Technical Literature | 20.35 MB |
