Description

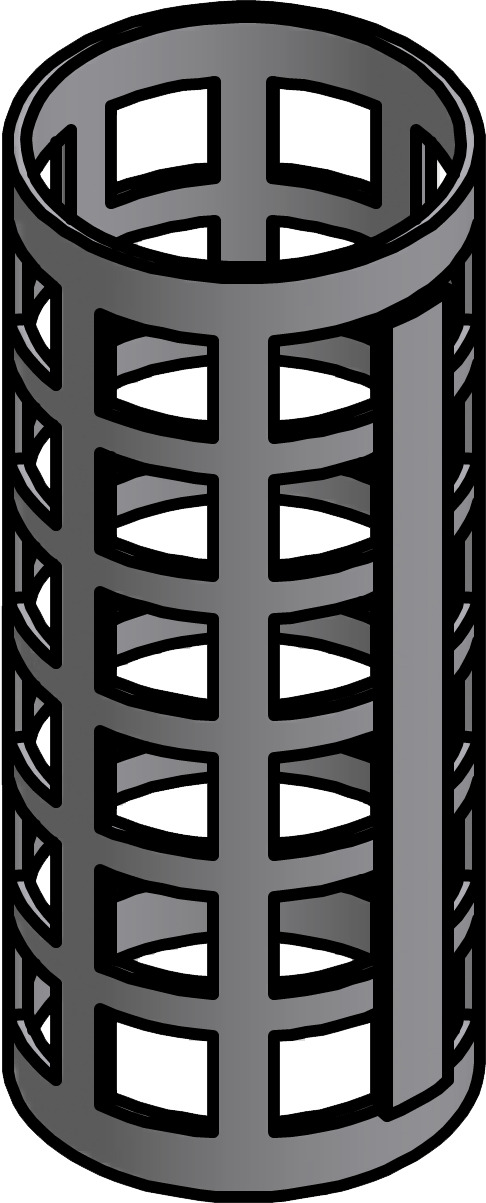

FIA-INS 25-40 100my FILTER ELEMENT
Contact us for more information
148H3123 MALLA FIA 25-40 VFLEX
Product number:
RDB2090
| Product Group : | Danfoss Strainers |
|---|
General Information
| Product Group : | Danfoss Strainers |
|---|---|
| Type : | FIA INS |
| Used For : | FIA 25, FIA 32, FIA 40, FIA SS 25, FIA SS 32, FIA SS 40, ICFF 25, ICFF 32, ICFF 40 |
| Weave Fineness : | 100 µm, 150 Mesh |
Driers
| Free Space : | 35.0 % |
|---|---|
| Screen Area : | 11.0 in², 71 cm² |
| Wire Thickness : | 0.003 in, 0.068 mm |
Filters
| Filter Version : | Standard version |
|---|
Logistical Information
| Commodity Code : | 84219990 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702428191012 |
| Gross Weight : | 0.052 kg |
Measurements
| Weight : | 0.04 kg |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
