Description
ICAD 600A Actuator
Contact us for more information

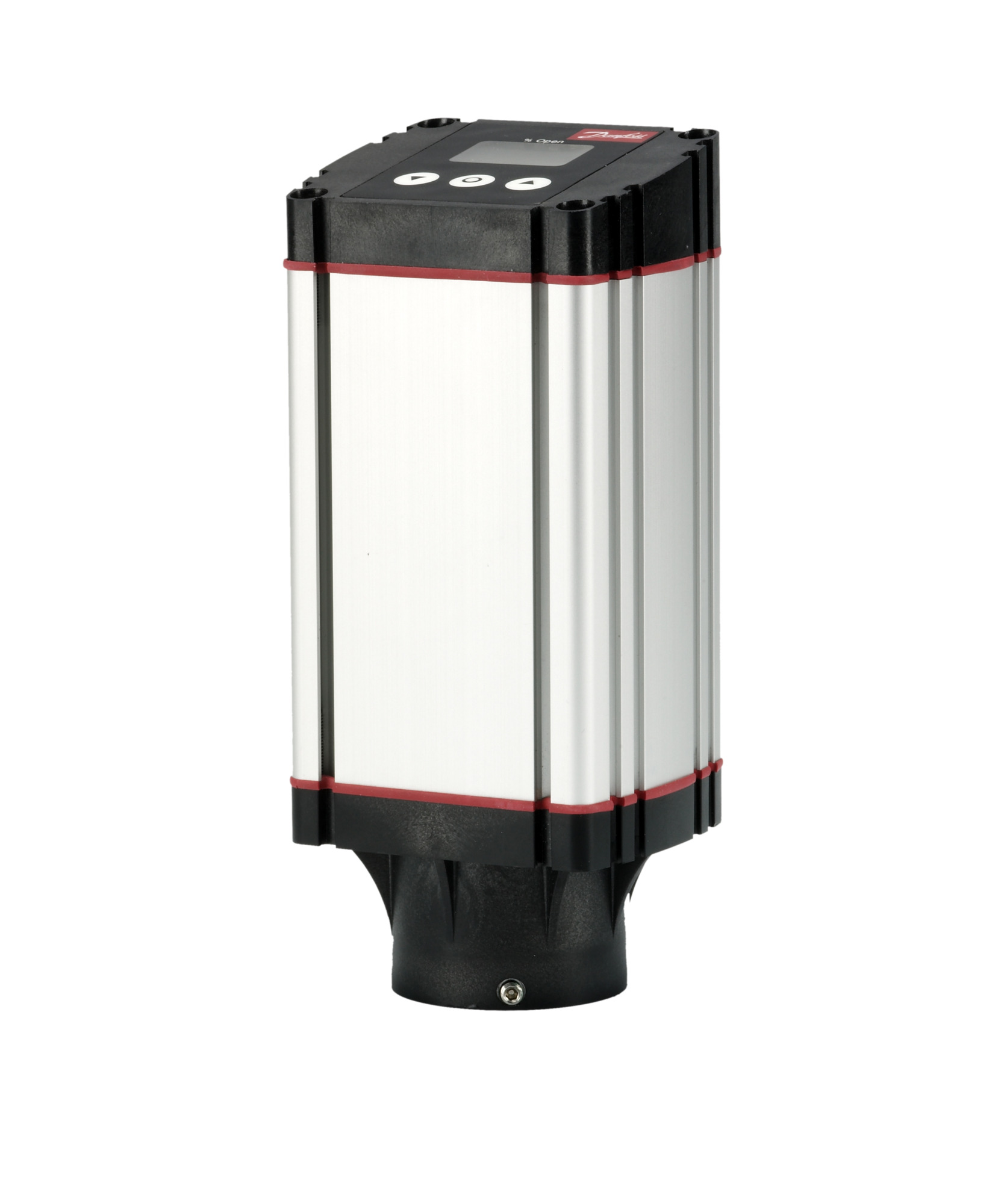

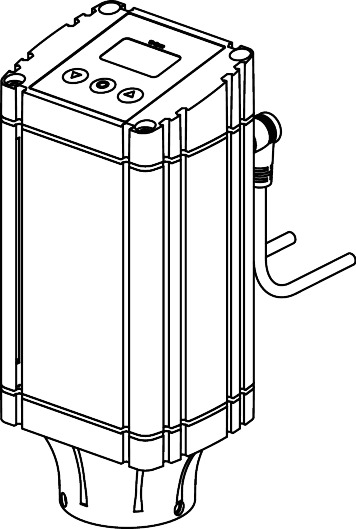

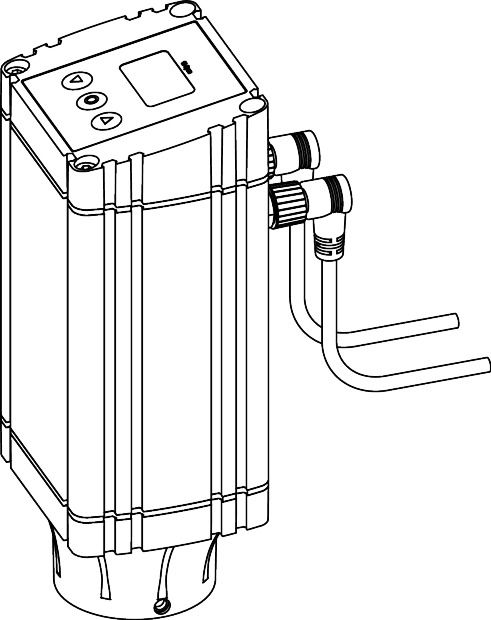

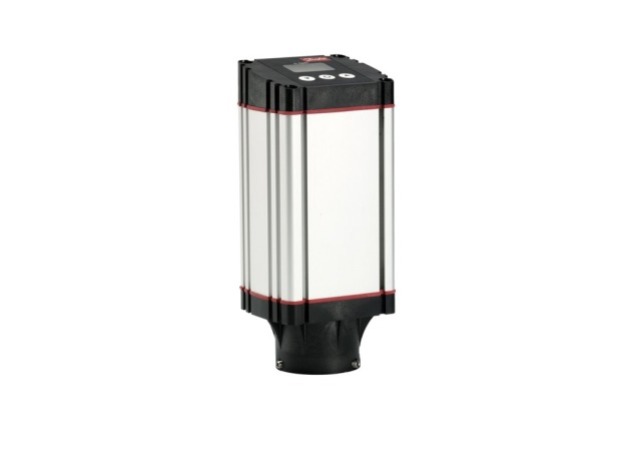

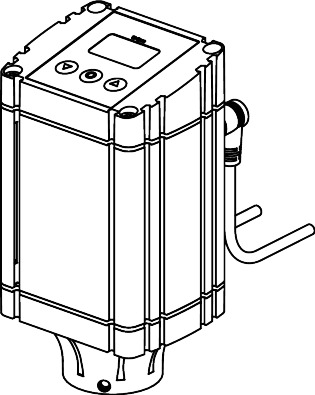

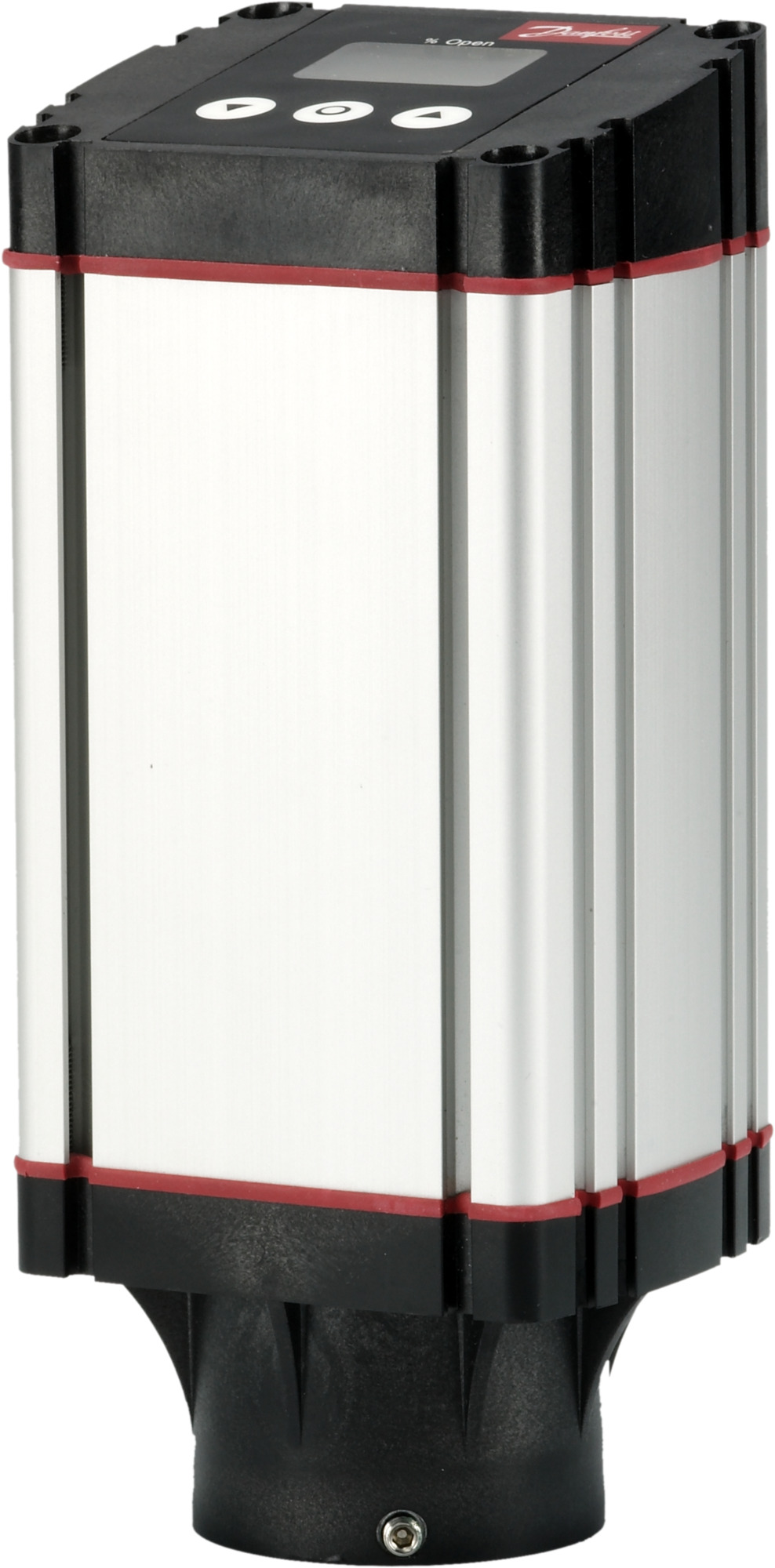

Actuator, ICAD 600A
Danfoss
Product number:
RDB9203
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|---|
| Model Number : | 027H9075 |
| Type : | ICAD 600A |

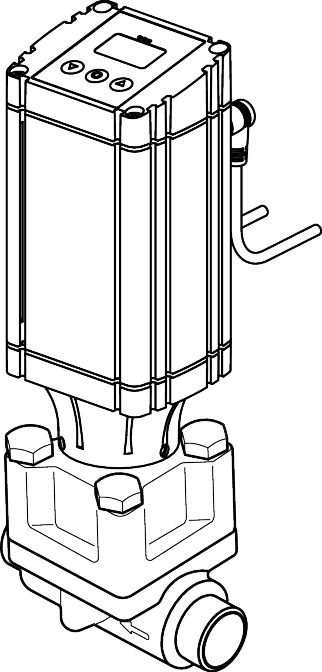

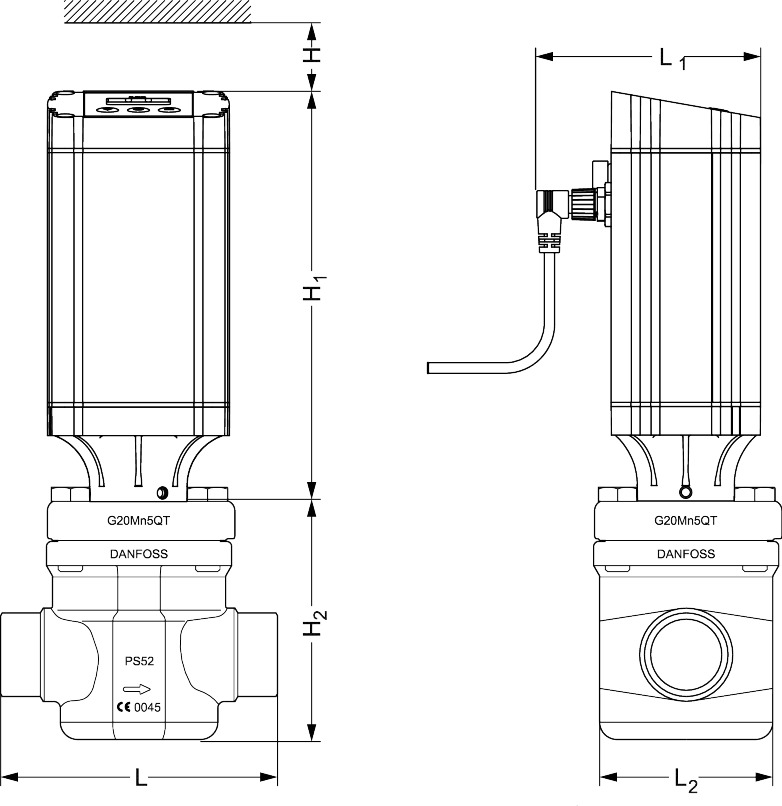

| Used For : | ICM 20; ICM 25; ICM 32 |
Additional Info
| Additional Info : | Digital Output: NPN Transistor |
|---|---|
| Family : | ICM |
Cable
| Cable Length : | 1.50 m, 60.00 in |
|---|
Electrical
| IP Class : | IP67 |
|---|
Inputs/Outputs
| Digital Outputs (DO) : | 3 pc |
|---|
Logistical Information
| Commodity Code : | 85011099 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428904957 |
| Gross Weight : | 1.836 kg |
Measurements
| Weight : | 1.38 kg |
|---|
Standards
| Approval : | CE, CRN, EAC, LLC CDC TYSK, UKCA, UL |
|---|
Temperature
| Ambient Temperature Range : | -30-50 °C |
|---|---|
| Temperature Range : | -30-50 °C |
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 3.5 MB | |
| Installation Manual | 411.56 KB | |
| Installation Manual | 1.38 MB | |
| Installation Manual | 2.48 MB |
