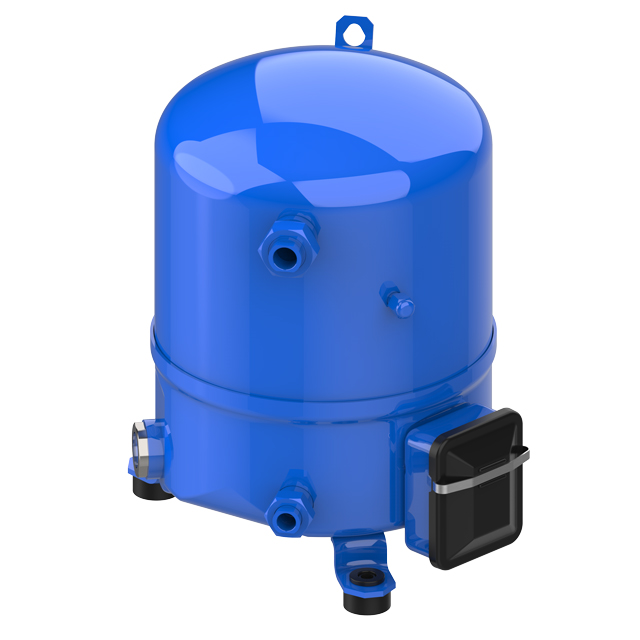

NTZ68A4LR1B DANFOSS 120F0230

Product number: RDM4028

PLEASE LOGIN TO SEE PRICES

Other available options:

Product Group :	NTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz

Capacity Control :	Fixed speed
Colour :	Blue
Commodity Code :	84143081
Connection Type :	Rotolock
Country Of Origin :	FRA
Diameter :	224 mm
Discharge Connection Height :	68 mm
Discharge Connection Pipe Size :	1/2 in
Discharge Connection Size :	1 in
Discharge Line Connection :	1 in
EAN :	5702428521208
Family :	NTZ
Frequency :	50 Hz
Gross Weight :	26.125 kg
Height :	333 mm
Higher Active Pressure :	28.5 Bar
IP Class :	IP55
LRA :	25 A
Length :	224 mm
Lower Active Pressure :	22.6 Bar
MCC :	8.4 A
Max Refrigerant Charge :	2.50 kg
Model Number :	NTZ068A4LR1B
Net Weight :	22 kg
Number Of Cylinders :	1
Oil Charge :	0.95 L
Oil Equalization :	3/8'' flare SAE
Oil Type :	175PZ
Phase :	3
Power Supply :	380-400/3/50 - 460/3/60 V/Ph/Hz
Power Supply Compressor :	400/3/50 460/3/60 V/Ph/Hz
Product Group :	NTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz
RLA :	6.0 A
Refrigerant :	R404A, R452A, R454C, R455A
Refrigerant Charge :	2.5 kg
Rotolock Discharge Line Connection :	1 in
Rotolock Suction Connection :	1 1/4 in
Suction Connection Height :	263 mm
Suction Connection Pipe Size :	5/8 in
Suction Connection Size :	1 1/4 in
Swept Volume :	68.00 cm³
Technique :	Reciprocating
Type :	NTZ
Voltage :	400/460 V
Weight :	22.00 kg
Width :	224 mm

Description

NTZ068-4B
