Description
ICS1 65 65 ANSI
Contact us for more information

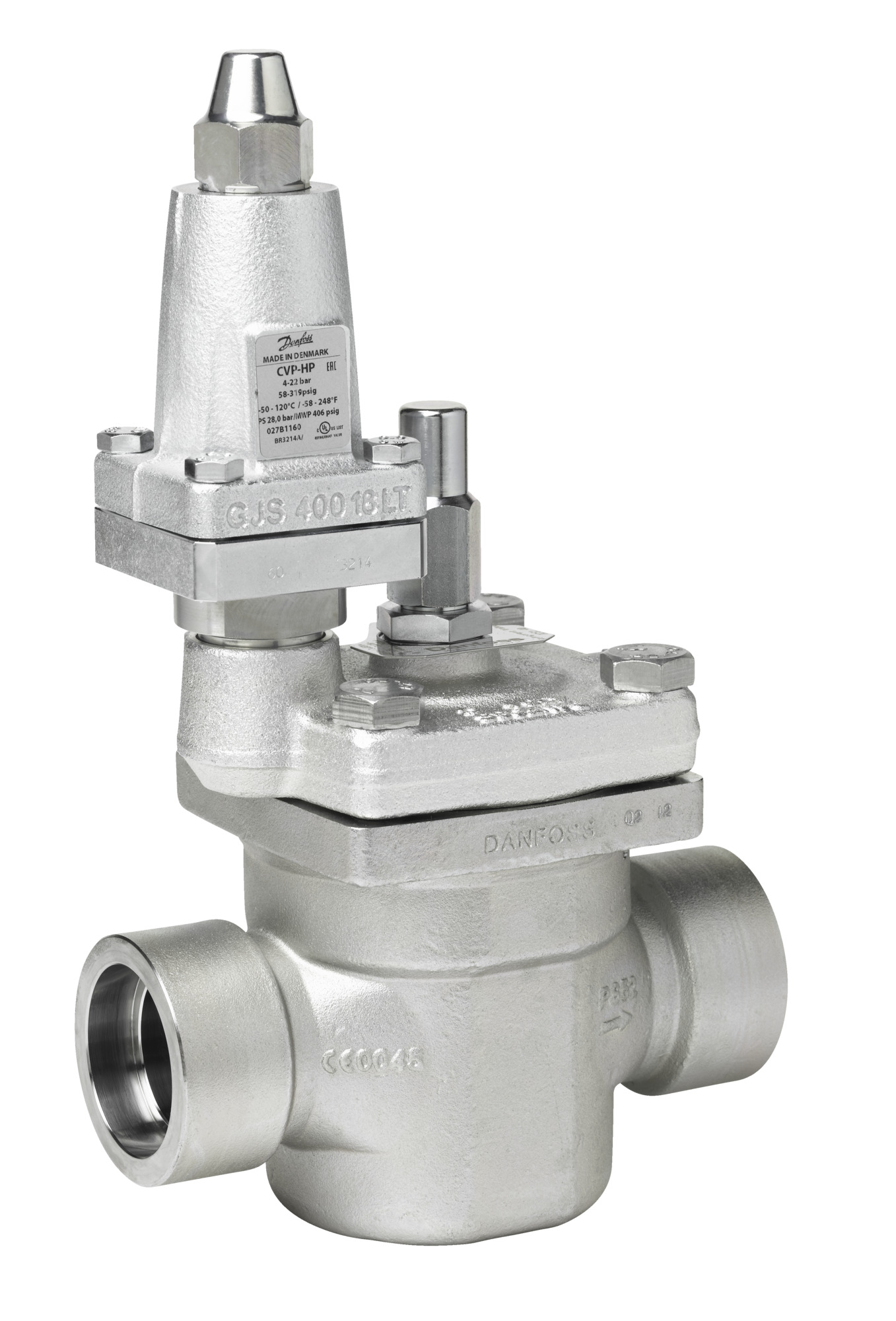

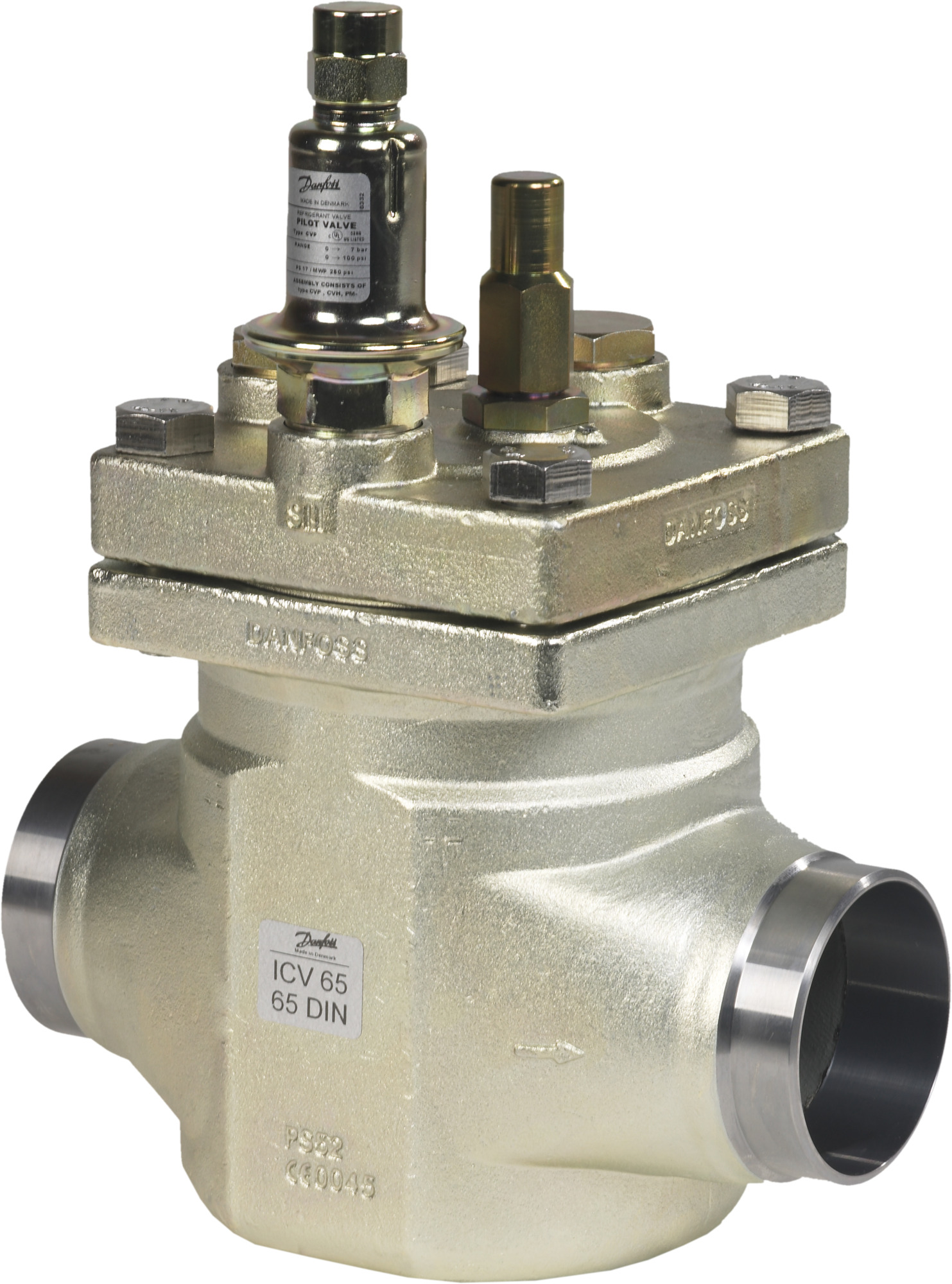

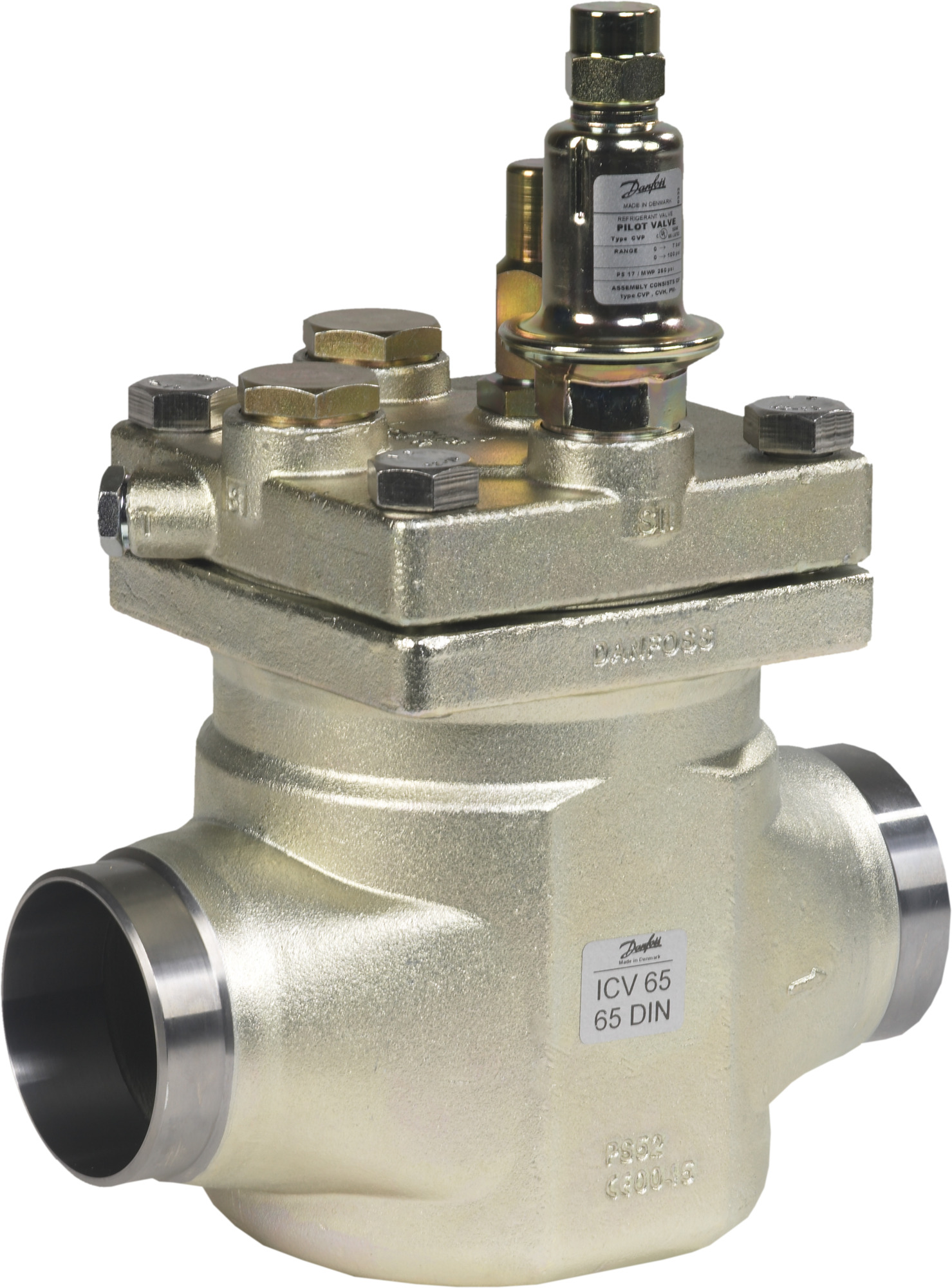

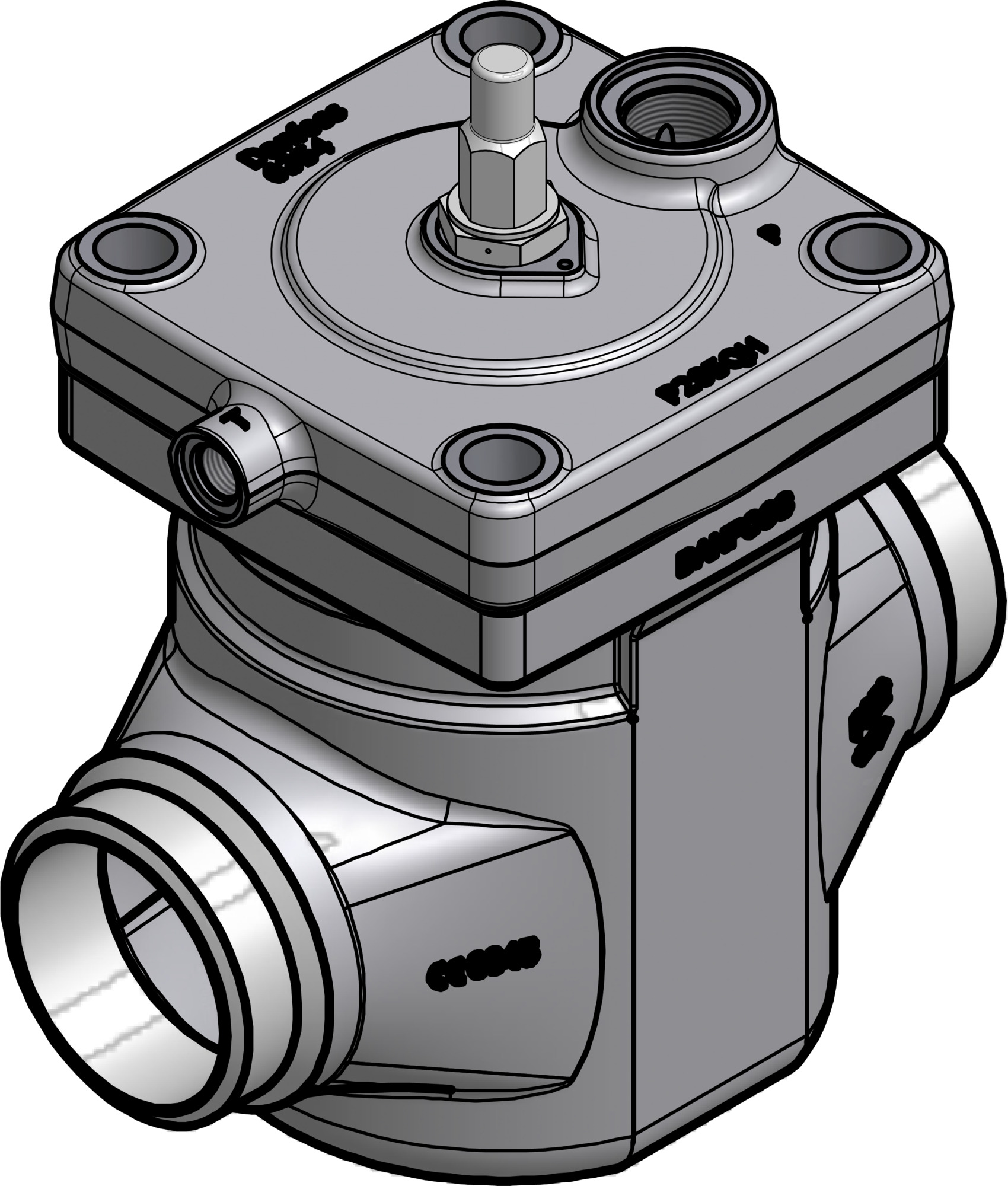

Pilot operated servo valve
Product number:
RDB4042
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
Additional Info
| Additional Info : | Coils not included |
|---|---|
| Family : | ICS; ICS + CVC; ICS + CVP; ICS + CVPP; ICS + EVM; ICS ext |
Connections
| Inlet Connection Size : | 2 1/2 in, 65.0 mm |
|---|---|
| Inlet Type : | Butt weld |
| Outlet Connection Size : | 2 1/2 in, 65.0 mm |
| Outlet Type : | Butt weld |
Kv Values
| Kv Value : | 70.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818073 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428235501 |
| Gross Weight : | 15.42 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
| Surface Coating : | Zn (TLP) |
Measurements
| Weight : | 14.67 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, TÜV, UL |
|---|
Temperature
| Temperature Range : | -60-120 °C |
|---|
Valves
| CV Value : | 81.200 gal/min |
|---|---|
| Direction : | Straightway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 |
| Opening Configuration : | Closed (delta p=0 Bar); Full open (delta p≥0.2 Bar); PropOpen (delta p=0.07-0.2Bar) |
| Valve Operation : | Pilot operated |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 301.63 KB | |
| Technical Literature | 8.73 MB | |
| Brochures | 4.62 MB | |
| Conformity Declaration | 315.47 KB | |
| Brochures | 1.11 MB | |
| Brochures | 482.3 KB |
Spare Part
