Description

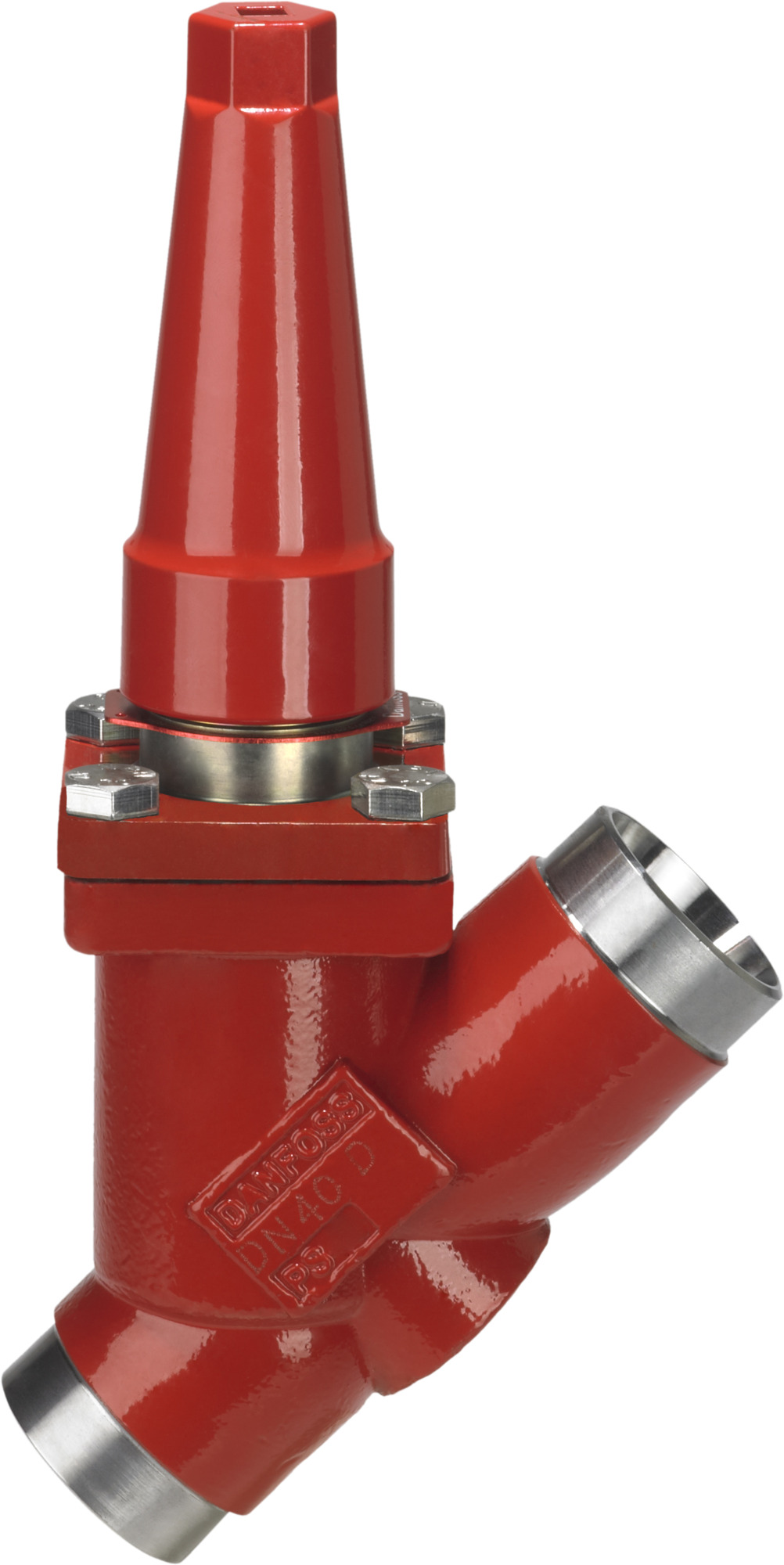

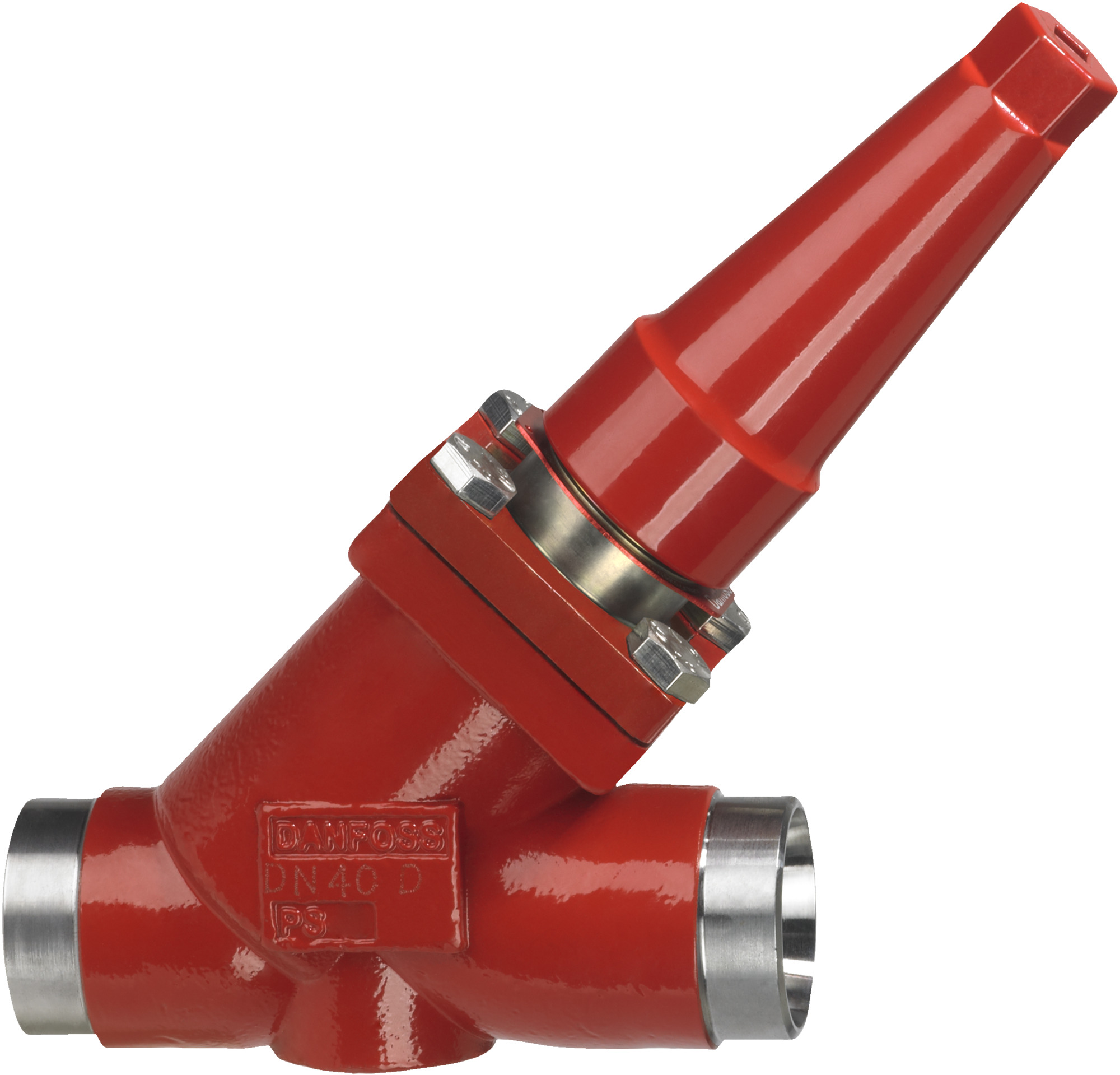

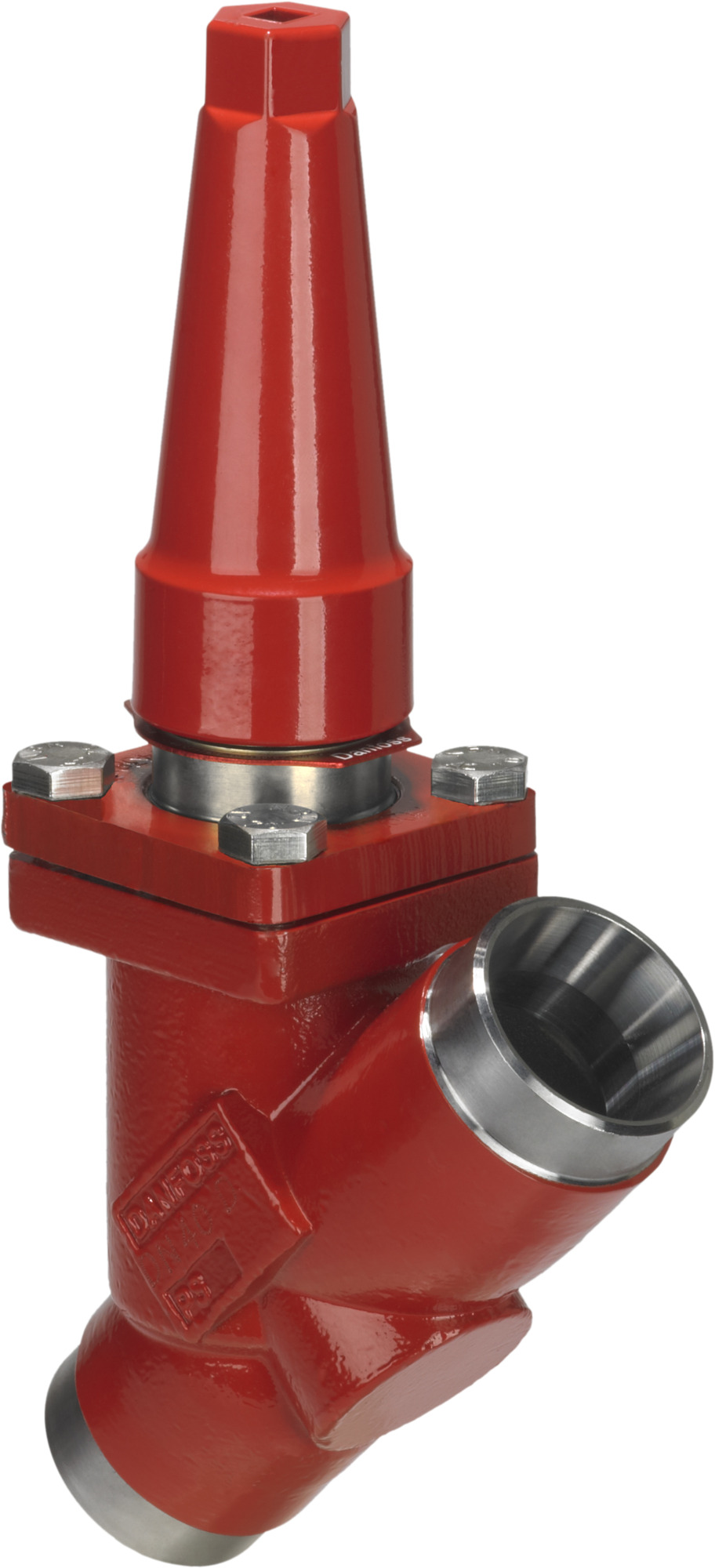

Shut-off valve SVA-S 15 Steel
Product number:
RDB2295
| Product Group : | Danfoss Shut-off & Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Shut-off & Regulating Valves |
|---|---|
| Model Number : | 148B5231 |
Connections
| Inlet Connection Size : | 1/2 in, 15.0 mm |
|---|---|
| Outlet Connection Size : | 1/2 in, 15.0 mm |
Kv Values
| Kv Value : | 4.9 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818099 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428467209 |
| Gross Weight : | 2.236 kg |
Material
| Body Material : | Steel |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R508B, R512A, R513A, R513B, R516A, R600, R717, R744, R1150, R1234yf, R1234ze, R1270, R1336mzz(Z), RE170 |
|---|
Standards
| Approval : | EAC, LLC CDC Tysk |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| CV Value : | 5.7 gal/min |
|---|
