Description

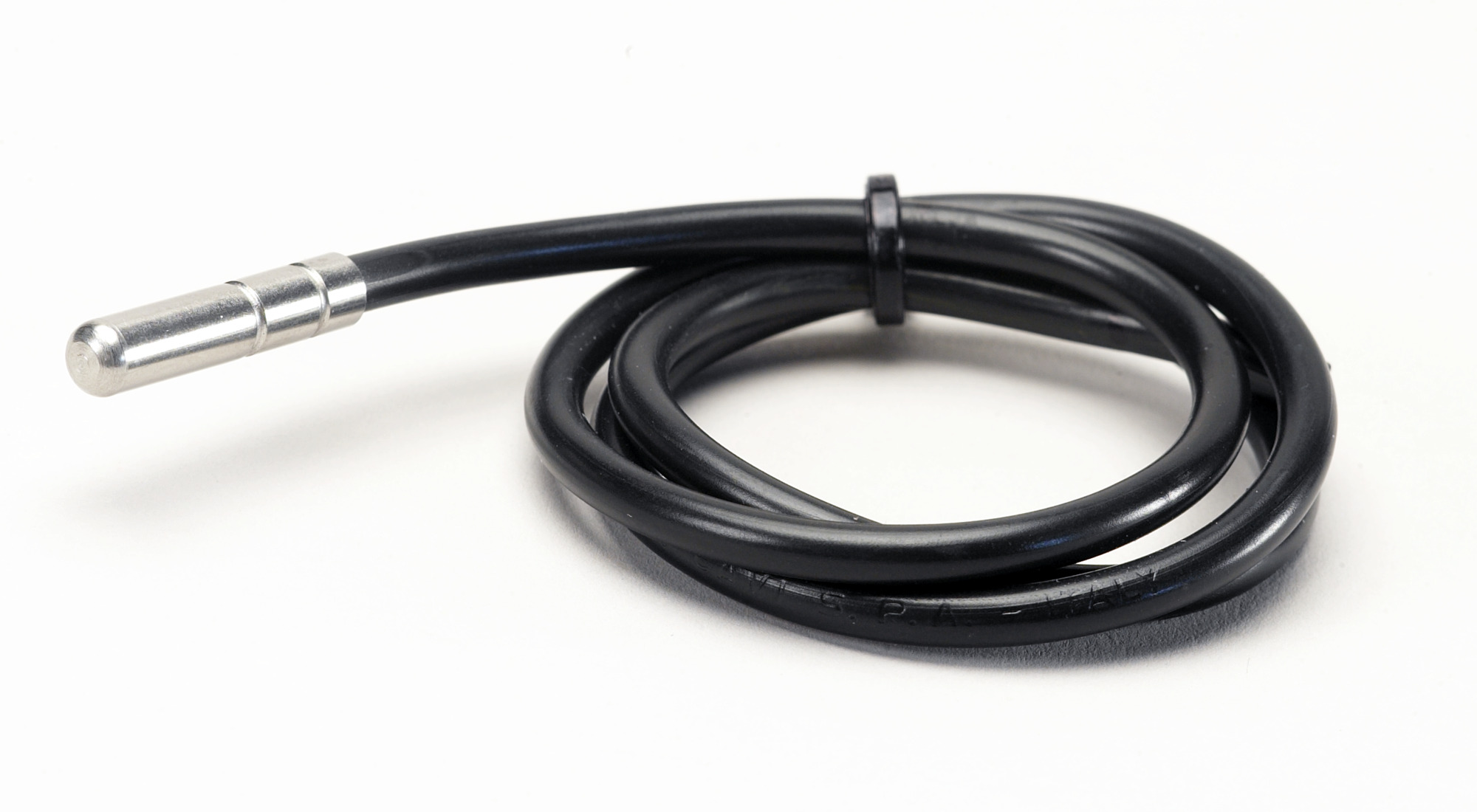

Temperature Sensor, EKS 111, 1.50 m, PTC, 1000 Ohm
Contact us for more information
Temperature Sensor, EKS 111, 1.50 m, PTC, 1000 Ohm
Product number:
RDN2018
| Product Group : | Danfoss Controllers |
|---|
General Information
| Product Group : | Danfoss Controllers |
|---|---|
| Measuring Range : | -55-150 °C |
Additional Info
| Family : | EKS |
|---|
Cable
| Cable Length : | 1.50 m, 59.06 in |
|---|---|
| Cable Temperature Range : | -30-80 °C |
Electrical
| Electric Connection : | CABLE WITH PINS |
|---|---|
| IP Class : | IP67 |
Logistical Information
| Commodity Code : | 90251900 |
|---|---|
| Country Of Origin : | ITA |
| EAN : | 5702428077408 |
| Gross Weight : | 0.044 kg |
Measurements
| Weight : | 0.04 kg |
|---|
Sensors

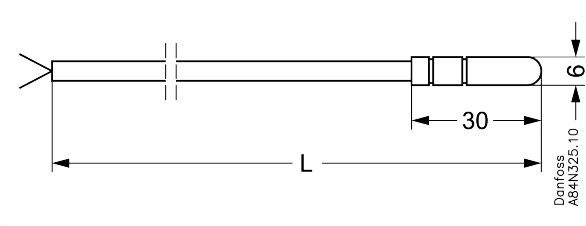

| Protection Tube Diameter : | 0.24 in, 6.0 mm |
|---|---|
| Protection Tube Length : | 1.18 in, 30.0 mm |
| Protection Tube Material : | Stainless Steel |
| Sensor Element Resistance : | 1000 Ohm |
| Sensor Element Tolerance : | ± 1% |
| Sensor Element Type : | PTC |
| Sensor Insert : | Fixed |
Temperature
| Max Ambient Temperature : | 80 °C |
|---|
