Description
ICS/L 50 Top cover 3 pilots
Contact us for more information

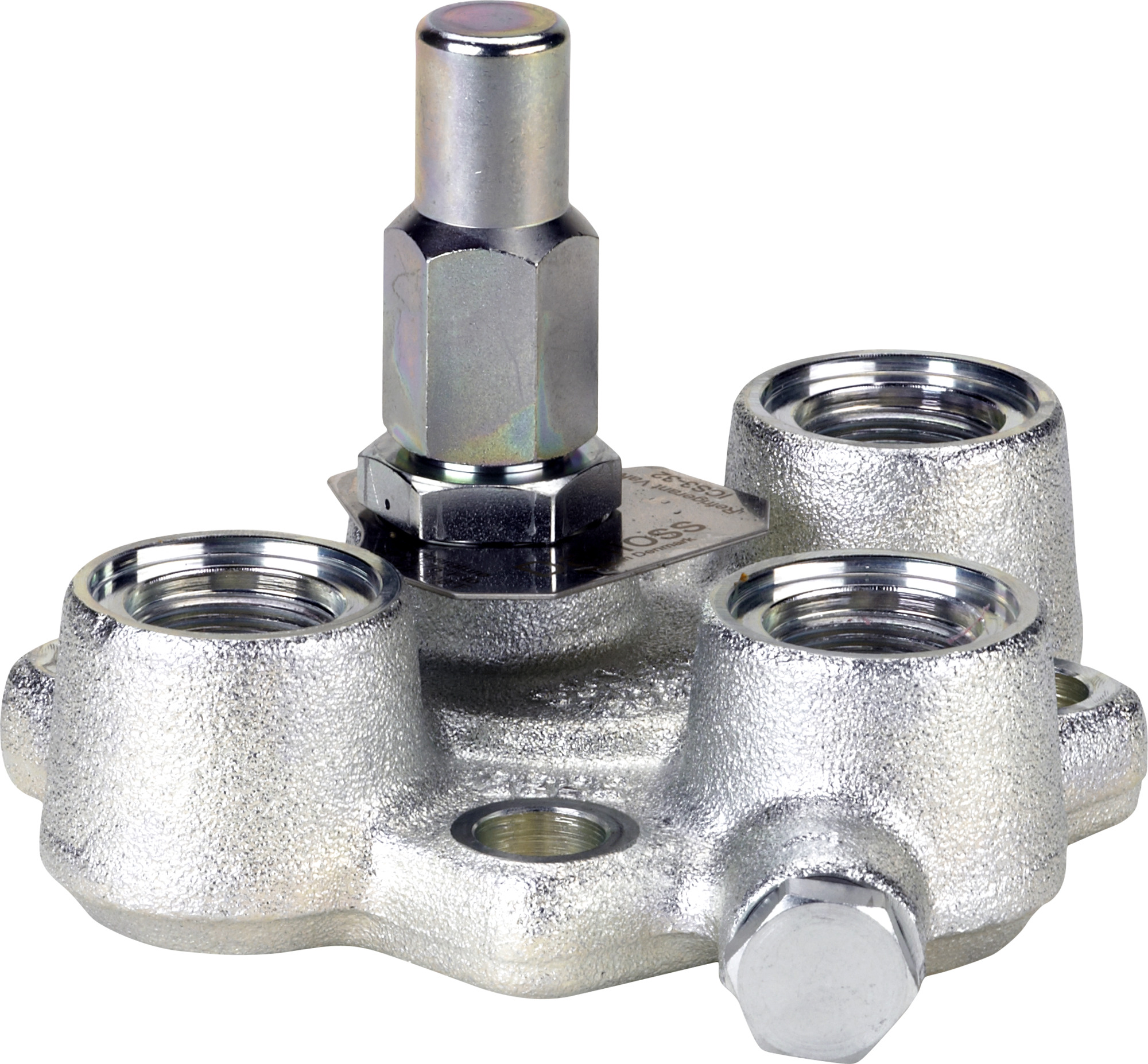

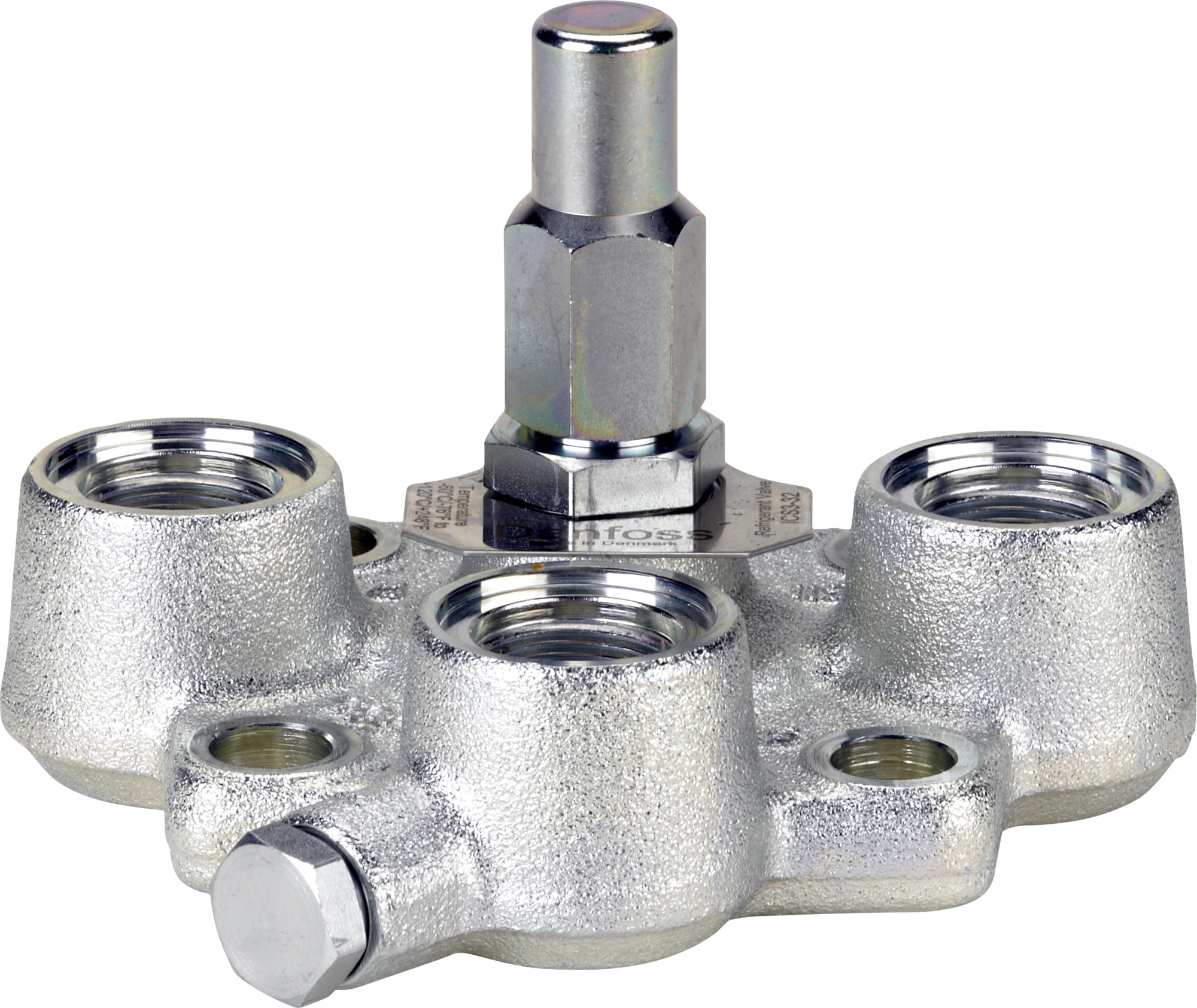

Top cover, ICS3 50, Steel
Product number:
RDB4016
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|---|
| Parts Included : | Blanking plug; Bolts |
| Type : | ICS3 50 |
| Used For : | ICF 50-4; ICV 50 |
Additional Info
| Family : | ICS; ICS + CVC; ICS + CVP; ICS + CVPP; ICS + EVM; ICS ext |
|---|
Logistical Information
| Commodity Code : | 84819000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428237697 |
| Gross Weight : | 4.212 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Weight : | 3.89 kg |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 301.63 KB | |
| Technical Literature | 3.5 MB | |
| Brochures | 4.62 MB | |
| Conformity Declaration | 315.47 KB | |
| Brochures | 1.11 MB | |
| Brochures | 482.3 KB |
