Description
FA 20 FILTER 1" WELD
Contact us for more information

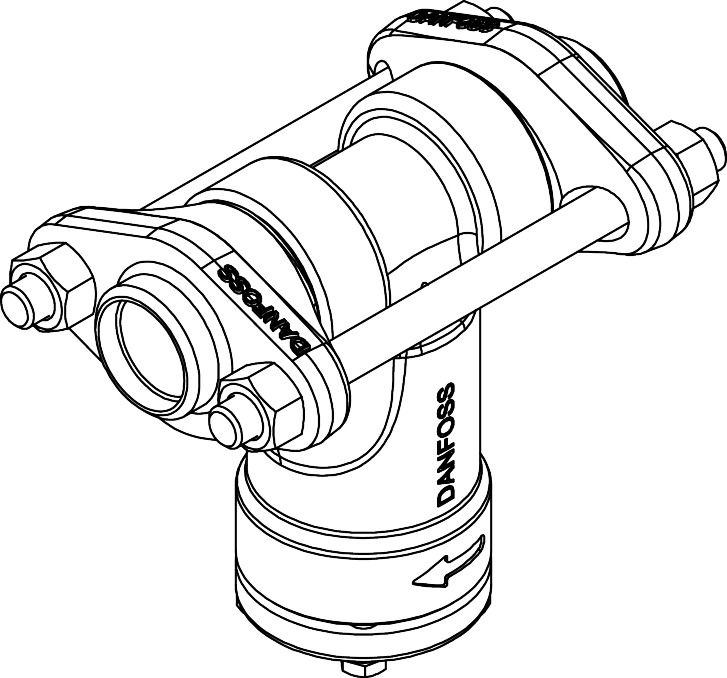

006-0067 FA20 Inline Strainer
Product number:
RDB2023
| Product Group : | Industrial Refrigeration |
|---|
General Information
| Product Group : | Industrial Refrigeration |
|---|---|
| Model Number : | 006-0067 |
| Parts Included : | Bolts, Flanges, Gaskets, Screws |
| Weave Fineness : | 100 Mesh, 150 µm |
Additional Info
| Family : | FA |
|---|
Connections
| Connection Size : | 1 in, 25 mm |
|---|---|
| Connection Type : | Butt weld |
Kv Values
| Kv Value : | 7.400 m³/h |
|---|
Logistical Information
| Commodity Code : | 84213925 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702422004868 |
| Gross Weight : | 2.888 kg |
Material
| Connection Material : | Steel |
|---|
Measurements
| Weight : | 2.78 kg |
|---|
Pressure
| Max Operating Pressure : | 28.0 Bar |
|---|---|
| Max Test Pressure : | 42.0 Bar |
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R227ea, R236fa, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R444B, R447A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R502, R503, R507A, R513A, R717, R1233zd(E), R1234yf, R1234ze(E), R1336mzz(Z) |
|---|
Strainers
| Strainer Area : | 9.3 in², 60 cm² |
|---|---|
| Strainer Volume : | 8.85 in³, 145 cm³ |
Temperature
| Temperature Range : | -50-140 °C |
|---|
Valves
| CV Value : | 8.580 gal/min |
|---|---|
| Fluid Group : | 1 |
