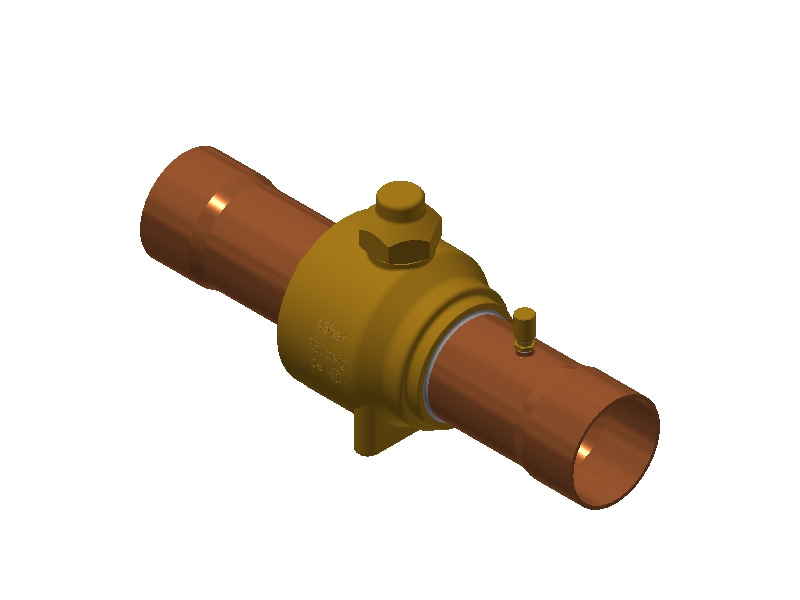

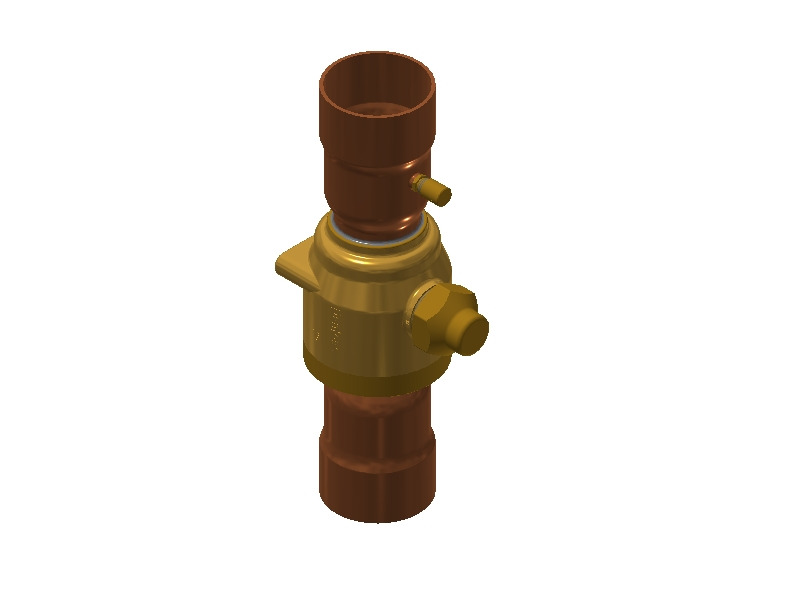

009L7036 Ball Valve GBC 67s 2 5/8" Solder
Contact us for more information
009L7036 Ball Valve GBC 67s 2 5/8" Solder
Product number:
TOT1775
| Product Group : | Danfoss |
|---|
| Access Port : | No |
|---|---|
| Approval : | CE, C UL US LISTED, EAC, UKCA |
| Body Material : | Brass |
| CV Value : | 234.810 gal/min |
| Commodity Code : | 84818081 |
| Connection Material : | Copper |
| Connection Size : | 2 5/8 in |
| Connection Type : | Solder, ODF |
| Country Of Origin : | CHN |
| Direction : | Straightway |
| EAN : | 5702428007993 |
| Equipment : | Cap w. wire seal |
| Family : | GBC v2 |
| Flow Direction : | Bi-Flow |
| Flow Direction Indicator : | Embossed 2-way arrow |
| Gross Weight : | 4.847 kg |
| Inlet Connection Size : | 2 5/8 in |
| Inlet Type : | Solder, ODF |
| Kv Value : | 203.120 m³/h |
| Max Operating Pressure : | 45.0 Bar |
| Max Temperature : | 121 °C |
| Medium Temperature Range Note : | 100°C-121°C for short term use |
| Min Temperature : | -40 °C |
| Model Number : | 009L7036 |
| Net Weight : | 4.35 kg |
| Outlet Connection Size : | 2 5/8 in |
| Outlet Type : | Solder, ODF |
| Product Group : | Danfoss |
| Refrigerant : | R22/R407C, R32, R134a, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
| Temperature Range : | -40-121 °C |
| Test Pressure : | 65 Bar |
| Type : | GBC 67s |
| Weight : | 4.35 kg |
