Description
023U4381 Drier Block 48-DC Solid Core
Contact us for more information

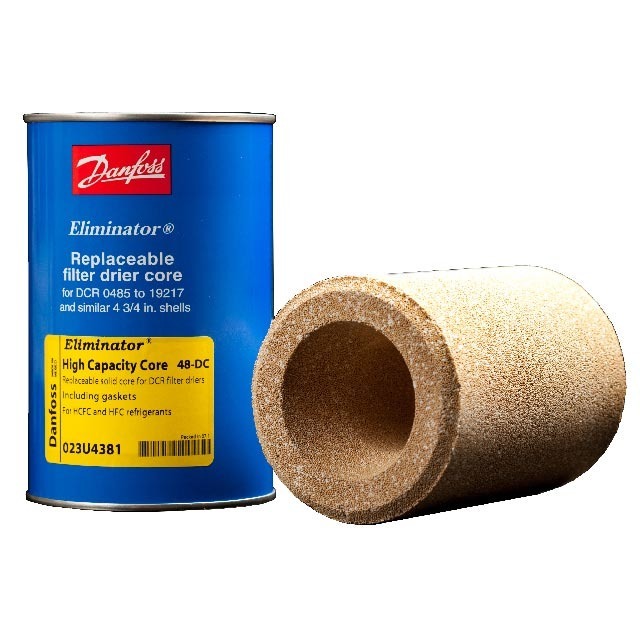

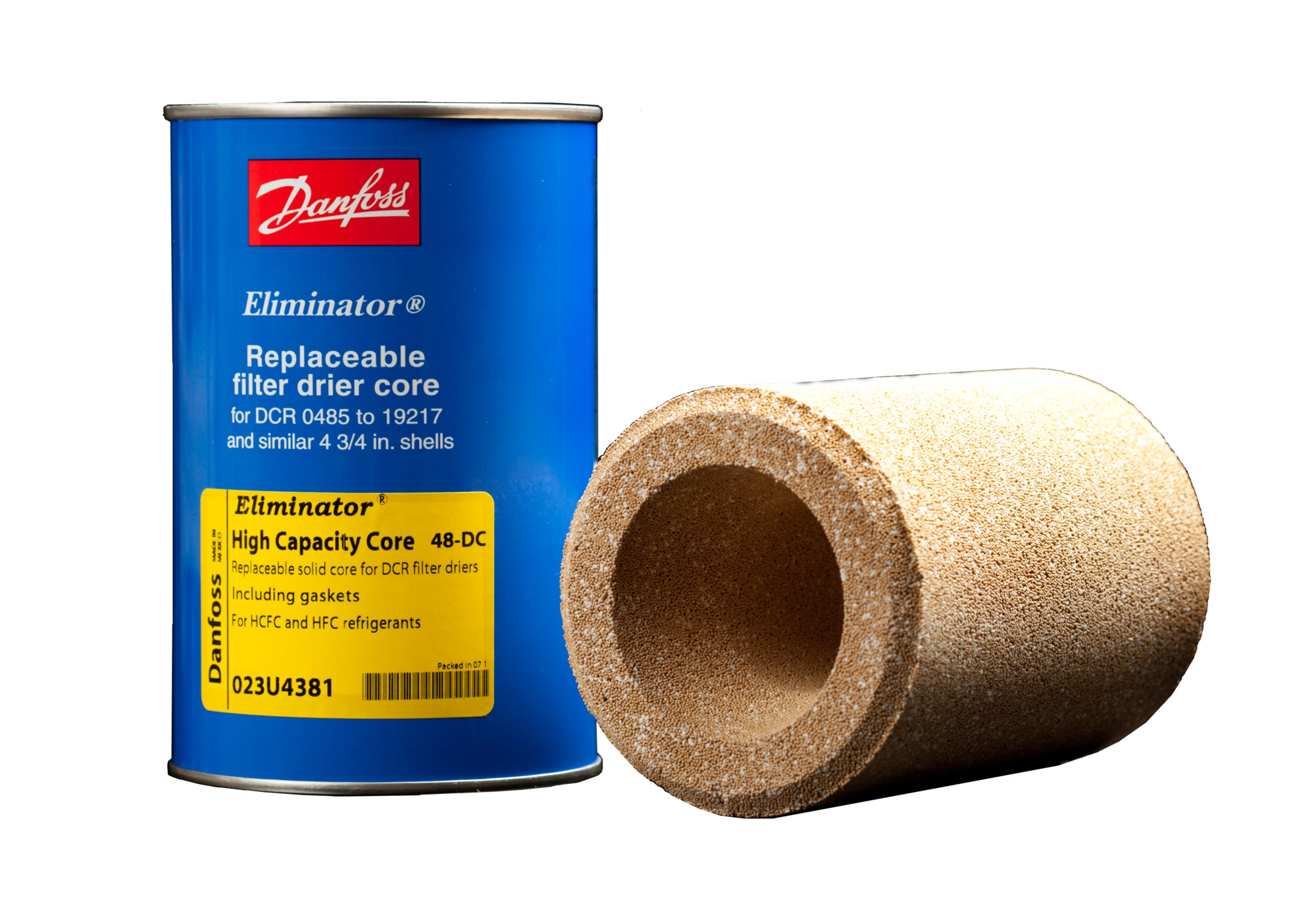

023U4381 Drier Block 48-DC Solid Core
Product number:
RDG7600
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Model Number : | 023U4381 |
| Parts Included : | 1 x Gasket (023U0743), 2 x Felt gasket (633L5312) |
| Specification Key : | 48-DC |
| Type : | 48-DC |
Additional Info
| Additional Info : | Standard capacity |
|---|---|
| Family : | DCR-DC |
Capacity
| Acid Capacity : | 9.09 g |
|---|
Driers

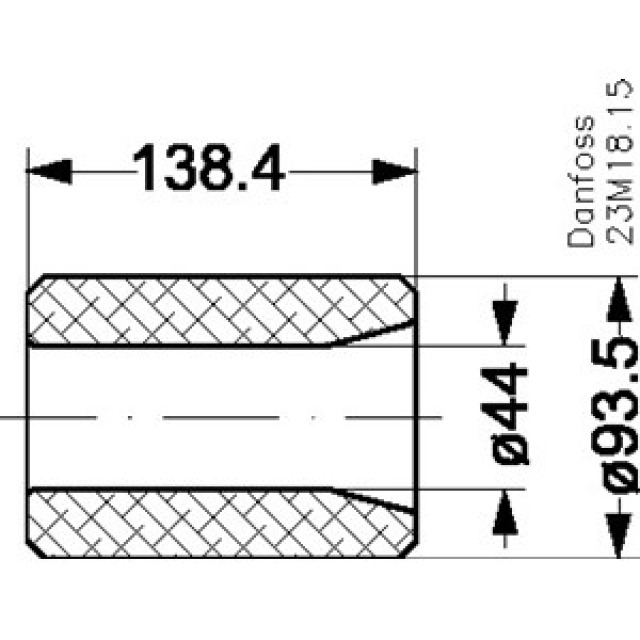

| Core Size : | 48 cu.in. |
|---|---|
| Solid Core Surface : | 95.00 in², 612 cm² |
| Solid Core Volume : | 44.00 in³, 727 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R134a: 1296, R404A: 1350, R407C: 1259, R410A: 1174, R452A: 1339, R507: 1414, R1234ze: 1386 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R134a: 1187, R404A: 1279, R407C: 1160, R410A: 1044, R452A: 1248, R507: 1272, R1234ze: 1246 |
Logistical Information
| Commodity Code : | 68159900 |
|---|---|
| Country Of Origin : | MEX |
Measurements
| Net Weight : | 0.71 kg |
|---|---|
| Weight : | 0.71 kg |
Refrigerant
| Refrigerant : | R22/R407C, R134a, R290, R401A, R402A, R404A, R409A, R410A, R421A, R422D, R502, R507A |
|---|
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 2.96 MB |
