Description

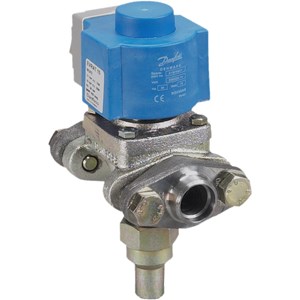

032F620831 Solenoid Valve, EVRA 10
Contact us for more information
032F620831 Solenoid Valve, EVRA 10
Product number:
RDB2210
| Product Group : | Danfoss Solenoid Valves |
|---|
General Information
| Product Group : | Danfoss Solenoid Valves |
|---|---|
| Function : | NC |
| Model Number : | 032F620831 |
| Quantity : | 1 pcs |
| Type : | EVRA 10 |
Coils
| Coil : | Yes |
|---|
Connections
| Coil Connection Type : | BE230AS |
|---|---|
| Inlet Type : | Flange |
Kv Values
| Kv Value : | 1.5 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422178231 |
| Gross Weight : | 1.868 kg |
| Packaging Height : | 110 mm |
| Packaging Length : | 284 mm |
| Packaging Width : | 200 mm |
Material
| Body Material : | Cast iron |
|---|
Measurements
| Net Weight : | 1.621 kg |
|---|
Pressure
| Max OPD, 10W AC : | 21 Bar |
|---|---|
| Max OPD, 20W DC : | 18 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A |
|---|
Standards
| Approval : | EAC |
|---|
Valves
| CV Value : | 1.73 gal/min |
|---|---|
| Direction : | Straightway |
| Valve Operation : | SERVO-DIAPHRAGM |
