Description

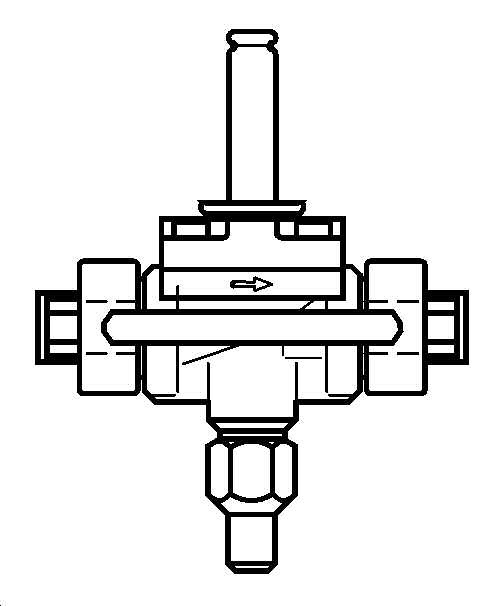

EVRAT 15 Flange Valve Singlep.
Contact us for more information
032F6216 EVRAT 15 IND VALV SOL
Product number:
RDB2243
| Product Group : | Danfoss Solenoid Valves |
|---|
General Information
| Product Group : | Danfoss Solenoid Valves |
|---|---|
| Function : | NC |
| Model Number : | 032F6216 |
| Type : | EVRAT 15 |
Additional Info
| Family : | EVRAT |
|---|
Coils
| Coil : | No |
|---|
Connections
| Inlet Type : | Flange |
|---|---|
| Outlet Type : | Flange |
Kv Values
| Kv Value : | 2.700 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818071 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422178422 |
| Gross Weight : | 1.746 kg |
Material
| Body Material : | Cast iron |
|---|
Measurements
| Net Weight : | 1.52 kg |
|---|---|
| Weight : | 1.52 kg |
Pressure
| Max OPD, 10W AC : | 14 Bar |
|---|---|
| Max Operating Pressure : | 42.0 Bar |
| Min OPD : | 0.000 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature : | -40 - 80 °C |
|---|---|
| Ambient Temperature Range : | -40-80 °C |
| Medium Temperature Range : | -40-105 °C |
| Medium Temperature Range Note : | Defrost max 130°C/265°F |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 3.120 gal/min |
| Direction : | Straightway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 15.00 mm |
| Valve Operation : | SERVO-DIAPHRAGM |
