Description

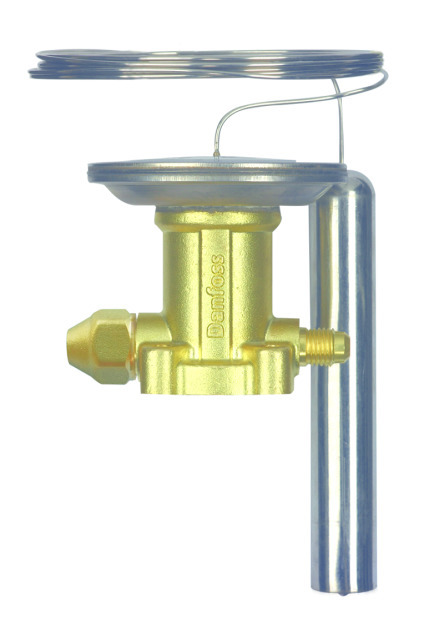

067B3297 TE5 Exp Valve Element R134a
Contact us for more information
067B3297 TE5 Exp Valve Element R134a
Product number:
RDA1115
| Product Group : | Danfoss Thermostatic Expansion Valves Assemblies TE5-TE55 |
|---|
General Information
| Product Group : | Danfoss Thermostatic Expansion Valves Assemblies TE5-TE55 |
|---|---|
| Model Number : | 067B3297 |
| Type : | TE 5 |
Additional Info
| Family : | TE 5 - 55 |
|---|
Connections
| Equalization Connection Size : | 1/4 in |
|---|---|
| Equalization Connection Type : | Flare |
Logistical Information
| Commodity Code : | 84819000 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428094023 |
| Gross Weight : | 0.518 kg |
Material
| Body Material : | Brass |
|---|
Measurements
| Capillary Tube Length : | 118.0 in, 3000 mm |
|---|---|
| Net Weight : | 0.44 kg |
| Weight : | 0.44 kg |
Pressure
| Max Operating Pressure : | 28.0 Bar |
|---|---|
| Pressure Equalization : | External |
Refrigerant
| Refrigerant : | R134a |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Max Temperature : | 10 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-10 °C |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 1.46 MB | |
| Installation Manual | 878.43 KB | |
| Brochures | 7.14 MB | |
| Technical Literature | 8.49 MB | |
| Conformity Declaration | 889.08 KB | |
| Conformity Declaration | 594.92 KB |
