Description

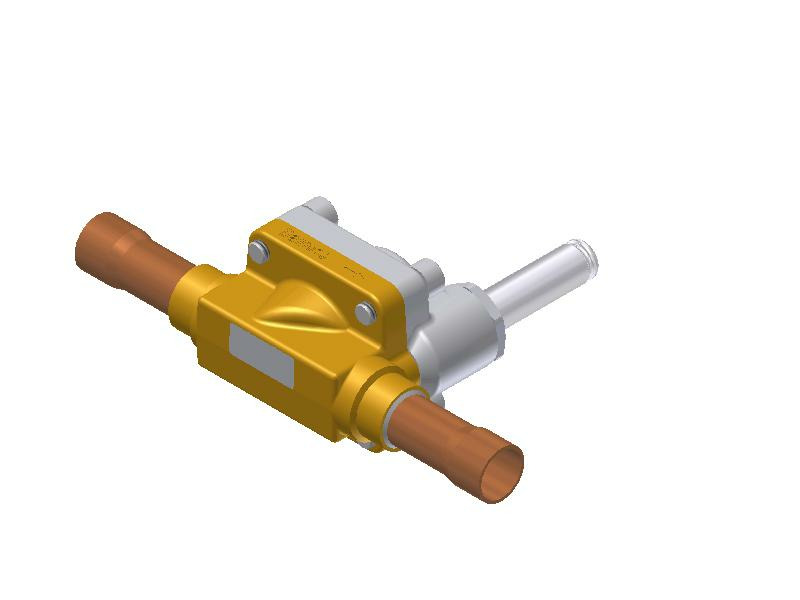

068F5000 Electronic Exp Valve AKV15-1 3/4" x 3/4" St
Contact us for more information
068F5000 Electronic Exp Valve AKV15-1 3/4" x 3/4" St
Product number:
RDA1180
| Product Group : | Danfoss Electronic |
|---|
General Information
| Product Group : | Danfoss Electronic |
|---|---|
| Function : | NC |
| Model Number : | 068F5000 |
| Type : | AKV 15-1 |
Additional Info
| Family : | AKV |
|---|
Coils
| Coil : | No |
|---|
Connections
| Connection Type : | Solder, ODF |
|---|---|
| Inlet Connection Size : | 3/4 in |
| Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 3/4 in |
| Outlet Type : | Solder, ODF |
Kv Values
| Kv Value : | 0.250 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422186595 |
| Gross Weight : | 1.572 kg |
Material
| Body Material : | Brass |
|---|
Measurements
| Net Weight : | 1.35 kg |
|---|---|
| Weight : | 1.35 kg |
Pressure
| Max OPD, 10W AC : | 22 Bar |
|---|---|
| Max Operating Pressure : | 46.0 Bar |
| Min OPD : | 0.450 Bar |
Refrigerant
| Refrigerant : | R22, R23, R134a, R404A, R407A, R407C, R407F, R410A, R422D, R438A, R448A, R449A, R450A, R452A, R507A, R513A, R744 |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature Range : | -40-50 °C |
|---|---|
| Medium Temperature Range : | -50-60 °C |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 0.289 gal/min |
| Direction : | Straightway |
| MOPD : | 22.0 Bar |
| Orifice Size : | 5.60 mm |
