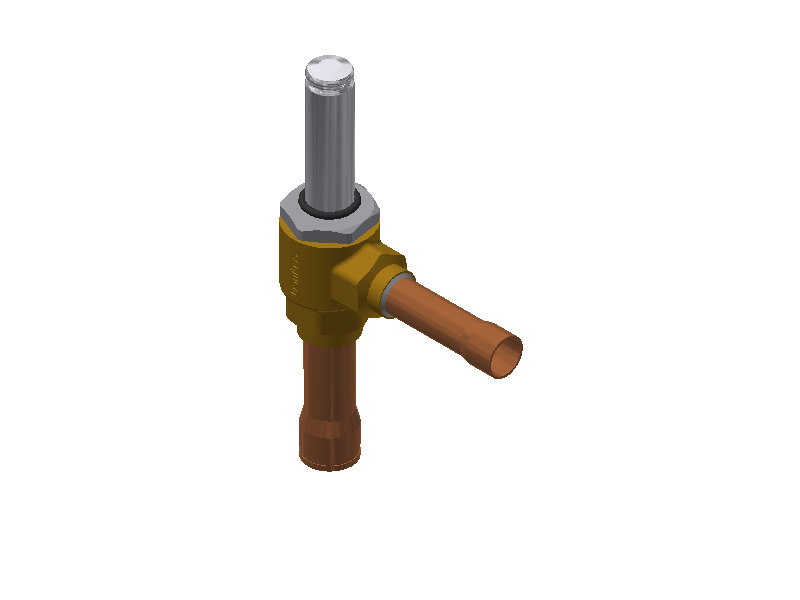

068F5217 Electronic Expansion Valve AKV 10P7 1/2"x5/8"
Contact us for more information
068F5217 Electronic Expansion Valve AKV 10P7 1/2"x5/8"
Product number:
RDA1201
| Product Group : | Danfoss Electronic |
|---|
General Information
| Product Group : | Danfoss Electronic |
|---|---|
| Manual Operation Option : | No |
| Model Number : | 068F5217 |
Additional Info
| Family : | AKV |
|---|
Coils
| Coil : | No |
|---|
Connections
| Connection Type : | Solder, ODF |
|---|---|
| Inlet Connection Size : | 1/2 in |
| Outlet Connection Size : | 5/8 in, 16 mm |
Kv Values
| Kv Value : | 0.19 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428669931 |
| Gross Weight : | 0.352 kg |
Measurements
| Net Weight : | 0.31 kg |
|---|---|
| Weight : | 0.310 kg |
Pressure
| Max Operating Pressure : | 90.0 Bar |
|---|---|
| Min OPD : | 0.000 Bar |
R22 Performances
| R22 Rated Capacity : | 16.00 kW |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R134a, R290, R404A, R407A, R407C, R407F, R410A, R422D, R438A, R448A, R449A, R450A, R452A, R452B, R455A, R507A, R513A, R600a, R744, R1233zd, R1234yf, R1234ze, R1270 |
|---|---|
| UL Approved Refrigerants : | R22, R23, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454A, R463A, R507A, R513A, R513B, R515A, R515B, R516A, R744, R1233zd(E) |
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC EURO-TYSK |
|---|
Temperature
| Medium Temperature Range : | -50-60 °C |
|---|
Valves
| CV Value : | 0.21 gal/min |
|---|---|
| MOPD : | 18 Bar |
| Orifice Size : | 2.3 mm |
