Description

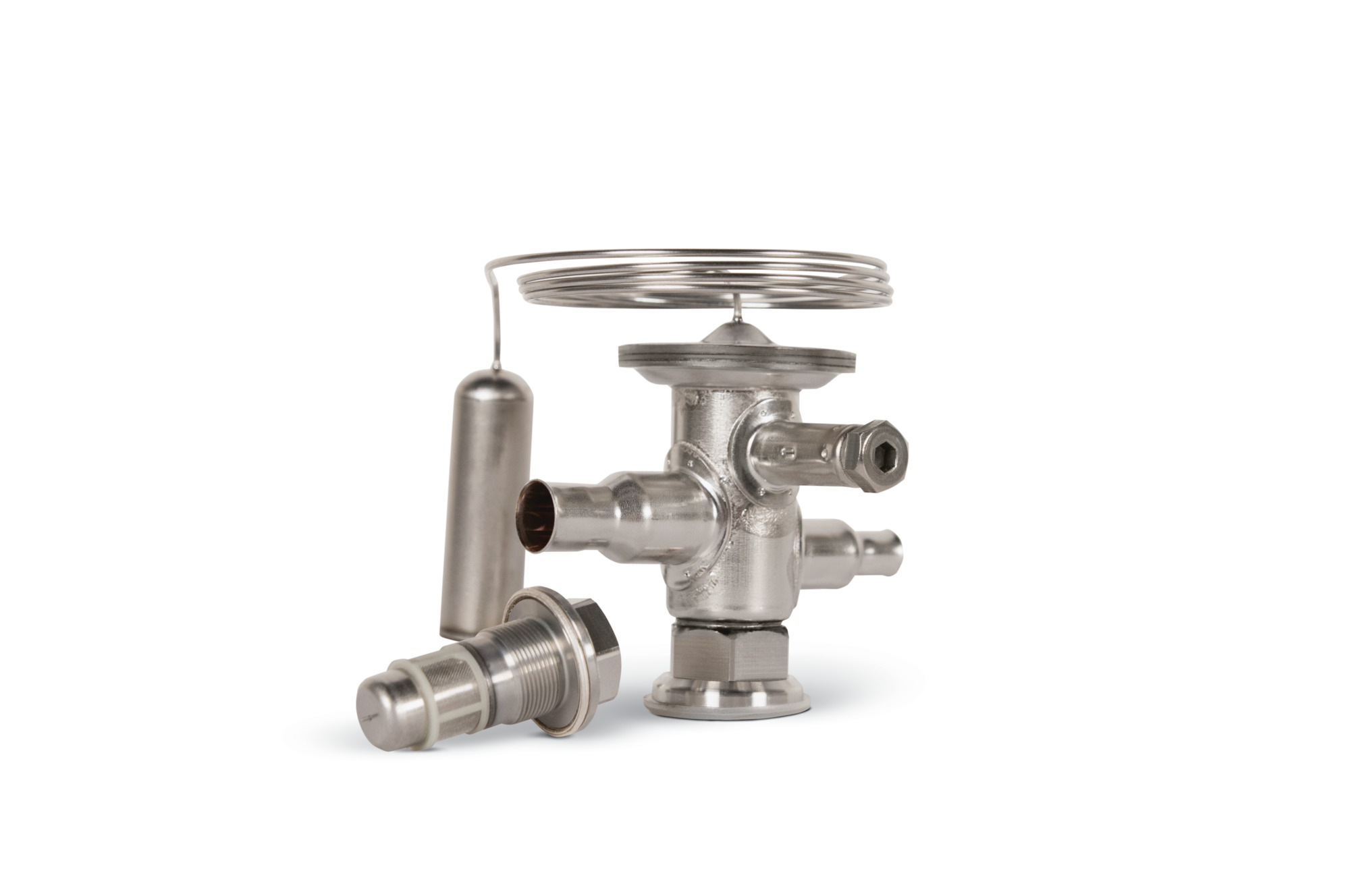

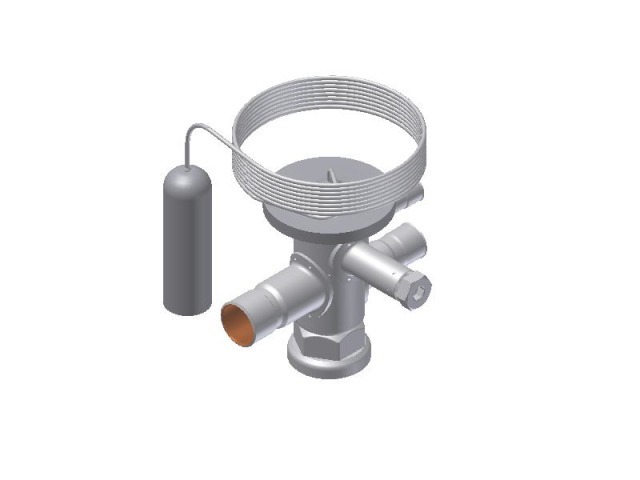

Exp Valve R22/R407C TUAE 3/8" x 1/2" Stainless Solder Without Orifice
Contact us for more information
068U2237 Exp Valve R22/R407C TUAE 3/8" x 1/2" Stainless Solder Without Orifice
Product number:
RDA0400
| Product Group : | Danfoss Thermostatic Expansion Valves TUAE |
|---|
General Information
| Product Group : | Danfoss Thermostatic Expansion Valves TUAE |
|---|---|
| Model Number : | 068U2237 |
| Type : | Expansion Valve |
Additional Info
| Family : | TU/TC |
|---|
Connections
| Equalization Connection Size : | 1/4 in |
|---|---|
| Equalization Connection Type : | SOLDER, ODF |
| Inlet Connection Size : | 3/8 in |
| Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 1/2 in |
| Outlet Type : | Solder, ODF |
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702422181774 |
| Gross Weight : | 0.188 kg |
Material
| Body Material : | Stainless Steel |
|---|---|
| Connection Material : | Steel/Copper |
Measurements
| Capillary Tube Length : | 59.0 in, 1500 mm |
|---|---|
| Net Weight : | 0.15 kg |
| Weight : | 0.15 kg |
Pressure
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Pressure Equalization : | External |
Refrigerant
| Refrigerant : | R22, R407C |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, UL |
|---|
Temperature
| Max Temperature : | 10 °C |
|---|---|
| Min Temperature : | -40 °C |
| Static Superheat : | 4 °C |
| Superheat Setting : | Adjustable |
| Temperature Range : | -40-10 °C |
Valves
| Direction : | Straightway |
|---|---|
| Flow Direction : | Bi-flow with orifice 1-8 |
| Flow Direction Indicator : | Laser engraved 1-way arrow |
| Fluid Group : | 2 |
| MOPD : | 34 Bar |
