Description

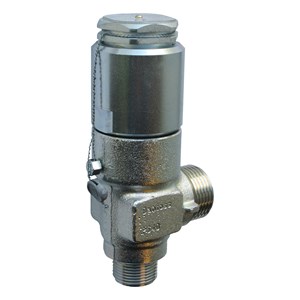

2416+310 Safety Relief Valve, BSV 8, G, 12 bar
Contact us for more information
2416+310 Safety Relief Valve, BSV 8, G, 12 bar
Product number:
RDF3130
| Product Group : | Danfoss Safety Relief Valves |
|---|
General Information
| Product Group : | Danfoss Safety Relief Valves |
|---|---|
| Model Number : | 2416+310 |
| Type : | BSV 8 |
Connections
| Connection Internal/External : | External |
|---|---|
| Connection Size : | 5/16 in |
| Connection Standard : | ISO 228-1 |
| Connection Type : | G |
| Inlet Connection Size : | 3/4 in |
| Inlet Type : | G |
| Outlet Connection Size : | 1 in |
Logistical Information
| Commodity Code : | 84814010 |
|---|---|
| Content Per Box : | 1 pcs |
| Country Of Origin : | POL |
| EAN : | 5702428192019 |
| Gross Weight : | 1.624 kg |
| Packaging Height : | 64 mm |
| Packaging Length : | 240 mm |
| Packaging Width : | 85 mm |
Measurements
| Weight : | 1.563 kg |
|---|
Pressure
| Pressure Setting : | 12 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK |
|---|
Temperature
| Temperature Range : | -30 °C, 100 °C |
|---|
Valves
| Certified Coef Of Disc : | 0.43 kg |
|---|---|
| Direction : | Angleway |
| Flow Area : | 50 mm² |
| Flow Diameter : | 8 mm |
| Fluid Group : | 1 |
| Lift : | 1.45 mm |
