Description

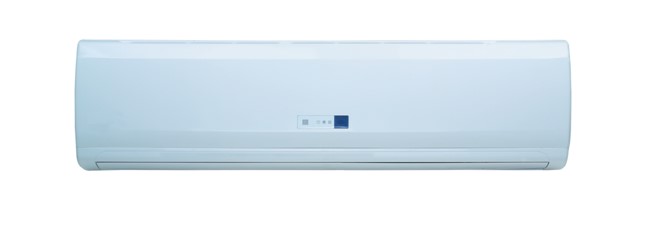

32000 Btu/h DC Inverter Hi Wall heat pump Indoor
Contact us for more information
32000 Btu/h DC Inverter Hi-Wall heat pump Indoor
Product number:
42QHF032DS-1
| Product Group : | Carrier Highwall Inverter - Indoor |
|---|
General Information
| Product Group : | Carrier Highwall Inverter - Indoor |
|---|---|
| Model Number : | 42QHF032DS-1 |
| Type : | High Wall |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|
Air Volume/Air Flow
| Air Flow (Low/Medium/High) : | 950/1180/1280 m³/h |
|---|
Connections
| Pipe Diameter Gas Side : | 5/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 3/8 in |
Cooling Capacity
| Cooling Capacity : | 9.2 kW |
|---|
Electrical
| Current (Cooling) : | 12.8 A |
|---|---|
| Current (Heating) : | 12 A |
| Input (Cooling) : | 2880 W |
| Input (Heating) : | 12750 W |
| Max Current : | 20 A |
| Max Power Input : | 4580 W |
| Power Supply : | 22-240/1/50 V/Ph/Hz |
| Voltage : | 220-240 V |
Energy Efficiency/Performance
| COP : | 3.59 |
|---|---|
| EER : | 3.19 |
Heating Capacity
| Heating Capacity : | 9.8 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 283 mm |
|---|---|
| Height (IU) : | 362 mm |
| Width (IU) : | 1259 mm |
Logistical Information
| Gross Weight : | 26.5 kg |
|---|---|
| Packaging Depth : | 450 mm |
| Packaging Height : | 380 mm |
| Packaging Width : | 1340 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Piping Length : | 40 m |
| Min Piping Length : | 3 m |
Refrigerant
| Additional Charge : | 30 g/m |
|---|---|
| Refrigerant : | R410A |
| Refrigerant Charge : | 2.6 kg |
Sound Power/Pressure
| Sound Power Level : | 63 dB(A) |
|---|---|
| Sound Pressure Level (Low/High) : | 44/55 dB(A) |
