Description

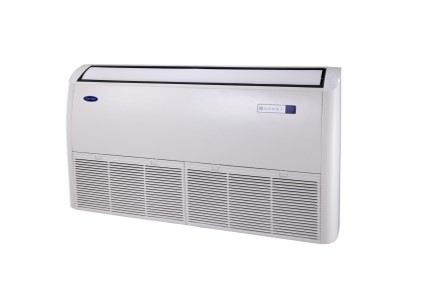

36000 Btu/h Fixed Speed Under Ceiling Indoor unit
Contact us for more information
36000 Btu/h Fixed Speed Under Ceiling Indoor unit
Product number:
42QZL036NS-3
| Product Group : | Carrier Fixed Speed Under Ceiling-Indoor |
|---|
General Information
| Product Group : | Carrier Fixed Speed Under Ceiling-Indoor |
|---|---|
| Model Number : | 42QZL036NS3 |
Air Volume/Air Flow
| Air Flow : | 1819 m³/h |
|---|---|
| Air Flow (Low/Medium/High) : | 1331/1536/1819 m³/h |
Cooling Capacity
| Cooling Capacity : | 36000 kBtu/h |
|---|
Electrical
| Current (Cooling) : | 6.0 A |
|---|---|
| Current (Heating) : | 6.1 A |
| Input (Cooling) : | 3600 W |
| Input (Heating) : | 3650 W |
Energy Efficiency/Performance
| COP : | 2.89 |
|---|---|
| EER : | 2.93 |
Indoor Unit Attributes
| Depth (IU) : | 675 mm |
|---|---|
| Height (IU) : | 235 mm |
| Weight (IU) : | 29.9 kg |
| Width (IU) : | 1285 mm |
Logistical Information
| Gross Weight : | 35.5 kg |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 410 mm |
|---|---|
| Height (OU) : | 810 mm |
| Sound Pressure Level (OU) : | 63 dB(A) |
| Weight (OU) : | 77.5 kg |
| Width (OU) : | 946 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Piping Length : | 30 m |
Refrigerant
| Refrigerant : | R410A |
|---|---|
| Refrigerant Charge : | 2.85 kg |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -7~43 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -7~24 °C |
