Description

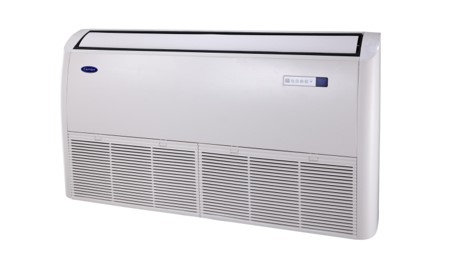

36000 Btu/h Inverter Under Ceiling Indoor XDS unit
Contact us for more information
36000 Btu/h Inverter Under Ceiling Indoor XDS unit
Product number:
42QZL036XDS
| Product Group : | Carrier Inverter Under Ceiling-Indoor |
|---|
General Information
| Product Group : | Carrier Inverter Under Ceiling-Indoor |
|---|---|
| Model Number : | 42QZL036XDS |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|
Air Volume/Air Flow
| Air Flow : | 1955 m³/h |
|---|---|
| Air Flow (Low/Medium/High) : | 1504/1728/1955 m³/h |
Cooling Capacity
| Cooling Capacity : | 36000 kBtu/h |
|---|
Electrical
| Current (Cooling) : | 18.8 A |
|---|---|
| Current (Heating) : | 14.7 A |
| Input (Cooling) : | 4160 W |
| Input (Heating) : | 3250 W |
| Max Current : | 22.5 A |
| Max Power Input : | 5000 W |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 220-240 V |
Energy Efficiency/Performance
| COP : | 3.61 |
|---|---|
| EER : | 2.54 |
Heating Capacity
| Heating Capacity : | 11723 W |
|---|
Logistical Information
| Gross Weight : | 48 kg |
|---|
Measurements
| Depth : | 675 mm |
|---|---|
| Height : | 235 mm |
| Net Weight : | 41.5 kg |
| Width : | 1650 mm |
Outdoor Unit Attributes
| Depth (OU) : | 410 mm |
|---|---|
| Height (OU) : | 810 mm |
| Weight (OU) : | 67.6 kg |
| Width (OU) : | 946 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 75 m |
| Refrigerant Pipe Size Gas : | 5/8 in |
| Refrigerant Pipe Size Liquid : | 3/8 in |
Refrigerant
| Refrigerant : | R410A |
|---|---|
| Refrigerant Charge : | 3.2 kg |
Temperature
| Temperature Range Cooling : | 17～32 °C |
|---|---|
| Temperature Range Heating : | 0～30 °C |
