Description

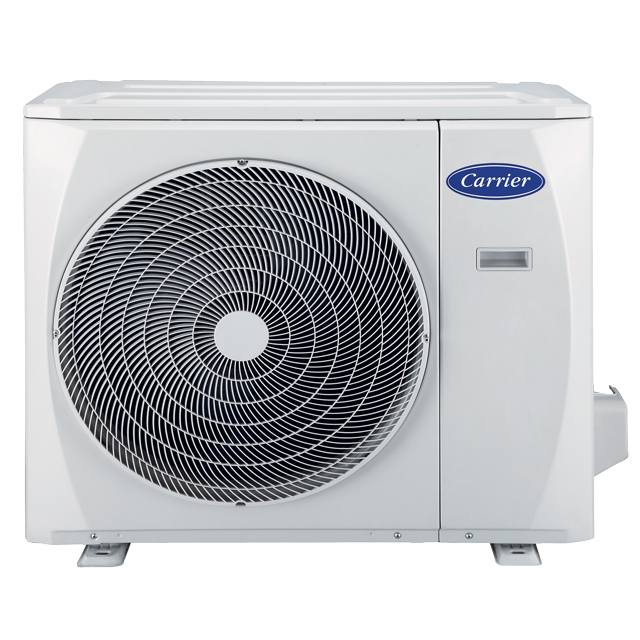

38QUS048D8S 48000 Btu/h R32 Universal ODU Inverter 220v
Contact us for more information
38QUS048D8S 48000 Btu/h R32 Universal ODU Inverter 220v
Product number:
38QUS048D8S
| Product Group : | Carrier Inverter Outdoor Units |
|---|
General Information
| Product Group : | Carrier Inverter Outdoor Units |
|---|---|
| Model Number : | 38QUS048D8S |
Cooling Capacity
| Cooling Capacity : | 48000 BTU/h |
|---|
Electrical
| Current (Cooling) : | 20.8 A |
|---|---|
| Current (Heating) : | 20 A |
| Input (Cooling) : | 4700 W |
| Input (Heating) : | 4600 W |
| Phase : | 1 ph |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 220-240 V |
Energy Efficiency/Performance
| COP : | 3.50 |
|---|---|
| EER : | 2.99 |
Heating Capacity
| Heating Capacity : | 55000 BTU/h |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 415 mm |
|---|---|
| Height (OU) : | 975 mm |
| Max Sound Power Level (OU) : | 74 dB(A) |
| Net Weight (OU) : | 92.5 kg |
| Sound Pressure Level (OU) : | 64.5 dB(A) |
| Width (OU) : | 980 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 75 m |
| Refrigerant Pipe Size Gas : | 5/8 in |
| Refrigerant Pipe Size Liquid : | 3/8 in |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 2.9 kg |
Sound Power/Pressure
| Sound Power Level : | 74 dB(A) |
|---|---|
| Sound Pressure Level : | 64.5 dB(A) |
Temperature
| Temperature Range Cooling : | 16～32 °C |
|---|---|
| Temperature Range Heating : | 0～30 °C |
