Description

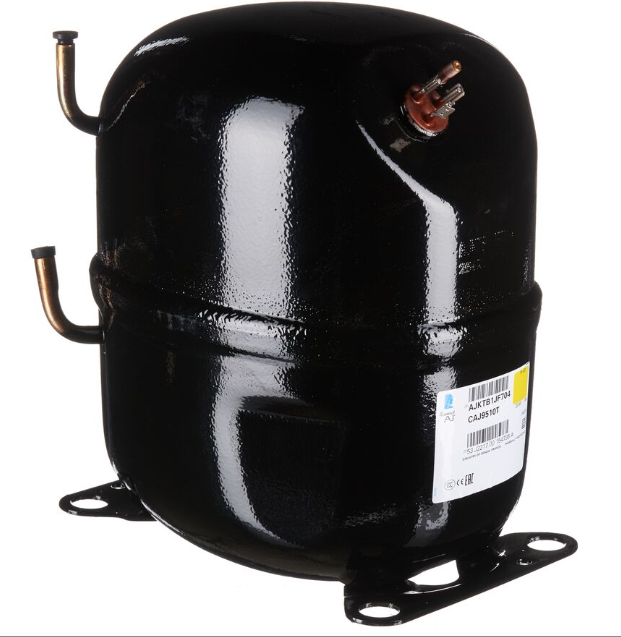

CAJ9510T Medium Temp Commercial Compressor on R22
Contact us for more information
CAJ9510T Medium Temp Commercial Compressor on R22
Product number:
RLH2208
| Product Group : | Tecumseh Med Temp 220V |
|---|
General Information
| Product Group : | Tecumseh Med Temp 220V |
|---|---|
| Model Number : | AJKTB1JF704A06 |
| Type : | Reciprocating Compressors |
Application
| Application : | MBP/HBP - Medium/High Back Pressure |
|---|
Compressor
| Displacement : | 18.3 cc |
|---|---|
| Run Capacitor : | 585302 |
| Start Capacitor : | 541162 |
Connections
| Discharge Line Connection : | 5/16 in |
|---|---|
| Suction Line Connection : | 5/8 in |
Electrical
| MCC : | 8.2 A |
|---|---|
| Phase : | 1 |
| Power Supply : | 220-240/1/50 V/Ph/Hz, V/Ph/Hz V/Ph/Hz |
| Voltage : | 220-240 V |
Measurements
| Height : | 280 mm |
|---|---|
| Length : | 246 mm |
| Weight : | 21 kg |
| Width : | 218 mm |
Motor
| Motor Type : | CSR |
|---|
Oil
| Oil Charge : | 475 cc |
|---|---|
| Oil Type : | Synthetic Alkylate |
Pressure
| Diff : | -23.3 °C, 12.8 °C |
|---|
Refrigerant
| Refrigerant : | R22 |
|---|
