Description
Compressor Scroll HCP094T4LC6 380v POE Oil Stub Tube
Contact us for more information
Compressor Scroll HCP094T4LC6 380v POE Oil Stub Tube
Maneurop
Product number:
RDM4626
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|---|
| Colour : | Blue |
| Model Number : | 121L0601 |
| Type : | HCP |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 380-415/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 126.02 cm³ |
| Technique : | Scroll |

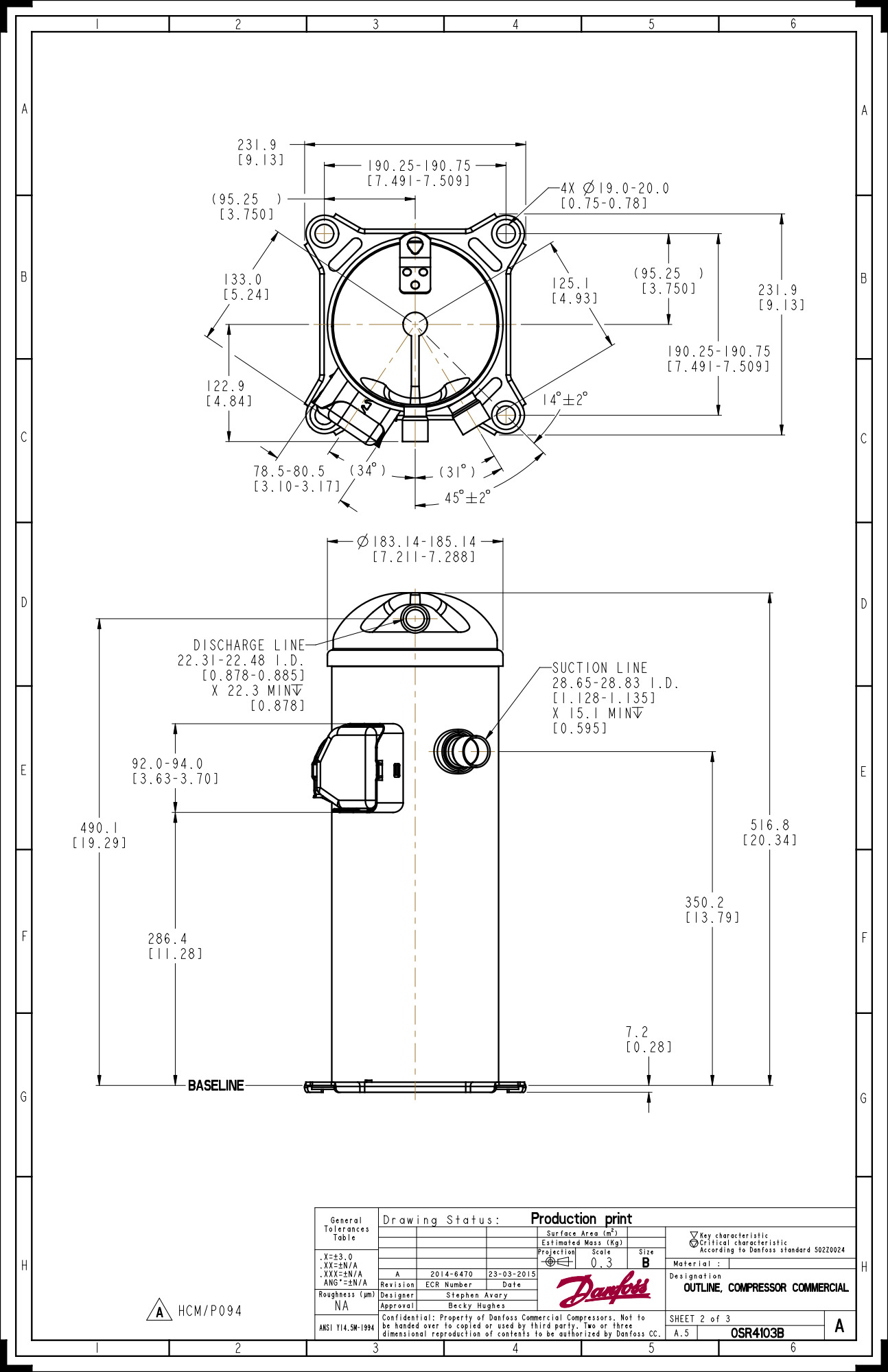

Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 509 mm |
| Discharge Connection Pipe Size : | 7/8 in |
| Discharge Line Connection Size : | 7/8 in |
| Suction Connection Height : | 369 mm |
| Suction Connection Pipe Size : | 1 1/8 in |
| Suction Line Connection Size : | 1 1/8 in |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP22 |
| LRA : | 84 A |
| MCC : | 21 A |
| RLA : | 13.5 A |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702424206246 |
| Gross Weight : | 48.33 kg |
Measurements
| Diameter : | 184 mm |
|---|---|
| Height : | 536 mm |
| Length : | 232 mm |
| Weight : | 44.00 kg |
| Width : | 232 mm |
Oil
| Oil Charge : | 2.66 L |
|---|---|
| Oil Type : | PVE |
Refrigerant
| Max Refrigerant Charge : | 7.26 kg |
|---|---|
| Refrigerant : | R407C |
| File name | Extension | Size |
|---|---|---|
| Safety Data Sheet | 137 KB | |
| Conformity Declaration | 218.64 KB | |
| Conformity Declaration | 158.36 KB | |
| Conformity Declaration | 393.53 KB | |
| Conformity Declaration | 915.78 KB | |
| Conformity Declaration | 1.3 MB | |
| Installation Manual | 677.23 KB | |
| Conformity Declaration | 671.76 KB | |
| Conformity Declaration | 1.16 MB |
