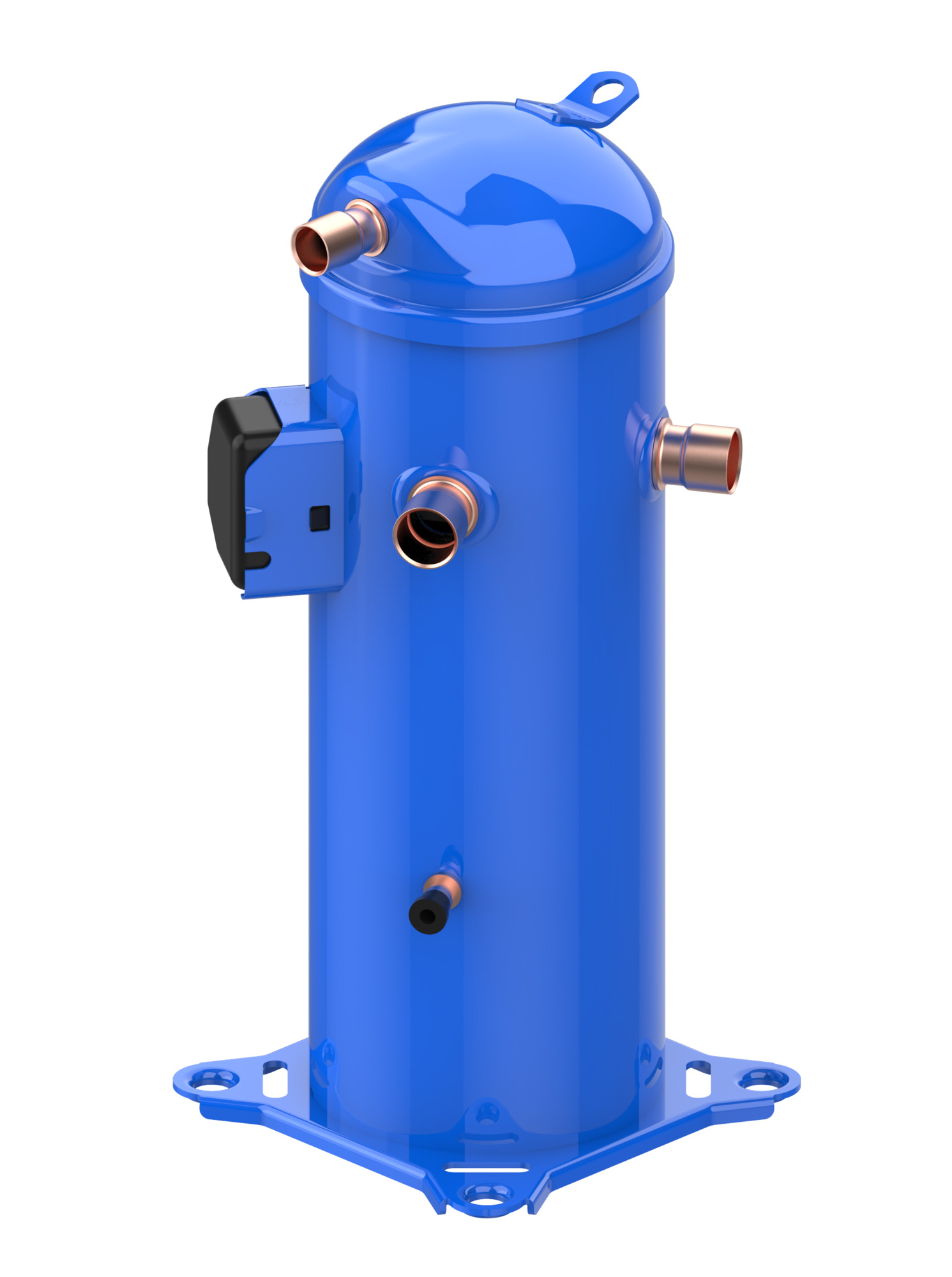

Compressor Scroll HCP120T4LC6 380v POE Oil Stub Tube
Contact us for more information
Compressor Scroll HCP120T4LC6 380v POE Oil Stub Tube
Product number:
RDM4632
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|---|
| Colour : | Blue |
| Configuration Code : | Single |
| Fitting Standard : | ODF |
| Gas Equalization : | None |
| Gauge Port HP : | None |
| Gauge Port LP : | None |
| Model Number : | 121L0401 |
| Shipped Mounting : | Mounting kit with grommets and sleeves |
| Shipped Oil : | Initial oil charge |
| Technology : | Scroll |
| Type : | HCP120 |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Max Number Of Starts Per Hour : | 12 |
|---|---|
| Rotational Speed 50Hz : | 2900 r/min |
| Rotational Speed 60Hz : | 3500 r/min |
| Swept Volume : | 162.40 cm³ |
| Technique : | Scroll compressor |
| Winding Resistance 1-2 : | 1.13 Ohm |
| Winding Resistance 1-3 : | 1.11 Ohm |
| Winding Resistance 2-3 : | 1.10 Ohm |
Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 519 mm |
| Discharge Connection Pipe Size : | 7/8 in |
| Discharge Connection Size : | 7/8 in |
| Power Connections : | Screw connectors 10-32 UNF x 9.5 |
| Suction Connection Height : | 369 mm |
| Suction Connection Pipe Size : | 1-1/8 in |
| Suction Connection Size : | 1-1/8 in |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| LRA : | 140 A |
| MCC : | 25 A |
| RLA : | 19.2 A |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |

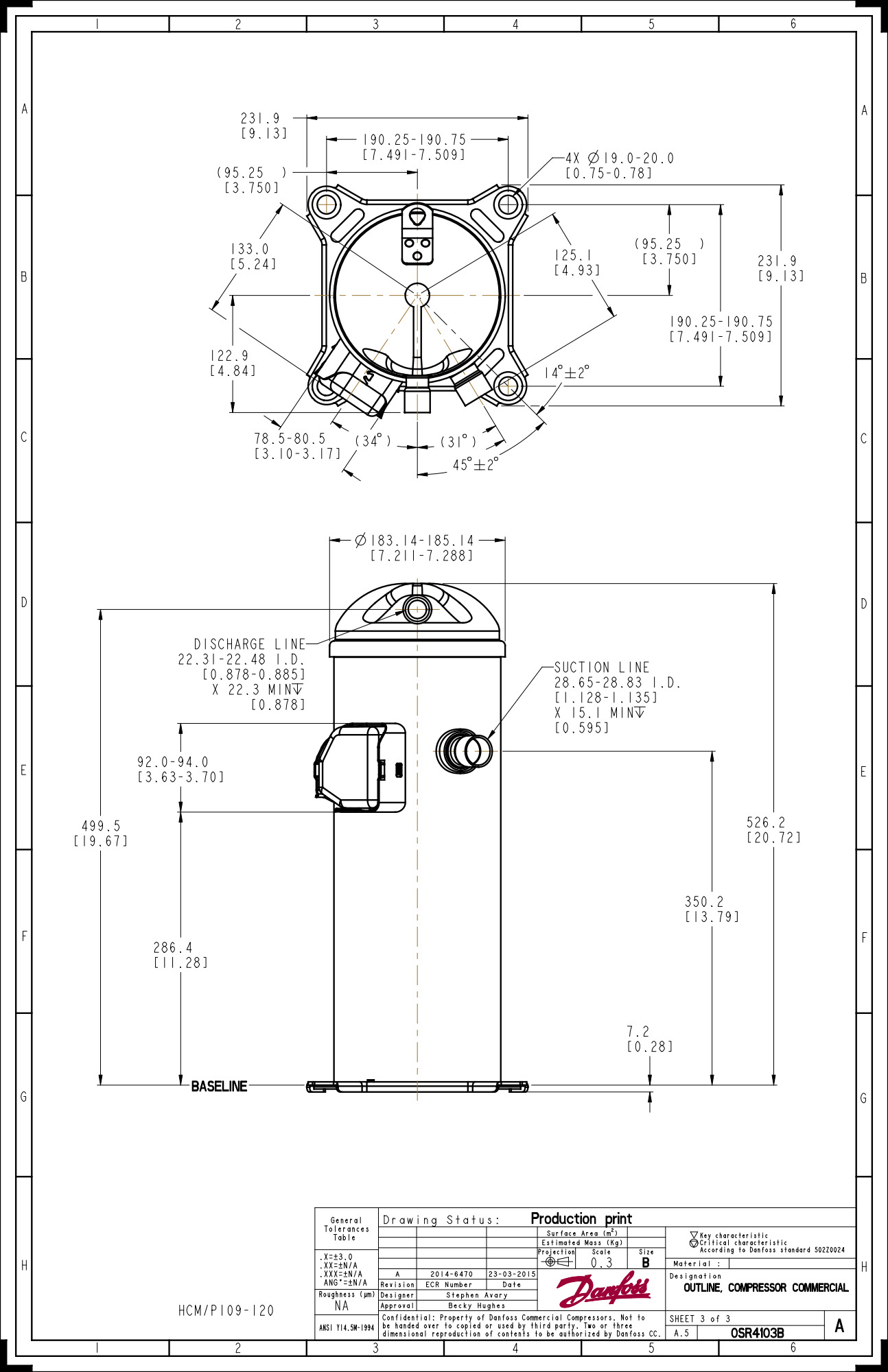

Measurements
| Diameter : | 184 mm |
|---|---|
| Length : | 232 mm |
| Total Height : | 545 mm |
| Width : | 232 mm |
Motor
| Motor Protector : | Internal overload protector |
|---|
Mounting
| Glass Mounting : | None |
|---|
Oil
| Oil : | 320HV |
|---|---|
| Oil Charge : | 2.66 L |
| Oil Equalization : | None |
| Oil Type : | PVE |
Refrigerant
| Max Refrigerant Charge : | 7.26 kg |
|---|---|
| Refrigerant : | R407C |
Valves
| Relief Valve : | None |
|---|
