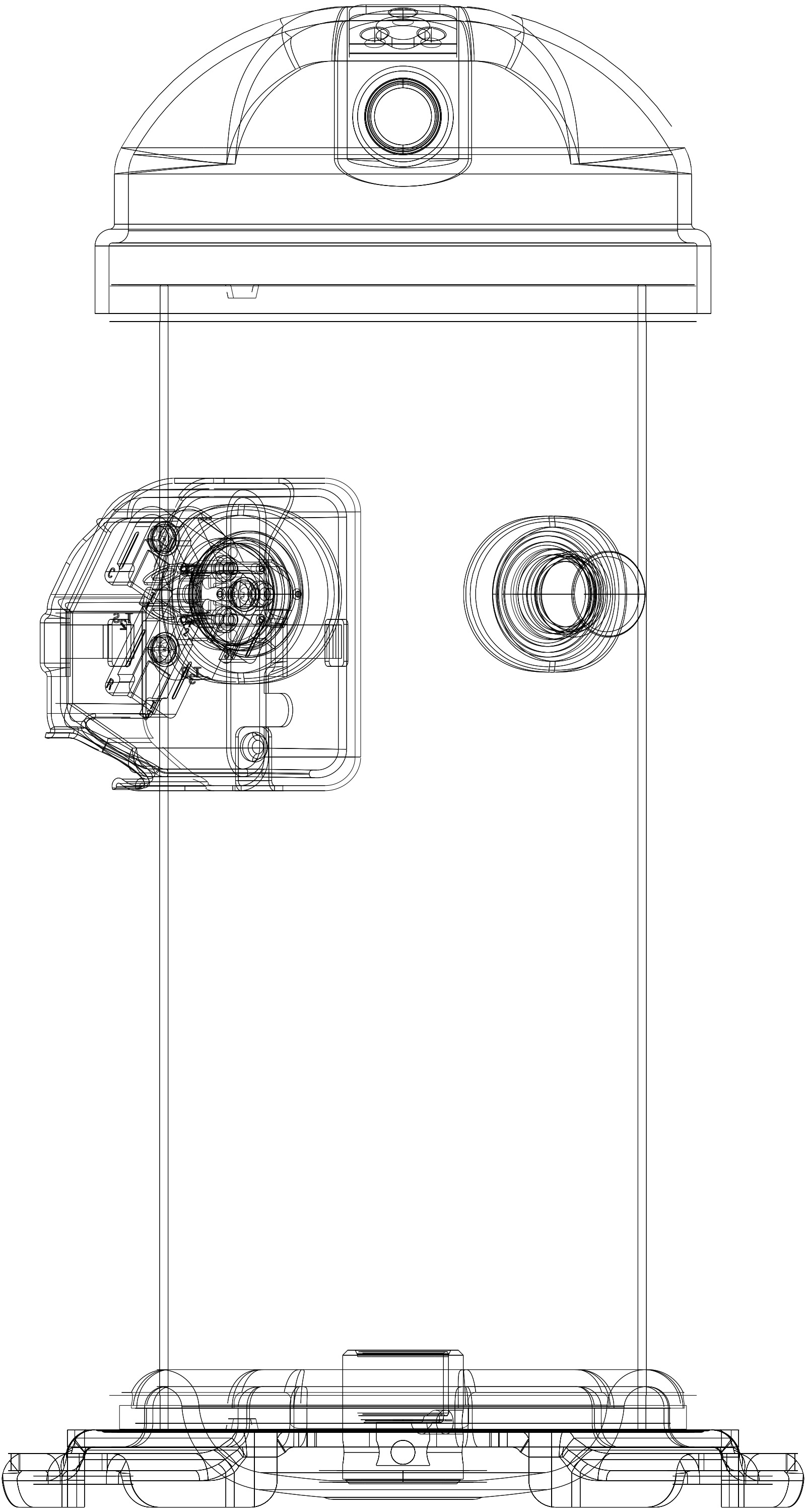

Compressor Scroll HLP081T4LC6 380v POE Oil Stub Tube
Contact us for more information
Compressor Scroll HLP081T4LC6 380v POE Oil Stub Tube
Product number:
RDM4623
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|---|
| Colour : | Blue |
| Model Number : | 121L1781 |
| Type : | HLP |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 380-415/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 110.94 cm³ |
| Technique : | Scroll |
Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 422 mm |
| Discharge Connection Pipe Size : | 3/4 in |
| Discharge Line Connection Size : | 3/4 in |
| Suction Connection Height : | 280 mm |
| Suction Connection Pipe Size : | 7/8 in |
| Suction Line Connection Size : | 7/8 in |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP22 |
| LRA : | 87 A |
| MCC : | 17 A |
| RLA : | 11 A |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Diameter : | 184 mm |
|---|---|
| Height : | 455 mm |
| Length : | 239 mm |
| Weight : | 37.00 kg |
| Width : | 239 mm |
Oil
| Oil Charge : | 1.57 L |
|---|---|
| Oil Type : | PVE |
Refrigerant
| Max Refrigerant Charge : | 5.44 kg |
|---|---|
| Refrigerant : | R407C |
| File name | Extension | Size |
|---|---|---|
| Safety Data Sheet | 137 KB | |
| Conformity Declaration | 218.64 KB | |
| Conformity Declaration | 158.36 KB | |
| Conformity Declaration | 393.53 KB | |
| Conformity Declaration | 915.78 KB | |
| Conformity Declaration | 1.3 MB | |
| Installation Manual | 677.23 KB | |
| Conformity Declaration | 671.76 KB | |
| Conformity Declaration | 1.16 MB |
