Description

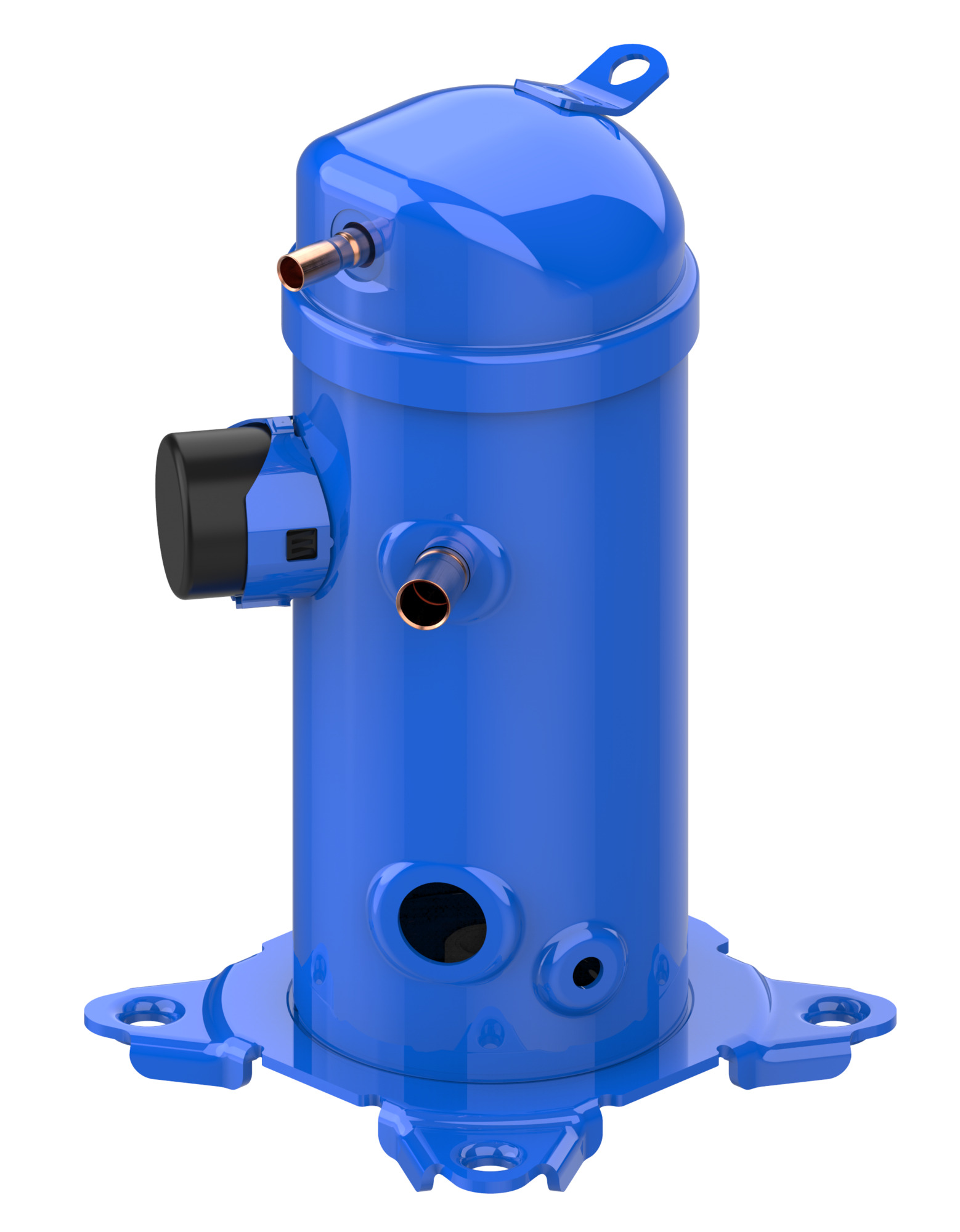

Compressor Scroll HRP040T5LP6 220v POE Oil Stub Tube
Contact us for more information
Compressor Scroll HRP040T5LP6 220v POE Oil Stub Tube
Maneurop
Product number:
RDM4605
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|---|
| Colour : | Blue |
| Fitting Standard : | ODF |
| Gauge Port HP : | None |
| Gauge Port LP : | None |
| Model Number : | 121L1929 |
Additional Info
| Family : | HRP |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 220-240/1/50 V/Ph/Hz |
|---|---|
| Swept Volume : | 54.4 cm³ |
Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 379 mm |
| Discharge Connection Pipe Size : | 1/2 in |
| Discharge Line Connection Size : | 1/2 in |
| Suction Connection Height : | 250 mm |
| Suction Connection Pipe Size : | 3/4 in |
| Suction Line Connection Size : | 3/4 in |
Electrical
| Capacity Of Capacitor A : | 70 µF |
|---|---|
| Capacity Of Capacitor B : | 145-175 µF |
| IP Class : | IP22 |
| LRA : | 97 A |
| RLA : | 16 A |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Height : | 413 mm |
|---|---|
| Length : | 239 mm |
| Net Weight : | 30.5 kg |
| Width : | 239 mm |
Motor
| Motor Protector : | Internal overload protector |
|---|
Oil
| Oil Charge : | 1.06 L |
|---|---|
| Oil Equalization : | None |
| Oil Type : | PVE |
Refrigerant
| Refrigerant : | R407C |
|---|---|
| Refrigerant Charge : | 3.63 kg |
Standards
| Approval : | CE, UKCA, UL |
|---|
