Compressor Scroll SH184A4AL 380v POE Oil Stub Tube
Contact us for more information
Compressor Scroll SH184A4AL 380v POE Oil Stub Tube
Product number:
RDM5506
| Product Group : | Danfoss Scroll for Air Conditioning R410A |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning R410A |
|---|---|
| Colour : | Blue |
| Model Number : | SH184A4ALC |
| Type : | SH |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Displacement : | 170.3 m³/h |
|---|---|
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
| Swept Volume : | 170.30 cm³ |
| Technique : | Scroll |

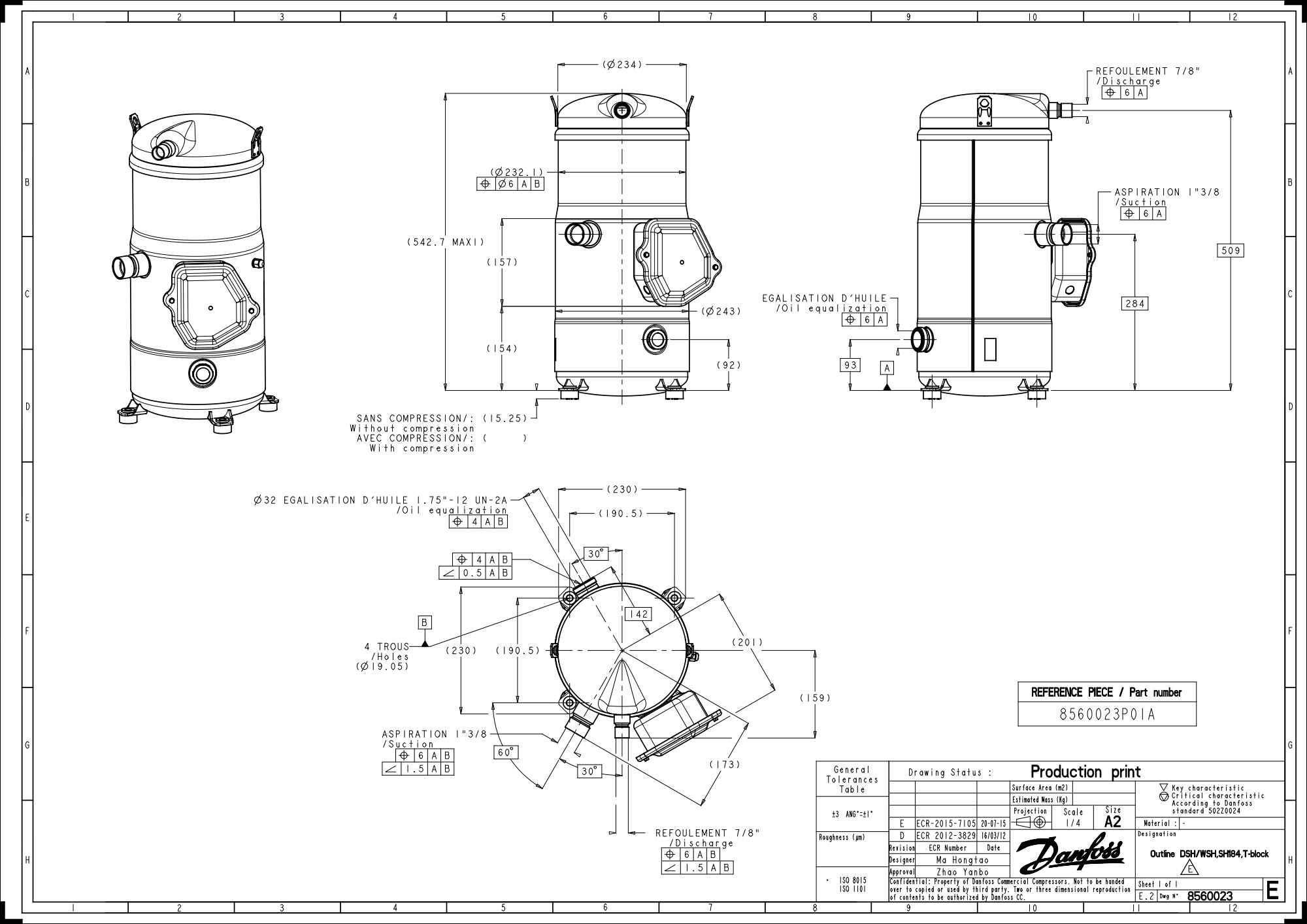

Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 525 mm |
| Discharge Connection Pipe Size : | 7/8 in |
| Discharge Line Connection Size : | 7/8 in |
| Suction Connection Height : | 300 mm |
| Suction Connection Pipe Size : | 1 3/8 in |
| Suction Line Connection Size : | 1 3/8 in |
Cooling Capacity
| Cooling Capacity : | 184.3 kBtu/h |
|---|---|
| Cooling Capacity at 50Hz : | 39.8 kW |
| Cooling Capacity at 60Hz : | 54 kW |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP54 |
| LRA : | 197 A |
| MCC : | 38.6 A |
| Max Operating Current : | 36 A |
| Phase : | 3 |
| Power Supply : | 400/3/50 V/Ph/Hz |
| RLA : | 27.6 A |
| Voltage : | 400/460 V |
Heating Capacity
| Heating Capacity 50Hz : | 39.4 kW |
|---|
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428980791 |
| Gross Weight : | 76.12 kg |
Measurements
| Diameter : | 243 mm |
|---|---|
| Height : | 555 mm |
| Net Weight : | 72 kg |
| Weight : | 72.00 kg |
Oil
| Oil Charge : | 3.60 L |
|---|---|
| Oil Type : | POE |
Pressure
| Higher Active Pressure : | 48.7 Bar |
|---|---|
| Lower Active Pressure : | 33.3 Bar |
Refrigerant
| Max Refrigerant Charge : | 7.90 kg |
|---|---|
| Refrigerant : | R410A |
| Refrigerant Charge : | 7.9 kg |
