Description

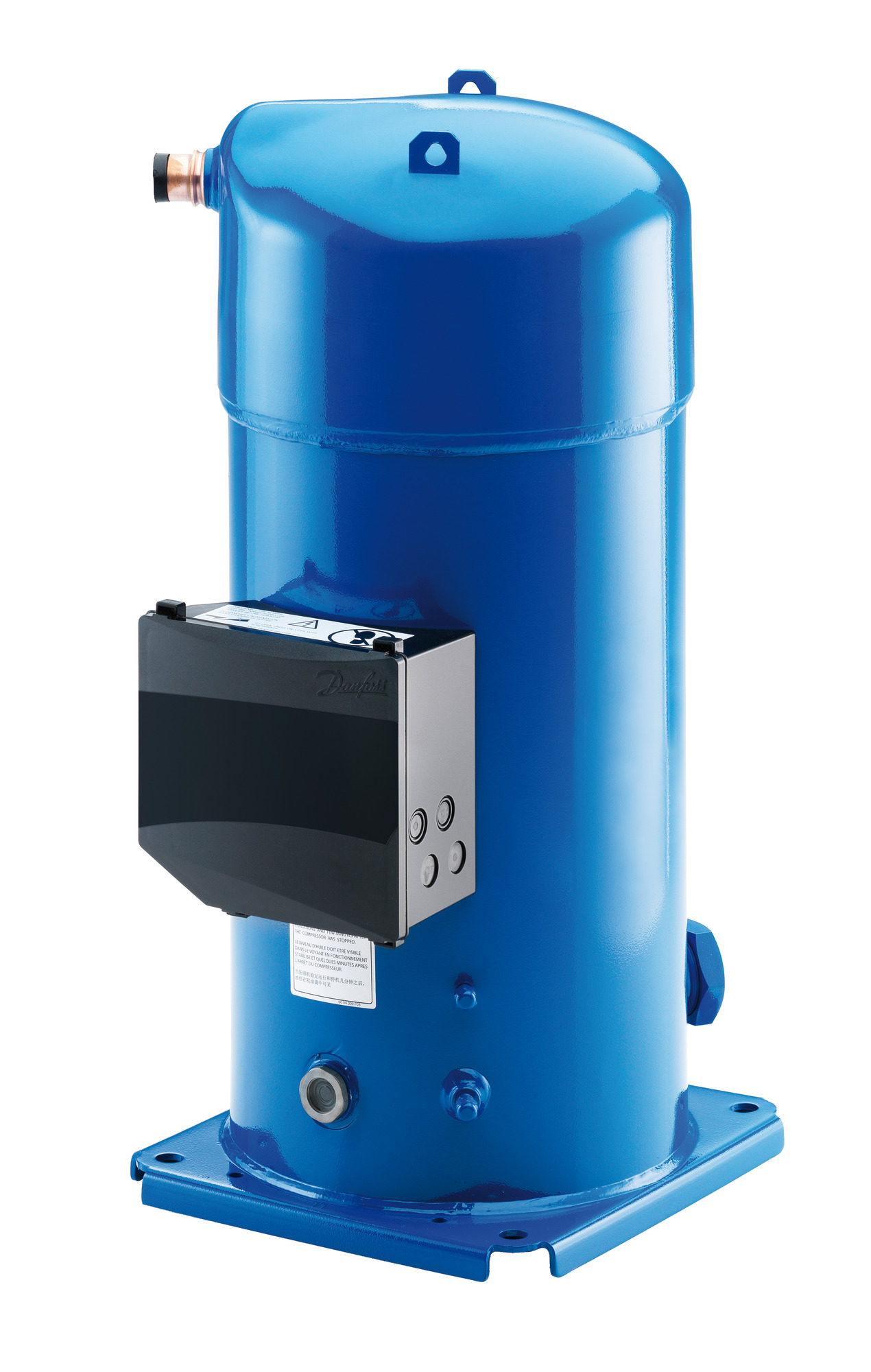

Compressor Scroll SH300B4AAE POE Oil Stub Tube R410A
Contact us for more information
Compressor Scroll SH300B4AAE POE Oil Stub Tube R410A
Product number:
RDM5510
| Product Group : | Danfoss Scroll for Air Conditioning R410A |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning R410A |
|---|---|
| Colour : | Blue |
| Model Number : | SH300B4AAE |
| Type : | SH |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 285.50 cm³ |
| Technique : | Scroll |
Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 664 mm |
| Discharge Connection Pipe Size : | 1 1/8 in |
| Discharge Line Connection : | 1 1/8 in |
| Suction Connection Height : | 331 mm |
| Suction Connection Pipe Size : | 1 5/8 in |
| Suction Line Connection : | 1 5/8 in |
Cooling Capacity
| Cooling Capacity : | 317.41 kBtu/h |
|---|---|
| Cooling Capacity at 50Hz : | 69 kW |
| Cooling Capacity at 60Hz : | 93 kW |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP54 |
| LRA : | 260 A |
| MCC : | 65 A |
| Phase : | 3 |
| RLA : | 46.4 A |
| Voltage : | 400/460 V |
Heating Capacity
| Heating Capacity 50Hz : | 68.5 kW |
|---|
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | FRA |
| EAN : | 5702428585347 |
| Gross Weight : | 163.08 kg |
Measurements
| Diameter : | 333 mm |
|---|---|
| Height : | 723 mm |
| Net Weight : | 155.66 kg |
| Weight : | 155.66 kg |
Oil
| Oil Charge : | 6.70 L |
|---|
Pressure
| Higher Active Pressure : | 45 Bar |
|---|---|
| Lower Active Pressure : | 30.2 Bar |
Refrigerant
| Max Refrigerant Charge : | 13.50 kg |
|---|---|
| Refrigerant : | R410A |
| Refrigerant Charge : | 13.5 kg |
