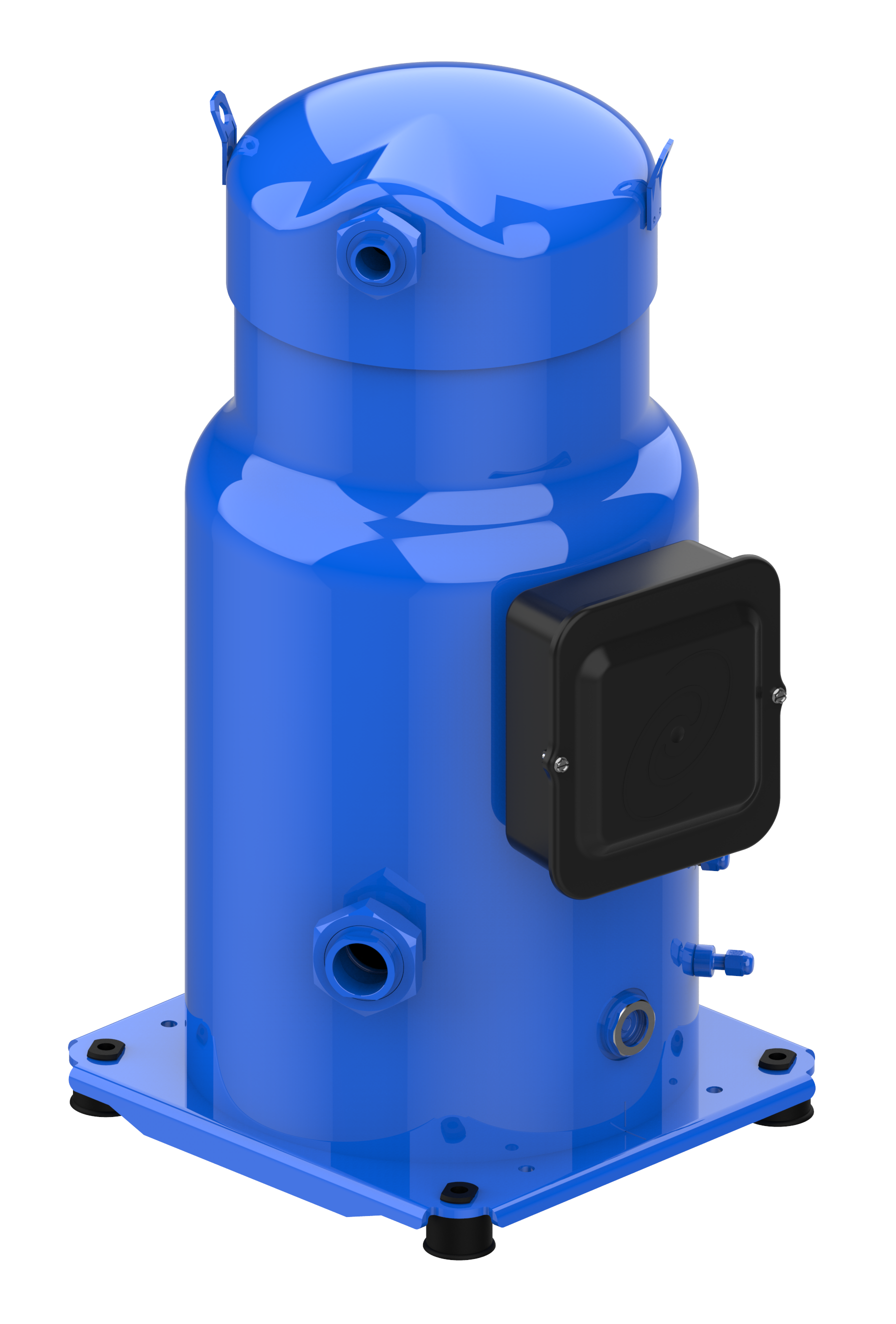

Compressor Scroll SM185-4RI Stub Tube
Contact us for more information
Compressor Scroll SM185-4RI Stub Tube
Product number:
RDM5000
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning |
|---|---|
| Colour : | Blue |
| Model Number : | SM185S4RC |
| Type : | SM |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 249.90 cm³ |
| Technique : | Scroll |
Connections
| Connection Type : | Rotolock |
|---|---|
| Discharge Connection Height : | 643 mm |
| Discharge Connection Pipe Size : | 7/8 in |
| Discharge Connection Size : | 1 3/4 in |
| Discharge Line Connection : | 1 3/4 in |
| Suction Connection Height : | 180 mm |
| Suction Connection Pipe Size : | 1 3/8 in |
| Suction Connection Size : | 2 1/4 in |
| Suction Line Connection : | 2 1/4 in |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP54 |
| LRA : | 175 A |
| MCC : | 35 |
| Max Current : | 35 A |
| Max Operating Current : | 35 A |
| Power Supply : | 380-400/3/50-60 V/Ph/Hz |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | FRA |
| EAN : | 5702428980418 |
| Gross Weight : | 120 kg |
Measurements
| Diameter : | 317 mm |
|---|---|
| Height : | 678 mm |
| Weight : | 102.30 kg |
Oil
| Oil Charge : | 6.20 L |
|---|---|
| Oil Type : | Mineral |
Refrigerant
| Max Refrigerant Charge : | 13.50 kg |
|---|---|
| Refrigerant : | R22 |
