Compressor Scroll SY380A4CBI Stub Tube
Contact us for more information
Compressor Scroll SY380A4CBI Stub Tube
Product number:
RDM6304
| Product Group : | Danfoss Scroll |
|---|
| Capacity Control : | Fixed speed |
|---|---|
| Colour : | Blue |
| Commodity Code : | 84143081 |
| Connection Type : | Brazed |
| Country Of Origin : | FRA |

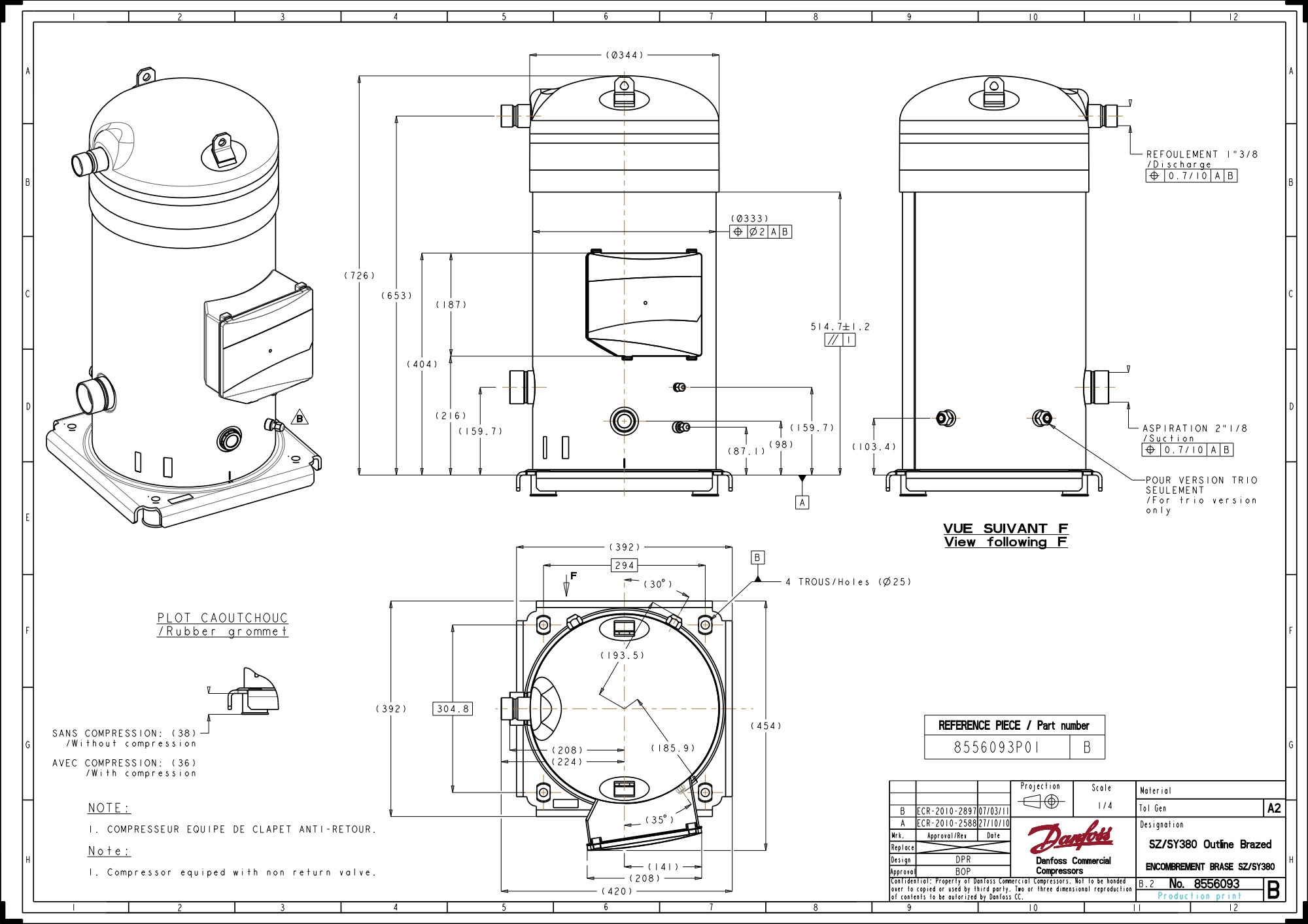

| Diameter : | 344 mm |
| Discharge Connection Height : | 654 mm |
| Discharge Connection Pipe Size : | 1 3/8 in |
| Discharge Connection Size : | 1 3/8 in |
| EAN : | 5702428660563 |
| Frequency : | 50/60 Hz |
| Gross Weight : | 179 kg |
| Height : | 727 mm |
| IP Class : | IP54 |
| LRA : | 300 A |
| MCC : | 79 A |
| Max Refrigerant Charge : | 20.00 kg |
| Model Number : | SY380A4CBI |
| Oil Charge : | 8.40 L |
| Power Supply Compressor : | 380-415/3/50 460/3/60 V/Ph/Hz |
| Product Group : | Danfoss Scroll |
| RLA : | 56.4 A |
| Refrigerant : | R22, R134a, R407C, R513A |
| Suction Connection Height : | 196 mm |
| Suction Connection Pipe Size : | 2 1/8 in |
| Suction Connection Size : | 2 1/8 in |
| Swept Volume : | 531.20 cm³ |
| Technique : | Scroll |
| Type : | SY |
| Weight : | 163.66 kg |
| File name | Extension | Size |
|---|---|---|
| Installation Manual | 1.74 MB | |
| Safety data sheet | 595.71 KB | |
| Conformity Declaration | 4.47 MB | |
| Conformity Declaration | 449.83 KB | |
| Conformity Declaration | 915.78 KB | |
| Conformity Declaration | 1.16 MB | |
| Conformity Declaration | 671.76 KB | |
| Conformity Declaration | 218.64 KB | |
| Conformity Declaration | 261.28 KB | |
| Conformity Declaration | 393.53 KB | |
| Conformity Declaration | 1.17 MB | |
| Conformity Declaration | 384.92 KB | |
| Conformity Declaration | 1.37 MB |
