Description
RT260A Diff. Pressure Switch M/9
Contact us for more information

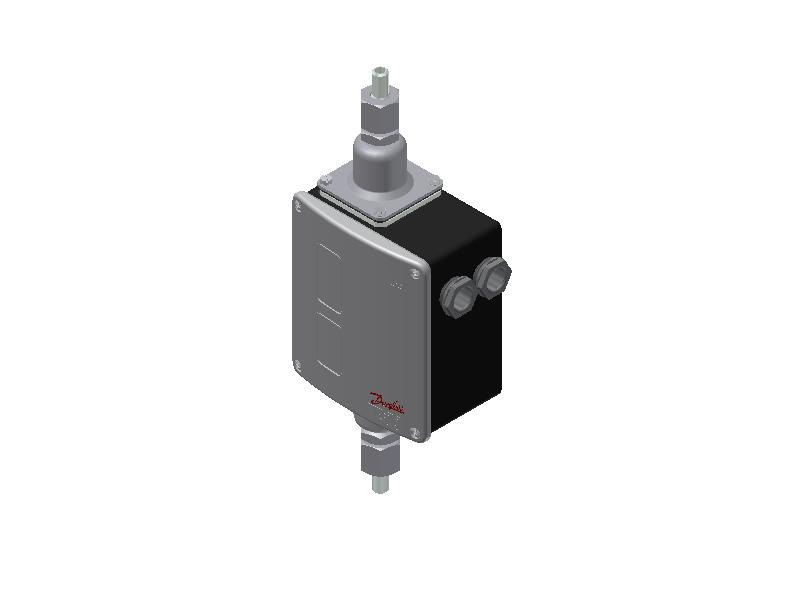

Differential pressure switch, RT260A
Danfoss
Product number:
RDD4090
| Product Group : | Danfoss Switches & Thermostats |
|---|
General Information
| Product Group : | Danfoss Switches & Thermostats |
|---|---|
| Type : | RT260A |
Additional Info
| Family : | RT |
|---|
Connections
| Connection Size : | 3/8 in |
|---|---|
| Pressure Connection Size : | 3/8 in |
| Pressure Connection Type : | G |
Electrical
| Contact Function : | SPDT |
|---|---|
| Electric Connection : | Female Screwed cable entry |
| Electric Connection Size : | 2xPg13.5 |
| IP Class : | IP66 |
Logistical Information
| Commodity Code : | 90322000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428042840 |
| Gross Weight : | 1.27 kg |
Measurements
| Weight : | 1.02 kg |
|---|
Pressure
| Diff Pressure Range : | 0.50-4.00 Bar |
|---|---|
| Max Operating Pressure : | 22.0 Bar |
Standards
| Approval : | CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -50-70 °C |
|---|
