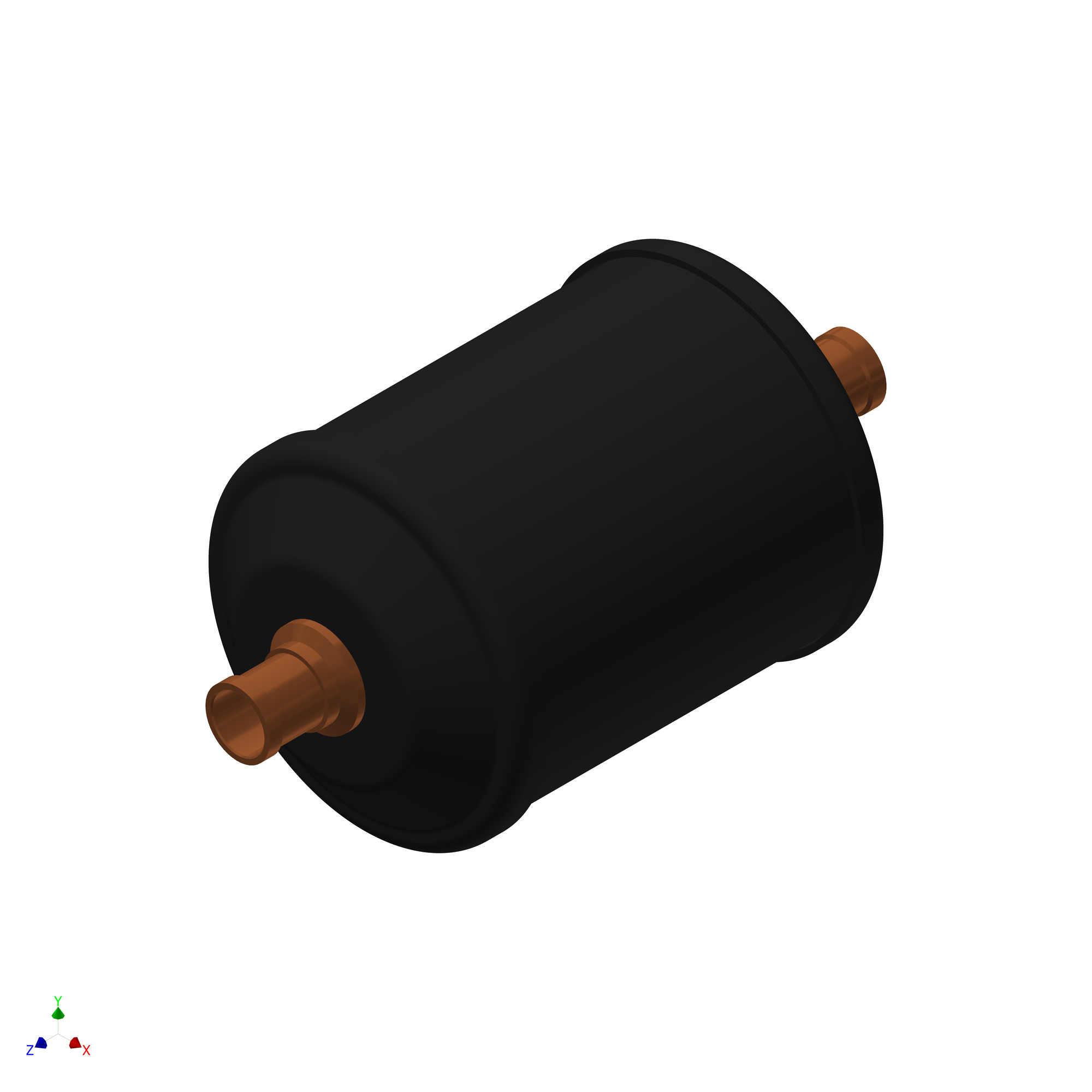

Drier 1/2" Solder DB 164S BI-Bi-Flow
Contact us for more information
Drier 1/2" Solder DB 164S BI-Bi-Flow
Product number:
RDG7540
| Product Group : | Drier Bi Flow |
|---|
| Acid Capacity : | 1.86 g |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Approval : | UL |
| Body Material : | Steel |
| Capacity : | R32: 30.0 kW, R134a: 19.7 kW, R290: 23.7 kW, R404A: 13.8 kW, R407C: 20.2 kW, R410A: 20.5 kW, R507: 13.4 kW |
| Commodity Code : | 84212980 |
| Connection Material : | Copper-plated steel |
| Connection Type : | Solder, ODF |
| Core : | Solid core |
| Core Size : | 16 cu.in. |
| Country Of Origin : | MEX |
| Drying Capacity 24°C (Drops of Water) : | R32: 223, R134a: 265, R290: 210, R404A: 276, R407C: 257, R410A: 240, R507: 289 |
| Drying Capacity 52°C (Drops of Water) : | R32: 205, R134a: 243, R290: 168, R404A: 261, R407C: 237, R410A: 213, R507: 260 |
| EAN : | 5702428105552 |
| Family : | DCB |
| Flow Capacity kW : | R32: 30.0, R134a: 19.7, R290: 23.7, R404A: 13.8, R407C: 20.2, R410A: 20.5, R507: 13.4 |
| Flow Direction Indicator : | Label printed 1-way arrow |
| Fluid Group : | 2 |
| Gross Weight : | 0.973 kg |
| Inlet Connection Size : | 1/2 in |
| Inlet Type : | Solder, ODF |
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| Max Operating Pressure : | 46.0 Bar |
| Max Temperature : | 70 °C |
| Min Temperature : | -40 °C |
| Model Number : | 023Z1466 |
| Net Weight : | 0.91 kg |
| Outlet Connection Size : | 1/2 in |
| Outlet Type : | Solder, ODF |
| Product Group : | Drier Bi Flow |
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
| Shell Volume : | 0.42 L |
| Solid Core Surface : | 19.93 in², 129 cm² |
| Solid Core Volume : | 4.89 in³, 80 cm³ |
| Specification Key : | DCB 164S |
| Temperature Range : | -40-70 °C |
| Type : | Biflow filter drier |
| Volume : | 0.312 L |
| Weight : | 0.91 kg |
