Description

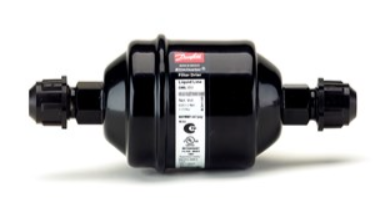

Drier 1/2" Solder DCL 084S Liquid Line
Contact us for more information
Drier 1/2" Solder DCL 084S Liquid Line
Product number:
RDG7307
| Product Group : | Emerson |
|---|
General Information
| Product Group : | Emerson |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Model Number : | 023Z500891 |
| Specification Key : | DCL 163 |
| Type : | Liquid line filter drier |
Capacity
| Acid Capacity : | 3.11 g |
|---|---|
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Connection Size : | 3/8 in |
|---|---|
| Connection Type : | FLARE |
| Inlet Connection Size : | 3/8 in, 10.0 mm |
| Inlet Type : | FLARE |
| Outlet Connection Size : | 3/8 in, 10.0 mm |
| Outlet Type : | FLARE |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 16 cu.in. |
| Flow Capacity kW : | R32: 27.6, R134a: 18.1, R290: --, R404A: 12.7, R407C: 18.6, R410A: 18.9, R507: 12.4 |
| Shell Volume : | 0.35 L |
| Solid Core Surface : | 28.34 in², 183 cm² |
| Solid Core Volume : | 7.84 in³, 128 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 373, R134a: 443, R290: --, R404A: 461, R407C: 430, R410A: 401, R507: 483 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 343, R134a: 405, R290: --, R404A: 437, R407C: 396, R410A: 356, R507: 434 |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | IND |
| EAN : | 5702428650052 |
| Gross Weight : | 0.792 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Net Weight : | 0.68 kg |
|---|---|
| Volume : | 0.226 L |
| Weight : | 0.68 kg |
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
