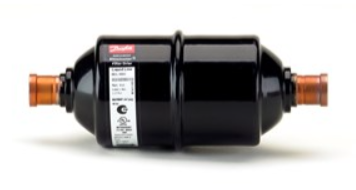

Drier 1/2" Solder DCL 084S Liquid Line

Product number: RDG7405
PLEASE LOGIN TO SEE PRICES
Product Group : Emerson
General Information
Product Group : Emerson
Activated Alumina / Molec. Sieve. : 20/80 %
Model Number : 023Z451691
Specification Key : DCL 084S
Type : Liquid Line Drier
Capacity
Acid Capacity : 1.38 g
Liquid Capacity Conditions (ARI 710-2009) : Delta p=0.07bar, tliq= 30°C, tvap=-15°C
Connections
Connection Size : 1/2"
Connection Type : Solder
Inlet Connection Size : 1/2 in
Inlet Type : SOLDER, ODF
Outlet Connection Size : 1/2 in
Outlet Type : SOLDER, ODF
Driers
Core : Solid core
Core Size : 08 cu.in.
Flow Capacity kW : R32: 33.2, R134a: 21.8, R290: 26.2, R404A: 15.3, R407C: 22.3, R410A: 22.6, R507: 14.8
Shell Volume : 0.17 L
Solid Core Surface : 18.29 in², 118 cm²
Solid Core Volume : 3.57 in³, 59 cm³
Drying Capacity
Drying Capacity 24°C (Drops of Water) : R32: 165, R134a: 196, R290: 155, R404A: 204, R407C: 190, R410A: 178, R507: 214
Drying Capacity 52°C (Drops of Water) : R32: 152, R134a: 180, R290: 124, R404A: 194, R407C: 176, R410A: 158, R507: 192
Logistical Information
Commodity Code : 84212980
Country Of Origin : IND
EAN : 5702428651523
Gross Weight : 0.405 kg
Material
Body Material : Steel
Connection Material : Copper-plated steel
Measurements
Net Weight : 0.31 kg
Volume : 0.114 L
Weight : 0.31 kg
Pressure
Max Operating Pressure : 46.0 Bar
Refrigerant
Refrigerant : R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E)
Standards
Approval : UL
Temperature
Max Temperature : 70 °C
Min Temperature : -40 °C
Temperature Range : -40-70 °C
Valves
Flow Direction Indicator : Label printed 1-way arrow
Fluid Group : 2
Description
Drier 1/2" Solder DCL 084S Liquid Line
