Description

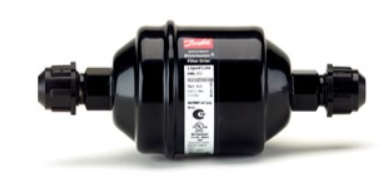

Drier 3/8" Flare DCL 053 Liquid Line
Contact us for more information
Drier 3/8" Flare DCL 053 Liquid Line
Product number:
RDG7302
| Product Group : | Danfoss |
|---|
| Acid Capacity : | 0.85 g |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Approval : | UL |
| Body Material : | Steel |
| Commodity Code : | 84212980 |
| Connection Material : | Steel |
| Connection Size : | 3/8 in |
| Connection Type : | Flare |
| Core : | Solid core |
| Core Size : | 05 cu.in. |
| Country Of Origin : | IND |
| Drying Capacity 24°C (Drops of Water) : | R32: 102, R134a: 122, R290: --, R404A: 127, R407C: 118, R410A: 110, R507: 133 |
| Drying Capacity 52°C (Drops of Water) : | R32: 94, R134a: 111, R290: --, R404A: 120, R407C: 109, R410A: 98, R507: 119 |
| EAN : | 5702428651332 |
| Flow Capacity kW : | R32: 24.3, R134a: 16.0, R290: --, R404A: 11.2, R407C: 16.3, R410A: 16.6, R507: 10.9 |
| Flow Direction Indicator : | Label printed 1-way arrow |
| Fluid Group : | 2 |
| Gross Weight : | 0.332 kg |
| Inlet Connection Size : | 3/8 in, 10.0 mm |
| Inlet Type : | Flare |
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| Max Operating Pressure : | 46.0 Bar |
| Max Temperature : | 70 °C |
| Min Temperature : | -40 °C |
| Model Number : | 023Z500391 |
| Net Weight : | 0.27 kg |
| Outlet Connection Size : | 3/8 in, 10.0 mm |
| Outlet Type : | Flare |
| Product Group : | Danfoss |
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
| Shell Volume : | 0.12 L |
| Solid Core Surface : | 12.72 in², 82 cm² |
| Solid Core Volume : | 2.25 in³, 37 cm³ |
| Specification Key : | DCL 053 |
| Temperature Range : | -40-70 °C |
| Type : | Liquid line filter drier |
| Volume : | 0.085 L |
| Weight : | 0.27 kg |
