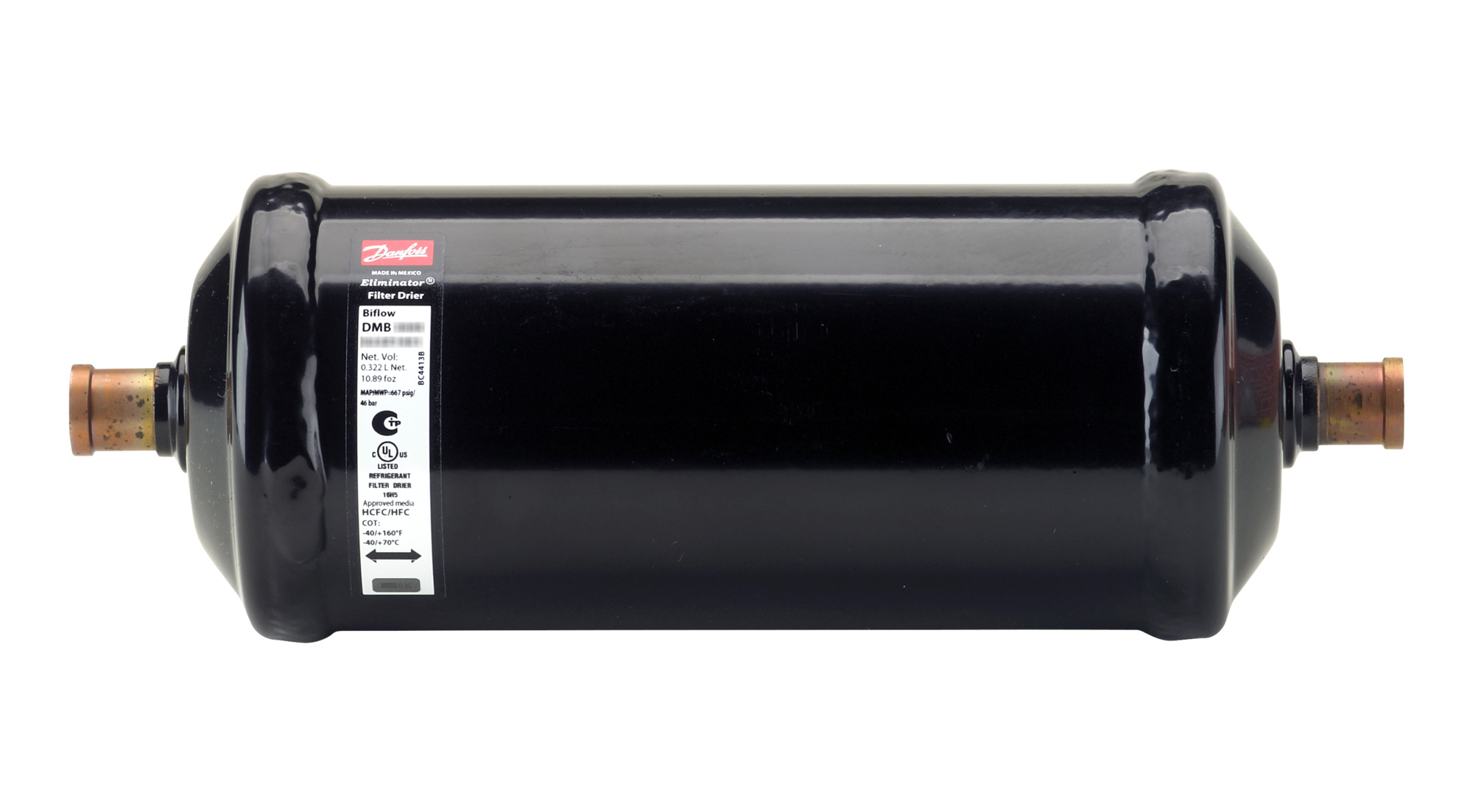

Drier 5/8" Solder DB 305S BI-Bi-Flow
Contact us for more information
Drier 5/8" Solder DB 305S BI-Bi-Flow
Danfoss
Product number:
RDG7544
| Product Group : | Drier Bi Flow |
|---|
General Information
| Product Group : | Drier Bi Flow |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Model Number : | 023Z1469 |
| Specification Key : | DCB 305S |
| Type : | Biflow filter drier |
Additional Info
| Family : | DCB |
|---|
Capacity
| Acid Capacity : | 4.51 g |
|---|---|
| Capacity : | R32: 43.2 kW, R134a: 28.3 kW, R290: 34.1 kW, R404A: 19.9 kW, R407C: 29.0 kW, R410A: 29.5 kW, R507: 19.3 kW |
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Connection Size : | 5/8 in, 16 mm |
|---|---|
| Connection Type : | Solder, ODF |
| Inlet Connection Size : | 5/8 in |
| Inlet Type : | SOLDER, ODF |
| Outlet Connection Size : | 5/8 in |
| Outlet Type : | SOLDER, ODF |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 30 cu.in. |
| Flow Capacity kW : | R32: 43.2, R134a: 28.3, R290: 34.1, R404A: 19.9, R407C: 29.0, R410A: 29.5, R507: 19.3 |
| Shell Volume : | 0.73 L |
| Solid Core Surface : | 42.60 in², 275 cm² |
| Solid Core Volume : | 12.43 in³, 204 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 541, R134a: 643, R290: 509, R404A: 669, R407C: 624, R410A: 582, R507: 701 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 498, R134a: 588, R290: 407, R404A: 634, R407C: 575, R410A: 518, R507: 631 |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | MEX |
| EAN : | 5702428158299 |
| Gross Weight : | 1.473 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Copper-plated steel |
Measurements
| Net Weight : | 1.39 kg |
|---|---|
| Volume : | 0.501 L |
| Weight : | 1.39 kg |
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 1.44 MB | |
| Conformity Declaration | 245.66 KB | |
| Conformity Declaration | 548.69 KB | |
| Conformity Declaration | 1.83 MB | |
| Installation Manual | 399.89 KB |
