Description

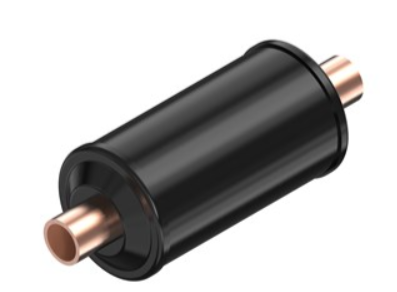

Drier 7/8" Solder DCL 417S Liquid Line
Contact us for more information
Drier 7/8" Solder DCL 417S Liquid Line
Product number:
RDG7424
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Model Number : | 023Z0106 |
| Specification Key : | DCL 417S |
| Type : | Solder Liquid Line Drier |
Additional Info
| Family : | DCL |
|---|
Capacity
| Acid Capacity : | 8.49 g |
|---|---|
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Connection Size : | 7/8 |
|---|---|
| Connection Type : | Solder |
| Inlet Connection Size : | 7/8 in |
| Inlet Type : | SOLDER, ODF |
| Outlet Connection Size : | 7/8 in |
| Outlet Type : | SOLDER, ODF |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 41 cu.in. |
| Flow Capacity kW : | R32: 125.2, R134a: 82.2, R290: 99.0, R404A: 57.8, R407C: 84.2, R410A: 85.5, R507: 56.1 |
| Shell Volume : | 0.97 L |
| Solid Core Surface : | 64.26 in², 415 cm² |
| Solid Core Volume : | 21.69 in³, 355 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 1019, R134a: 1210, R290: --, R404A: 1261, R407C: 1175, R410A: 1096, R507: 1321 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 937, R134a: 1108, R290: --, R404A: 1194, R407C: 1083, R410A: 975, R507: 1188 |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | MEX |
| EAN : | 5702428159463 |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Copper |
Measurements
| Net Weight : | 1.81 kg |
|---|---|
| Volume : | 0.620 L |
| Weight : | 1.81 kg |
Pressure
| Max Operating Pressure : | 35.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R463A, R507A, R513A, R515B, R600, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
