Description

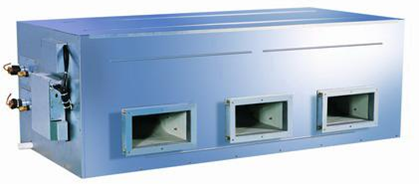

Ducted Indoor Unit 42LDU-140HN1
Contact us for more information
Ducted Indoor Unit 42LDU-140HN1
Product number:
42LDU-140HN1
| Product Group : | Carrier Ducted fixed speed -indoor |
|---|
General Information
| Product Group : | Carrier Ducted fixed speed -indoor |
|---|---|
| Model Number : | 22023011000815 |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|
Air Volume/Air Flow
| Air Flow : | 8500 m³/h |
|---|
Connections
| Pipe Diameter Gas Side : | 32 mm |
|---|---|
| Pipe Diameter Liquid Side : | 16 mm |
Cooling Capacity
| Cooling Capacity : | 27200 W |
|---|
Electrical
| Input (Cooling) : | 16300 W |
|---|---|
| Input (Heating) : | 15700 W |
| Max Current : | 12.1 A |
| Max Power Input : | 2730 W |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 220-240 V |
Energy Efficiency/Performance
| COP : | 2.8 |
|---|---|
| EER : | 2.42 |
Heating Capacity
| Heating Capacity : | 30700 W |
|---|
Logistical Information
| Gross Weight : | 200 kg |
|---|---|
| Packaging Height : | 800 mm |
| Packaging Length : | 964 mm |
| Packaging Width : | 2095 mm |
Measurements
| Depth : | 858 mm |
|---|---|
| Height : | 668 mm |
| Net Weight : | 188 kg |
| Width : | 1828 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 50 m |
| Refrigerant Pipe Size Gas : | 32 mm |
| Refrigerant Pipe Size Liquid : | 16 mm |
Refrigerant
| Refrigerant : | R410A |
|---|
Wire
| Wire Diameter Power Supply Cable : | 3x2.5 mm² |
|---|
