Description

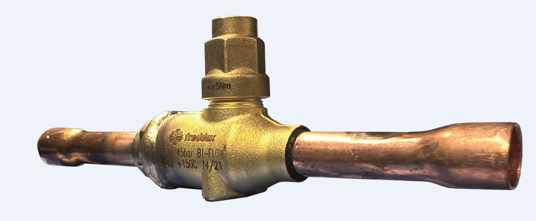

FREDDOX BALL VALVE 16 MM-5/8"
Contact us for more information
FREDDOX BALL VALVE -16 MM -5/8"
Product number:
FBV0095
| Product Group : | Freddox Ball Valves |
|---|
General Information
| Product Group : | Freddox Ball Valves |
|---|---|
| Model Number : | 601017661FDX |
| Type : | BALL VALVE |
| Used For : | Refrigeration industry |
Connections
| Connection Size : | 16 mm |
|---|---|
| Connection Type : | Copper |
| Inlet Connection Size : | 5/8 in, 16 mm |
| Inlet Type : | Pipe |
| Outlet Connection Size : | 5/8 in, 16 mm |
| Outlet Type : | Pipe |
Kv Values
| Kv Value : | 13.0 m³/h |
|---|
Material
| Connection Material : | Copper |
|---|---|
| Material Casing : | Brass |
Pressure
| Max Operating Pressure : | 45 Bar |
|---|---|
| Max Pressure : | 45 Bar |
| Maximum Allowable Pressure : | 45 Bar |
| Test Pressure : | 135 Bar |
Standards
| UL Approved : | No |
|---|
Temperature
| Operating Temperature Range : | -40°C - +150 °C |
|---|---|
| Temperature Range : | -40-150 °C |
Valves
| Ball Port Diameter : | 16 mm |
|---|---|
| Direction : | Biflow |
| Flow : | Bi-Flow |
| Flow Direction Indicator : | Bi-Flow |
| Fluid Group : | 2 |
| Schrader Valve : | No |
