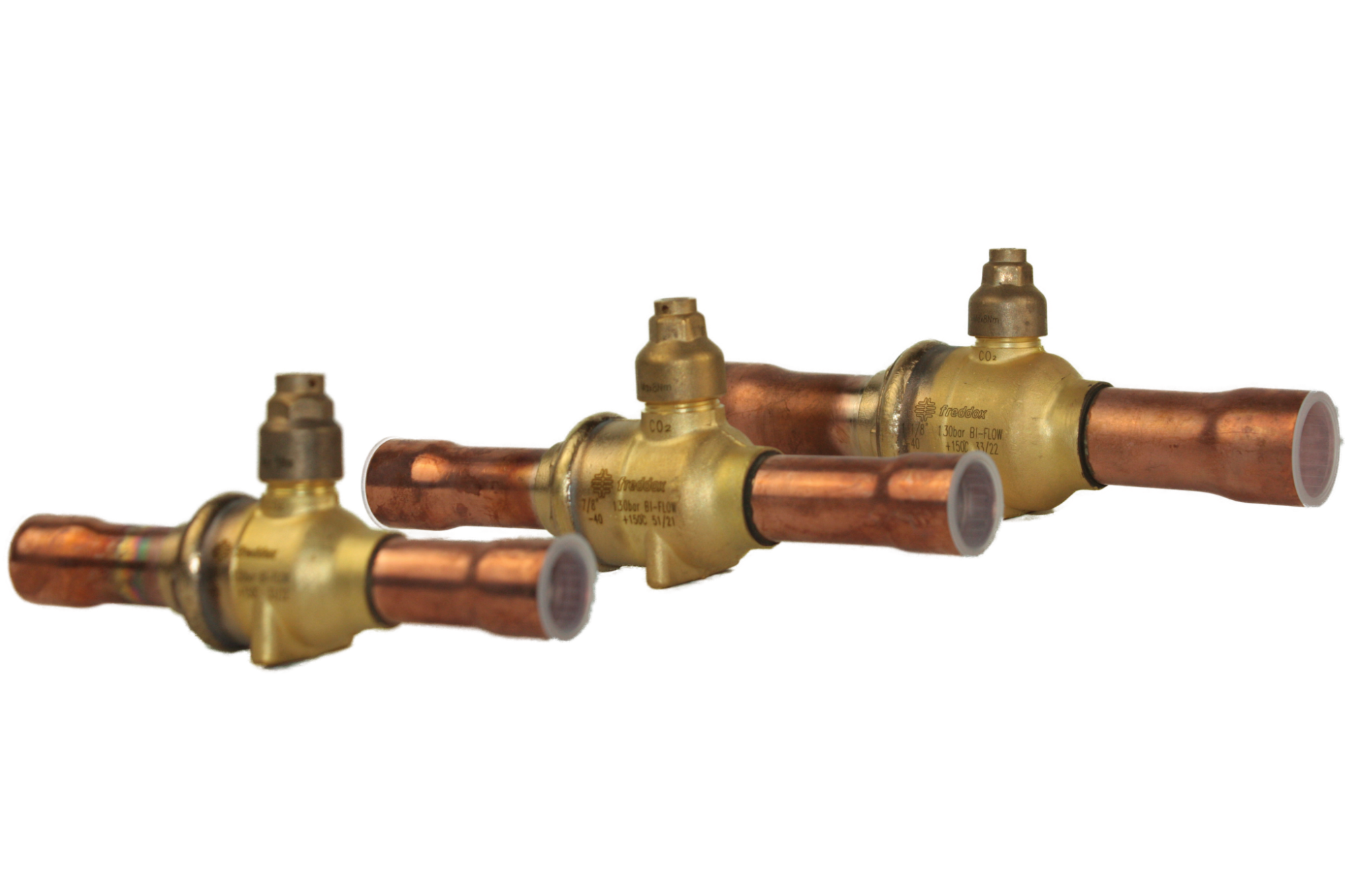

FREDDOX BALL VALVE CO2 120bar 3/4"
Contact us for more information
FREDDOX BALL VALVE -CO2 120bar 3/4"
Product number:
FBV0135
| Product Group : | Freddox Ball Valves |
|---|
General Information
| Product Group : | Freddox Ball Valves |
|---|---|
| Model Number : | 601017792 |
| Type : | BALL VALVE |
| Used For : | HVAC+R Industry |
Connections
| Connection Size : | 3/4 in |
|---|---|
| Connection Type : | Brazed |
| Inlet Connection Size : | 3/4 in |
| Inlet Type : | Pipe |
| Outlet Connection Size : | 3/4 in |
| Outlet Type : | Pipe |
Kv Values
| Kv Value : | 17 m³/h |
|---|
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | K65 |
| Material Casing : | Brass |
Measurements
| Height : | 61 mm |
|---|---|
| Length : | 146 mm |
| Net Weight : | 0.297 kg |
Pressure
| Max Operating Pressure : | 130 Bar |
|---|---|
| Max Pressure : | 130 Bar |
| Maximum Allowable Pressure : | 130 Bar |
| Test Pressure : | 360 Bar |
Refrigerant
| Refrigerant : | CO2 |
|---|
Standards
| UL Approved : | No |
|---|
Temperature
| Max Temperature : | 150 °C |
|---|---|
| Min Temperature : | -40 °C |
| Operating Temperature Range : | -40-150 °C |
| Temperature Range : | -40-150 °C |
Valves
| Ball Port Diameter : | 16 mm |
|---|---|
| Flow : | Bi-Flow |
| Flow Direction Indicator : | Bi-Flow |
| Fluid Group : | II |
| Schrader Valve : | No |
