Description

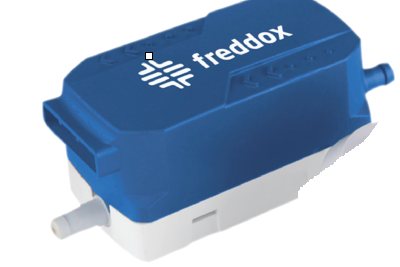

FREDDOX CONDENSATE PUMP 35ML 100/230V-50/60HZ
Contact us for more information
FREDDOX CONDENSATE PUMP- 35ML 100/230V-50/60HZ
Product number:
FDP8204
| Product Group : | Condensate Pumps Freddox |
|---|
General Information
| Product Group : | Condensate Pumps Freddox |
|---|---|
| Colour : | Blue |
| Model Number : | P01-003 |
| Type : | CONDENSATE PUMP |
Condensate Pumps
| Max Discharge Head : | 7 m, 23 ft |
|---|---|
| Max Flow Rate : | 3.2 gph, 12 L/h |
| Max Suction Head : | 2 m, 6.5 ft |
| Tank Volume : | 35 ml |
Electrical
| Power Supply : | 100-230/1/50-60 V/Ph/Hz |
|---|
Measurements
| Height : | 45 mm |
|---|---|
| Length : | 99 mm |
| Weight : | 0.55 kg |
| Width : | 41.5 mm |
Pressure
| Water Flow Pressure : | 12 L/h |
|---|
Sound Power/Pressure
| Sound Power Level : | 20 dB(A) |
|---|
