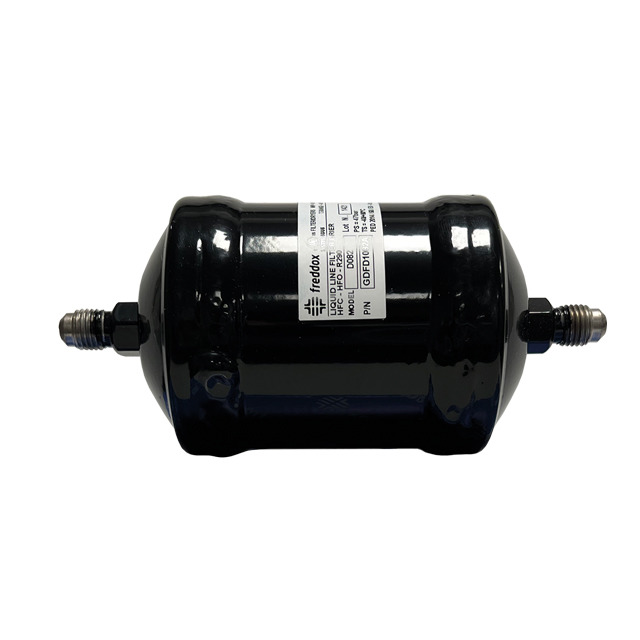

FREDDOX FILTER DRIER SOLID CORE- DSC053S 3/8" ODF

Product number: FFD2002
PLEASE LOGIN TO SEE PRICES
Product Group : Freddox Filter Drier
General Information
Product Group : Freddox Filter Drier
Model Number : DSC053S
Type : FILTER DRIER
Absorption Capacity
Absorption Capacity R134a 24°C [g H2O] : 15.8 kW
Absorption Capacity R134a 52°C [g H2O] : 13.6 kW
Absorption Capacity R404A/R507 24°C [g H2O] : 16.1 kW
Absorption Capacity R404A/R508 52°C [g H2O] : 15 kW
Absorption Capacity R407C 24°C [g H2O] : 12.9 kW
Absorption Capacity R407C 52°C [g H2O] : 10.4 kW
Absorption Capacity R410A 24°C [g H2O] : 14.1 kW
Absorption Capacity R410A 52°C [g H2O] : 11.3
Connections
Connection Size : 3/8 in, 9.52 mm
Connection Type : Solder, ODF
Inlet Connection Size : 3/8 in, 9.52 mm
Inlet Type : Soldering
Outlet Connection Size : 3/8 in, 9.52 mm
Outlet Type : Soldering
Drying Capacity
Drying Capacity R134a 24°C [kg refrigerant] : 16.99
Drying Capacity R134a 52°C [kg refrigerant] : 14.62
Drying Capacity R404A/R507 24°C [kg refrigerant] : 17.31
Drying Capacity R404A/R507 52°C [kg refrigerant] : 16.13
Drying Capacity R407C 24°C [kg refrigerant] : 13.87
Drying Capacity R407C 52°C [kg refrigerant] : 11.18
Drying Capacity R410A 24°C [kg refrigerant] : 15.16
Drying Capacity R410A 52°C [kg refrigerant] : 12.15
Logistical Information
Commodity Code : 84212100
Country Of Origin : CHN
Material
Body Material : Steel
Connection Material : Copper
Measurements
Diameter : 63.5 mm
Length : 116 mm
Weight : 0.500 kg
Pressure
Max Pressure : 47 Bar
R1234yf Performances
Cooling Capacity ∆P 0.07 Bar R1234yf : 13.16 kW
R1234ze Performances
Cooling Capacity ∆P 0.07 Bar R1234ze : 16.03 kW
R134A Performances
Cooling Capacity ∆P 0.07 Bar R134a : 18.15 kW
R32 Performances
Cooling Capacity ∆P 0.07 Bar R32 : 27.99 kW
R404A Performances
Cooling Capacity ∆P 0.07 Bar R404A : 12.94 kW
R407C Performances
Cooling Capacity ∆P 0.07 Bar R407C : 18.71 kW
R410A Performances
Cooling Capacity ∆P 0.07 Bar R410A : 19.18 kW
R448A Performances
Cooling Capacity ∆P 0.07 Bar R448A : 17.26 kW
R449A Performances
Cooling Capacity ∆P 0.07 Bar R449A : 17.02 kW
R450A Performances
Cooling Capacity ∆P 0.07 Bar R450A : 14.49 kW
R452A Performances
Cooling Capacity ∆P 0.07 Bar R452A : 13.10 kW
R507 Performances
Cooling Capacity ∆P 0.07 Bar R507A : 12.57 kW
Refrigerant
Refrigerant : HC, HFC, HFO
Temperature
Temperature Range : -40-80 °C
Description
Freddox filter driers offer a high level of protection for refrigeration and air-conditioning systems liquid Line. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Freddox driers are available in version to be brazed (DSC S), or screwed with male/male (DSC) or female/male (DSC FM) SAE connexions to answer every configuration of installations .
