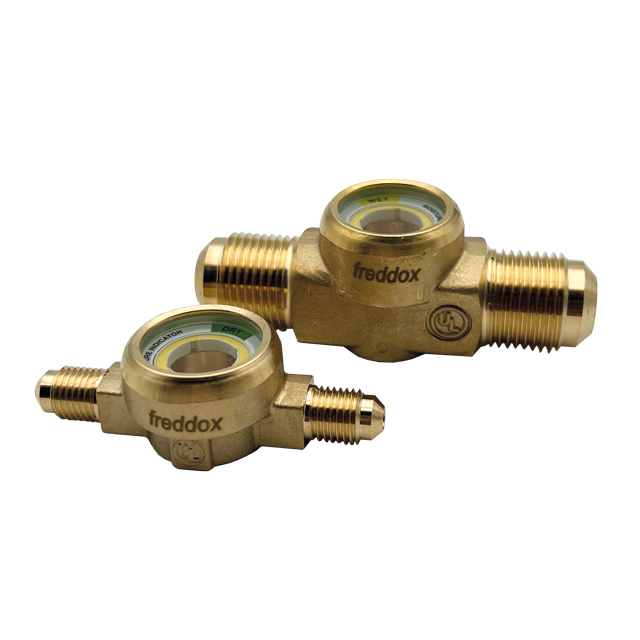

FREDDOX HERMETIC SIGHT GLASS HSG12F 1/2" MM SAE

Product number: FSG1104
PLEASE LOGIN TO SEE PRICES
Product Group : Freddox Sight Glass
General Information
Product Group : Freddox Sight Glass
Model Number : HSG12F
Connections
Connection Size : 1/2 in
Connection Type : Flare
Inlet Connection Size : 1/2 in
Inlet Connection Type : Flare
Outlet Connection Size : 1/2 in
Outlet Connection Type : Flare
Material
Body Material : Brass
Connection Material : Brass
Measurements
Height : 30 mm
Length : 81.5 mm
Net Weight : 0.196 kg
Width : 31.5 mm
Pressure
Max Operating Pressure : 45 Bar
Refrigerant
Refrigerant : HCFC, HFC, HFO
Standards
Approval Standard : UKCA, UL
Temperature
Max Temperature : +120 °C
Min Temperature : -40 °C
Valves
Direction : Bi-Flow
Description
FREDDOX HERMETIC SIGHT GLASS HSG12F 1/2"MM SAE
Freddox HSG sight glasses are moisture and liquid indicators determining the state of the refrigerant and the filter drier for commercial refrigeration, industrial refrigeration and air conditioning installation. They are manufactured in a sealed hermetic unit with their lens housed inside the brass body to avoid any possible refrigerant leaks. Freddox sight glasses are suitable with main refrigerants as mixtures,. Available with brazed or flare connections from 1/4” (6mm) to 1”1/8 (28mm).
