FREDDOX HERMETIC SIGHT GLASS HSG12S 1/2" ODF
Contact us for more information

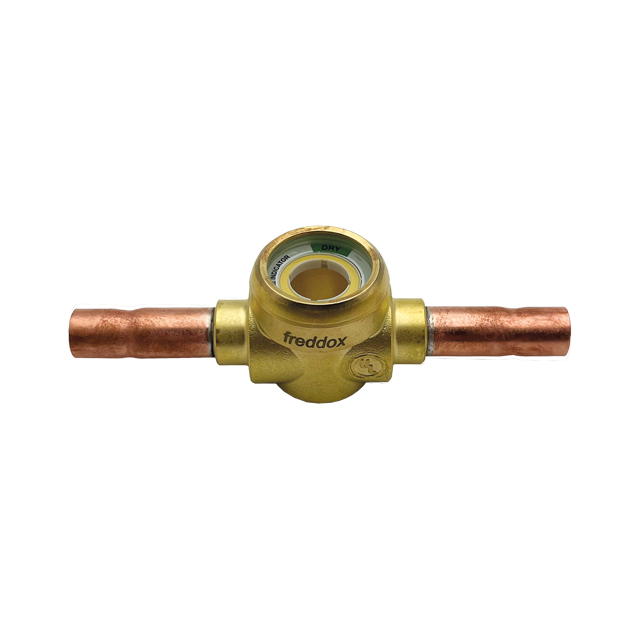

FREDDOX HERMETIC SIGHT GLASS HSG12S 1/2" ODF
FREDDOX
Product number:
FSG1124
| Product Group : | Freddox |
|---|
General Information
| Product Group : | Freddox |
|---|---|
| Model Number : | HSG12S |
| Type : | Sight Glass |
Connections
| Connection Size : | 1/2 in |
|---|---|
| Connection Type : | Solder |
| Inlet Connection Size : | 1/2 in |
| Inlet Connection Type : | Solder |
| Outlet Connection Size : | 1/2 in |
| Outlet Connection Type : | Solder |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Copper |
Measurements
| Height : | 34 mm |
|---|---|
| Length : | 117 mm |
| Net Weight : | 0.185 kg |
| Width : | 31.5 mm |
Pressure
| Max Operating Pressure : | 45 Bar |
|---|
Refrigerant
| Refrigerant : | HCFC, HFC, HFO |
|---|
Standards
| Approval Standard : | UKCA, UL |
|---|
Temperature
| Max Temperature : | +120 °C |
|---|---|
| Min Temperature : | -40 °C |
Valves
| Direction : | Bi-Flow |
|---|
