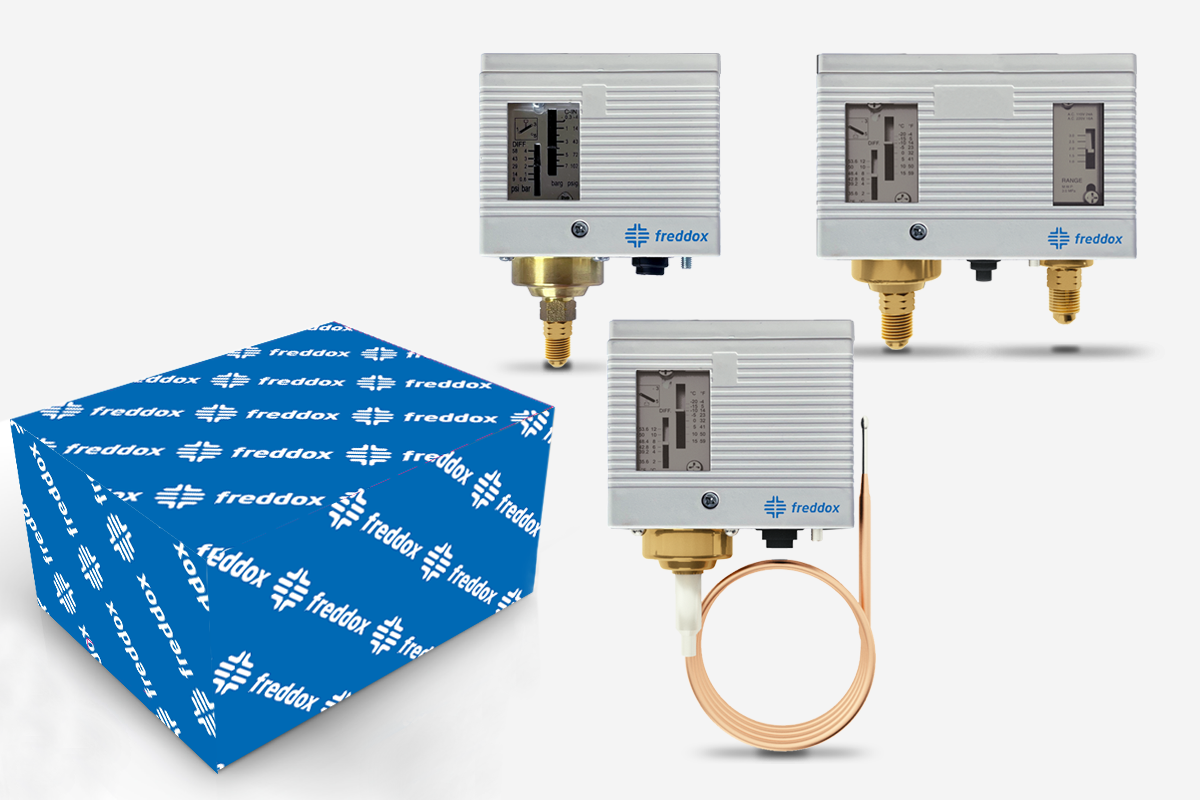

Freddox HP/LP Dual Pressure Switch Manual/Auto Reset
Contact us for more information
Freddox HP/LP Dual Pressure Switch Manual/Auto Reset
Product number:
FPS4016
| Product Group : | Freddox Pressure Switches |
|---|
General Information
| Product Group : | Freddox Pressure Switches |
|---|---|
| Reset : | Auto/Manual |
| Reset Left Side : | Auto |
| Reset Right Side : | Manual |
Additional Info
| Family : | Dual Pressure Contol |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Male 7/16-20 UNF |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | 16A |
| IP Class : | IP30 |
Measurements
| Depth : | 53 mm |
|---|---|
| Height : | 106 mm |
| Width : | 108 mm |
Pressure
| Diff Left Side : | 0.6-4 Bar |
|---|---|
| Diff Right Side : | 2 Bar |
| Regulating Left Side : | -0.3 - 7 Bar |
| Regulating Right Side : | 7 - 31 Bar |
Temperature
| Max Ambient Temperature : | 55 °C |
|---|---|
| Min Ambient Temperature : | -40 °C |
| File name | Extension | Size |
|---|---|---|
| Brochures | 720.64 KB |
