Description

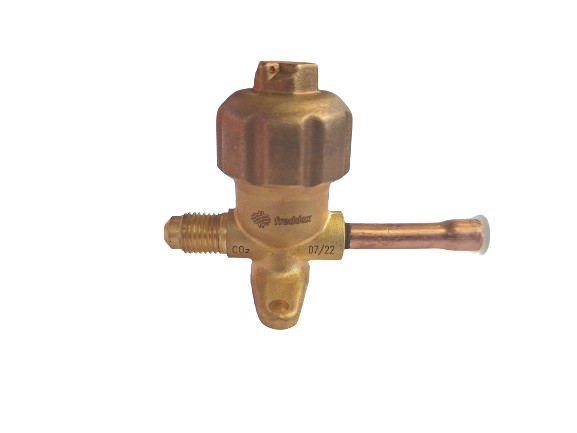

FREDDOX SERVICE VALVES- 1/4" ODS x 7/16"-20 UNF 45-120 Bar
Contact us for more information
FREDDOX SERVICE VALVES- 1/4" ODS x 7/16"-20 UNF 45-120 Bar
FREDDOX
Product number:
FBV0285
| Product Group : | Freddox Ball Valves |
|---|
General Information
| Product Group : | Freddox Ball Valves |
|---|---|
| Model Number : | 601006051 |
| Type : | SERVICE VALVES |
| Used For : | HVAC+R Industry |
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Brazed |
| Inlet Connection Size : | 1/4 in |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | K65 |
| Material Casing : | Brass |
Measurements
| Height : | 56 mm |
|---|---|
| Length : | 81.5 mm |
Pressure
| Max Operating Pressure : | 130 Bar |
|---|---|
| Max Pressure : | 130 Bar |
| Maximum Allowable Pressure : | 130 Bar |
| Test Pressure : | 325 Bar |
Refrigerant
| Refrigerant : | CO2 |
|---|
Standards
| UL Approved : | No |
|---|
Temperature
| Max Temperature : | 150 °C |
|---|---|
| Min Temperature : | -40 °C |
| Operating Temperature Range : | -40-150 °C |
| Temperature Range : | -40-150 °C |
Valves
| Fluid Group : | II |
|---|---|
| Schrader Valve : | Yes |
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 108.44 KB |
